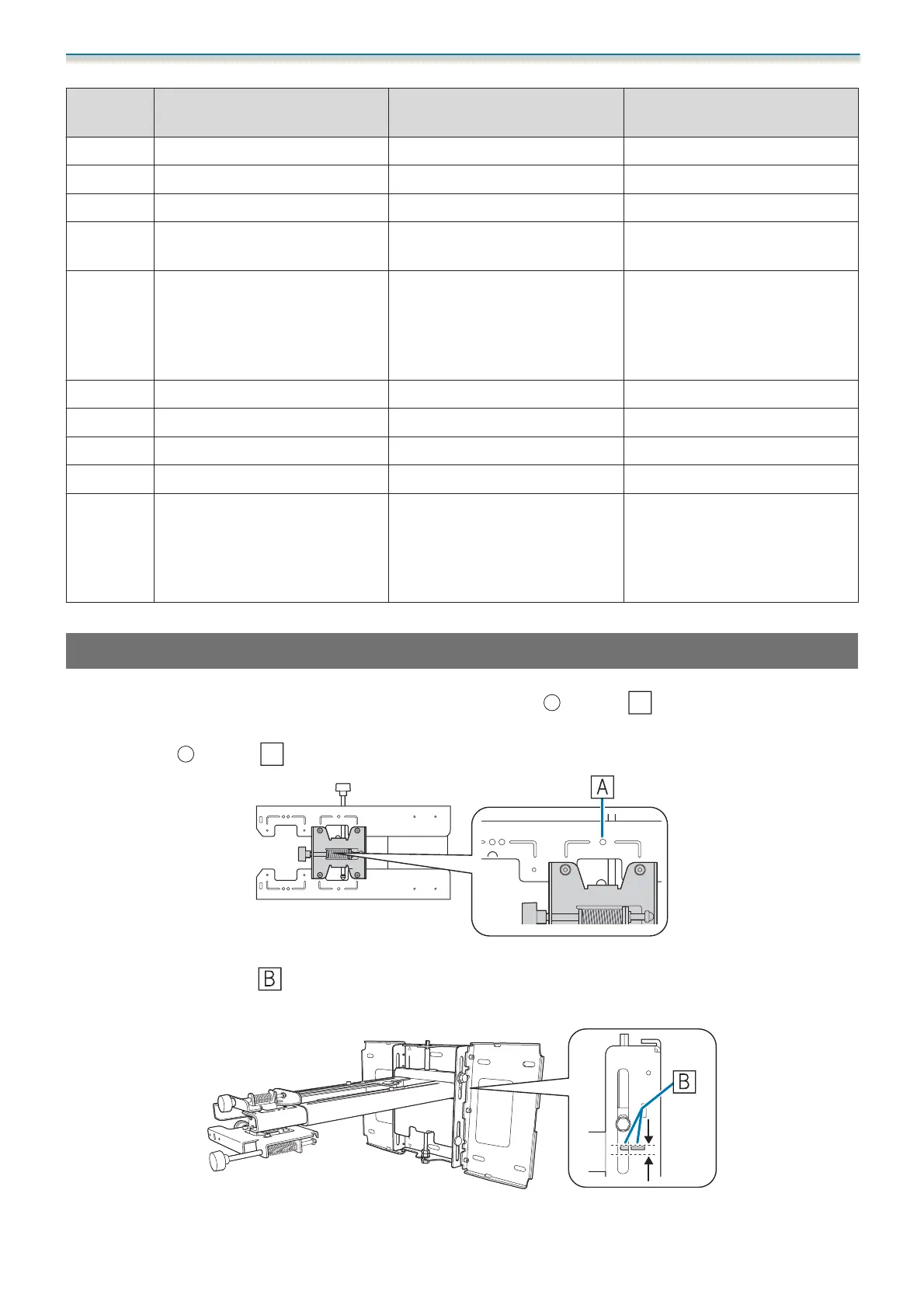

Installation Guide
13
Projected Im‐
age Size
16:10 4:3 16:9
79" - INTERWRITE Dual board 1279 -
80" - - RM Classboard 85
82" - - Hitachi Starboard FX-82Wide
85" TeamBoard RT TMWM7450EM - INTERWRITE BOARD 1085
INTERWRITE Dual board 1285
87" SMART Board
™
685
SMART BoardX 885
Promethean ActivBoard 387
Promethean ActivBoard 587
pro
--
88" Hitachi Starboard FX DUO-88W - -
89" - INTERWRITE Dual board 1289 -
93" - - PolyVision ENO 2810
94" - - SMART Board 690
95" - - INTERWRITE BOARD 1095
INTERWRITE Dual Board 1295
Promethean ActivBoard 395
Promethean ActivBoard 595
pro
When Projected Image is Smaller than 75 Inches
Mount the 3-axis adjustment unit at the position marked with a stamp (
ᵟ
).
The projection distance table provides the figures when mounting the 3-axis adjustment unit at the position
marked with a
stamp (
ᵟ
). The numbers on the arm slide scale (b) differ from the projection distance (a).
The distance (c) from the projected image to the wall plate is the number given when the vertical slide is set
to the standard position ( ).
Match the notch on the setting plate to the position of the stamp on the wall plate.
To Next Page
