Installation Guide
8
Specifications
Setting plate
Item Specification Remark Reference
Page
Setting plate weight Approx. 8.1 kg Setting plate (3.0 kg), 3-axis adjustment unit
(1.2 kg), slide plate (0.8 kg), wall plate (2.7 kg),
wall plate cover and end cap (0.4 kg)
Maximum load capacity 7 kg
Forward/backward slide ad‐
justment range
0 to 360 mm Arm slide adjustment range: 0 to 273 mm
Adjustment for 3-axis adjustment unit instal‐
lation position: 87 mm
See the fig‐
ure below
Vertical slide adjustment range ±38 mm See the fig‐
ure below
Horizontal roll adjustment
range
±3° Fine adjustments possible with adjustment
dial
s p.37
Horizontal rotation adjustment
range
±8° Fine adjustments possible with adjustment
dial
s p.37
Vertical tilt adjustment range ±3° Fine adjustments possible with adjustment
dial
s p.37
Horizontal slide adjustment
range
±45 mm See the fig‐
ure below
Wall plate

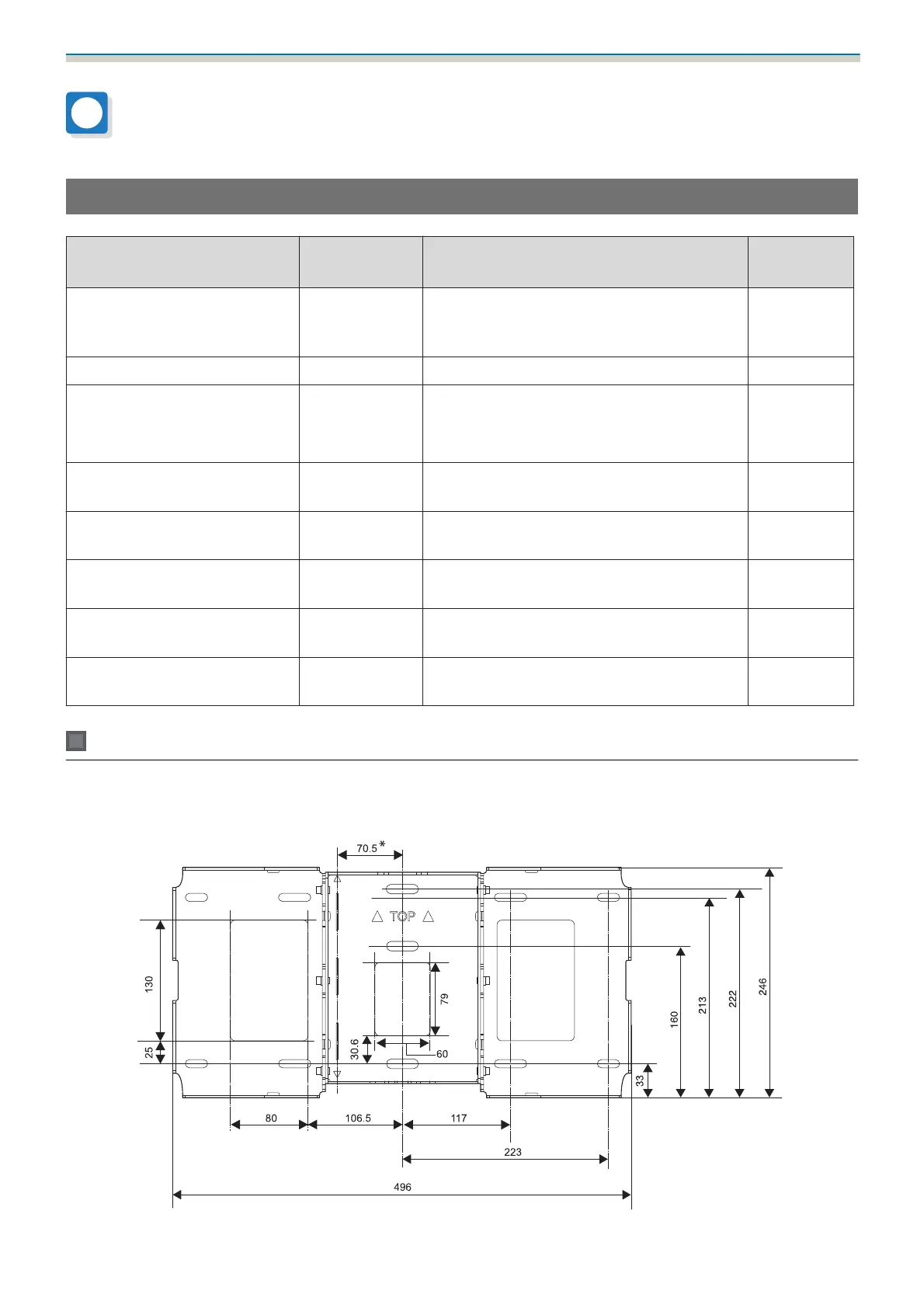

The following figure shows three wall plates connected to form one plate (separate when shipped).
[Unit: mm]
*
Offset value for the position of the center of the projected image and the center of the wall plate
