Projecting
Images
from
the
HDMI3
Port
with
the
Optional
Interface
Box
141
d

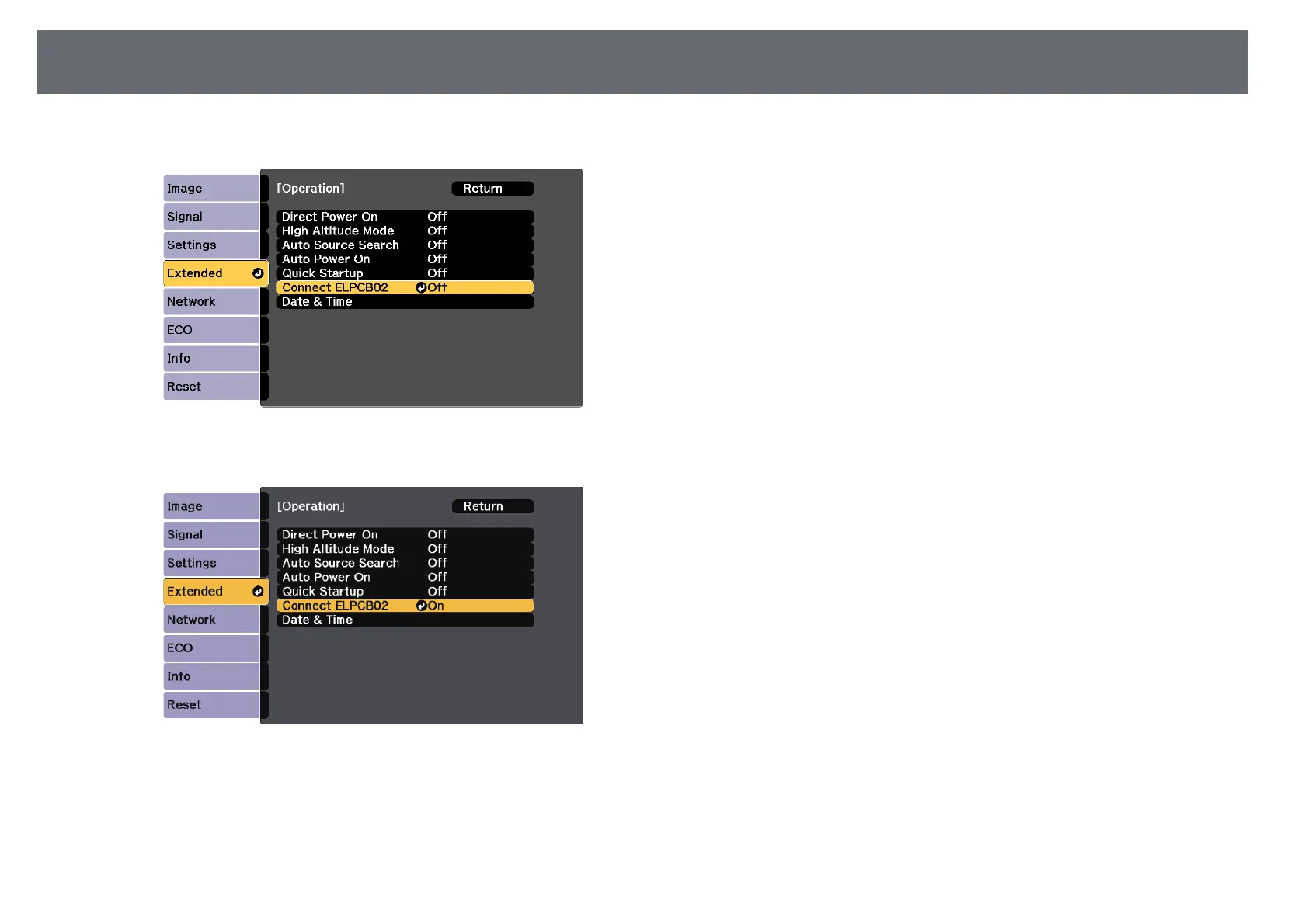

Select
Connect
ELPCB02
and
press
[Enter].
e
Select
On
and
press
[Enter].
The
input
source
switches
between
HDMI2
and
HDMI3
every
time
you
press
the
[HDMI2]
button
on
interface
box.
f
Press
[Menu]
or
[Esc]
to
exit
the
menus.
140
142
