Epson EB-710Ui - External Dimensions

To Next Page

To Previous Page

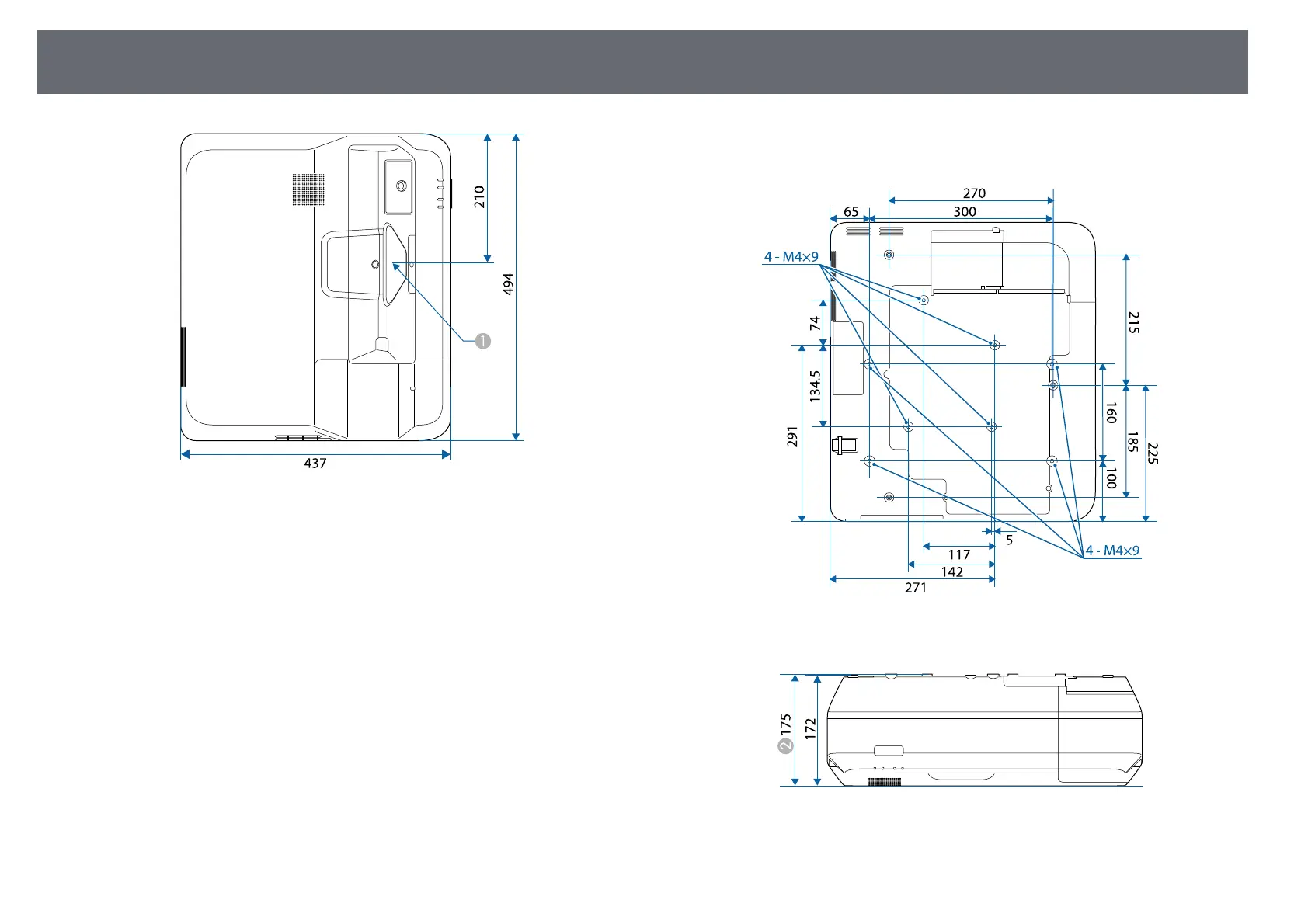

External Dimensions

251

Center of the projection window

Without feet

Distance from the top to the ceiling mount fixing points
