Projector Parts and Functions
15
Name Function
C
Obstacle sensor Detects obstacles that are interfering with the
projection area.
D
Remote receiver Receives signals from the remote control.
E
Projection window Images are projected from here.
Warning
• Do not look into the projection window
while projecting.
• Do not place any objects or put your hand
near the projection window. It could cause
burns, fire, or the object to warp because this
area reaches a high temperature due to the
concentrated projection light.
F
Interactive pen
receiver (EB‑710Ui)
Receives signals from the interactive pen.
G
Control panel Operates the projector.
H
Security slot The security slot is compatible with the Microsaver
Security System manufactured by Kensington.
I
Air filter cover Open to access the air filter or focus lever.
J
Focus lever Adjusts the image focus.
Open the air filter cover to operate.
K
Air intake vent (air
filter)
Takes in air to cool the projector internally.
gg Related Links
• "Installing a Security Cable" p.146
• "Focusing the Image" p.53

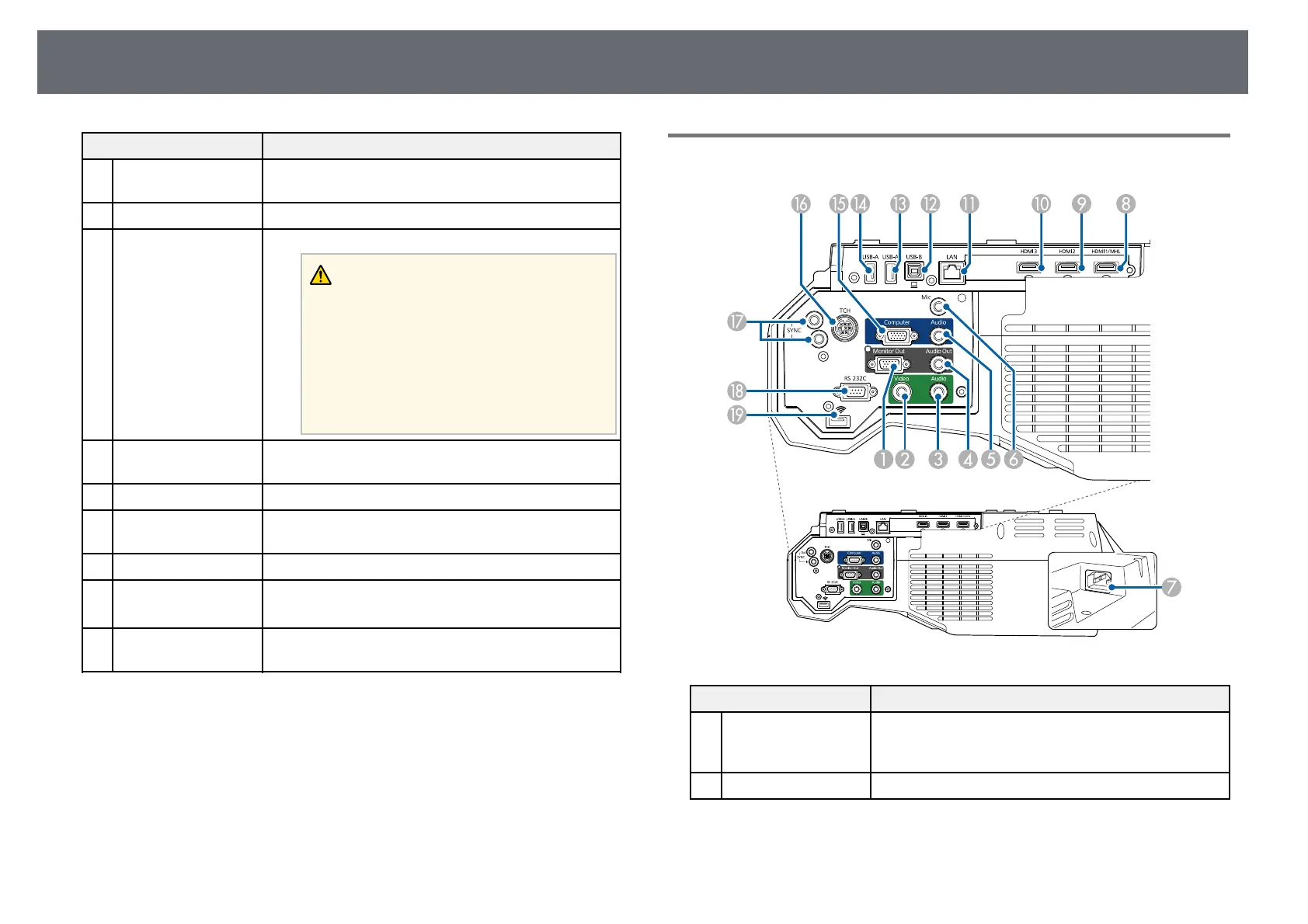

Projector Parts - Interface
Name Function
A
Monitor Out port Outputs analog RGB signals input from the Computer
port to an external monitor. You cannot output signals
input from other ports or component video signals.
B
Video port Inputs composite video signals from video sources.
