Focusing the Image

You can display the test pattern, and then adjust the focus.

We recommend adjusting the focus at least 10 minutes after you start

projecting, because images are not stable right after turning on the

projector.

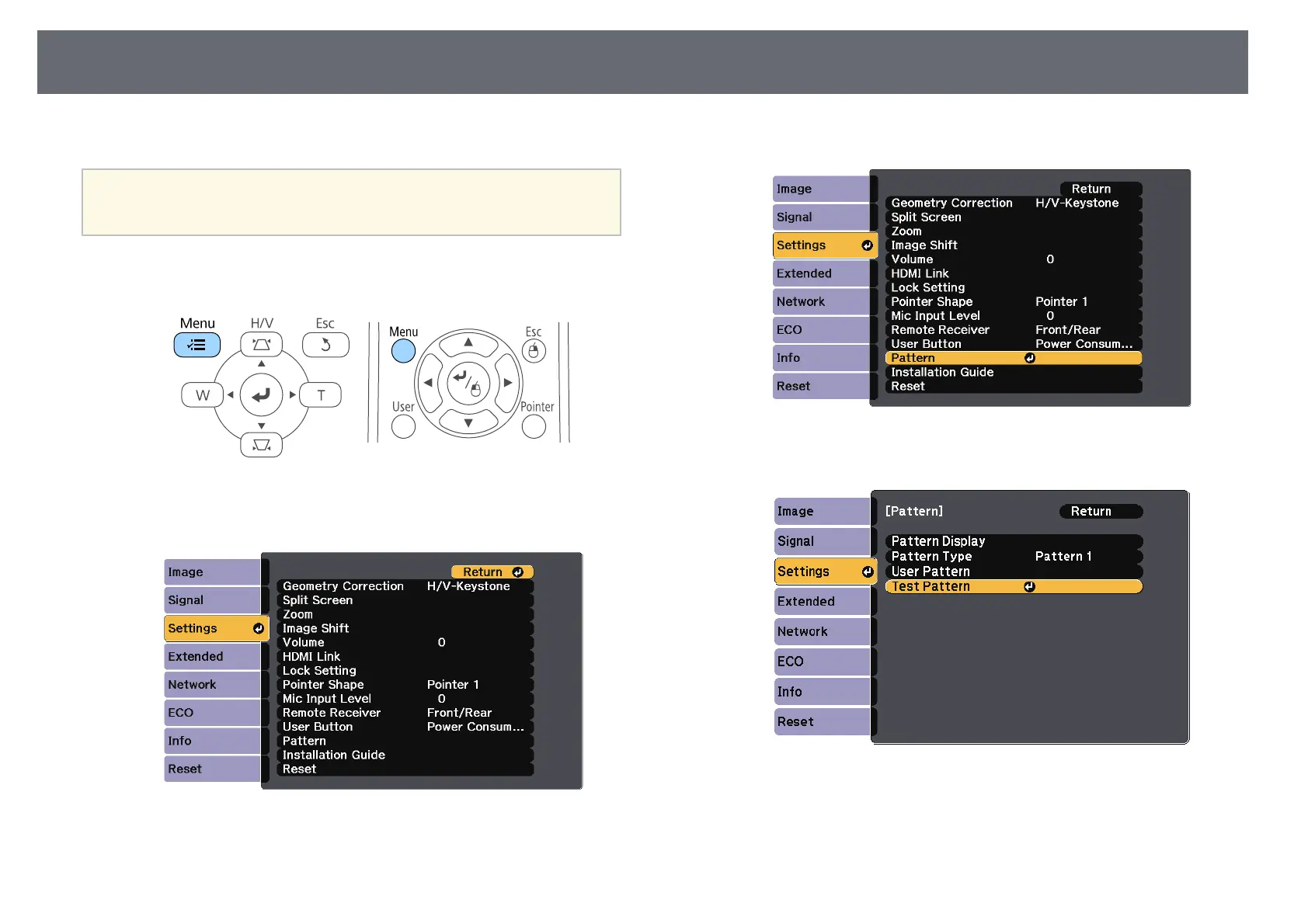

Press the [Menu] button on the control panel or remote control.

Select the Settings menu and press [Enter].

Select Pattern and press [Enter].

Select Test Pattern and press [Enter].
