Epson EB-710Ui - Page 54

To Next Page

To Previous Page

Focusing the Image

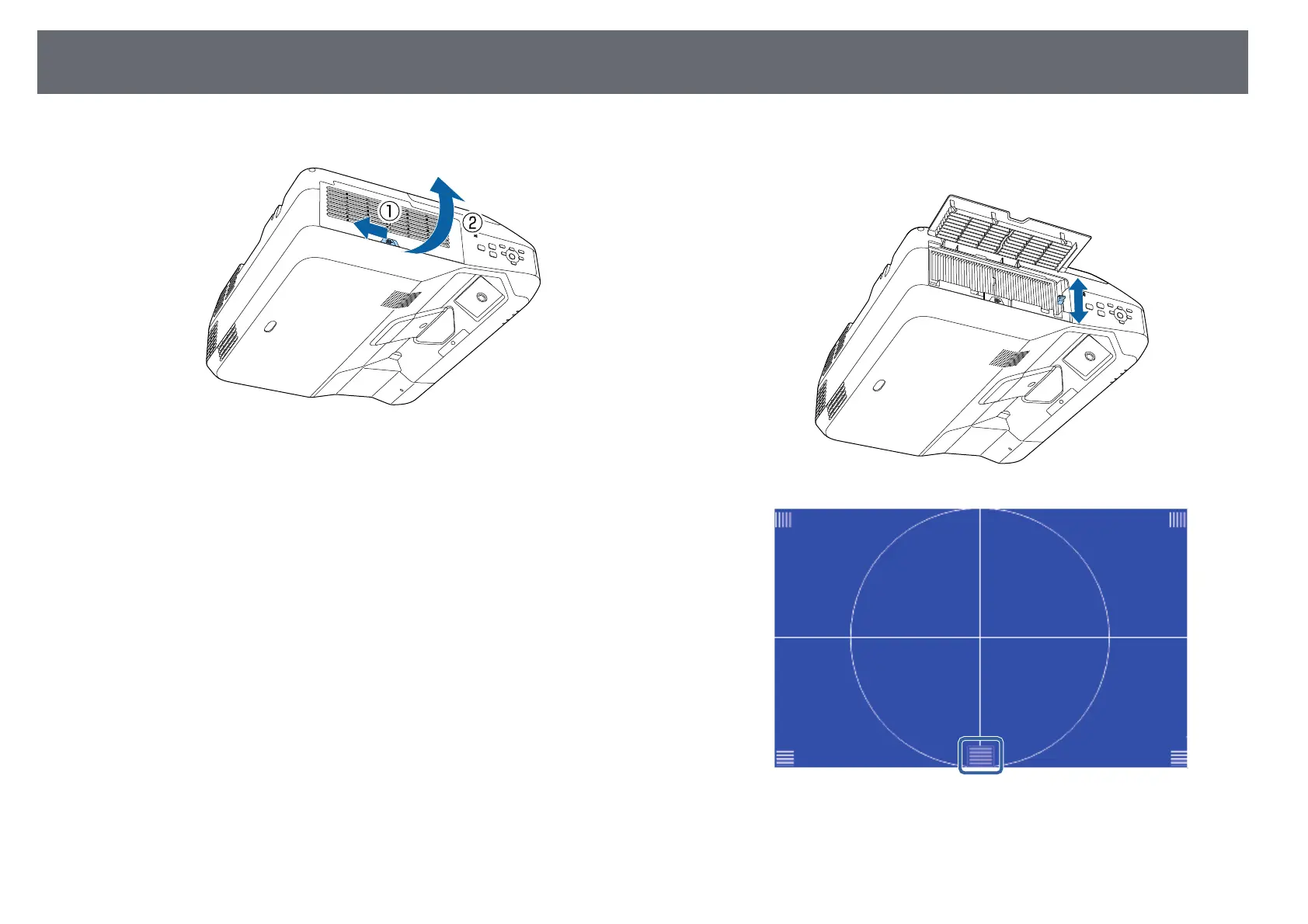

Open the air filter cover.

Move the focus lever and focus to the center-bottom of the projected

screen.

Main Page

Default Chapter2
