Replacing the Interactive Pen Tip

223

Replacing the Soft Pen Tip with the Hard Pen Tip

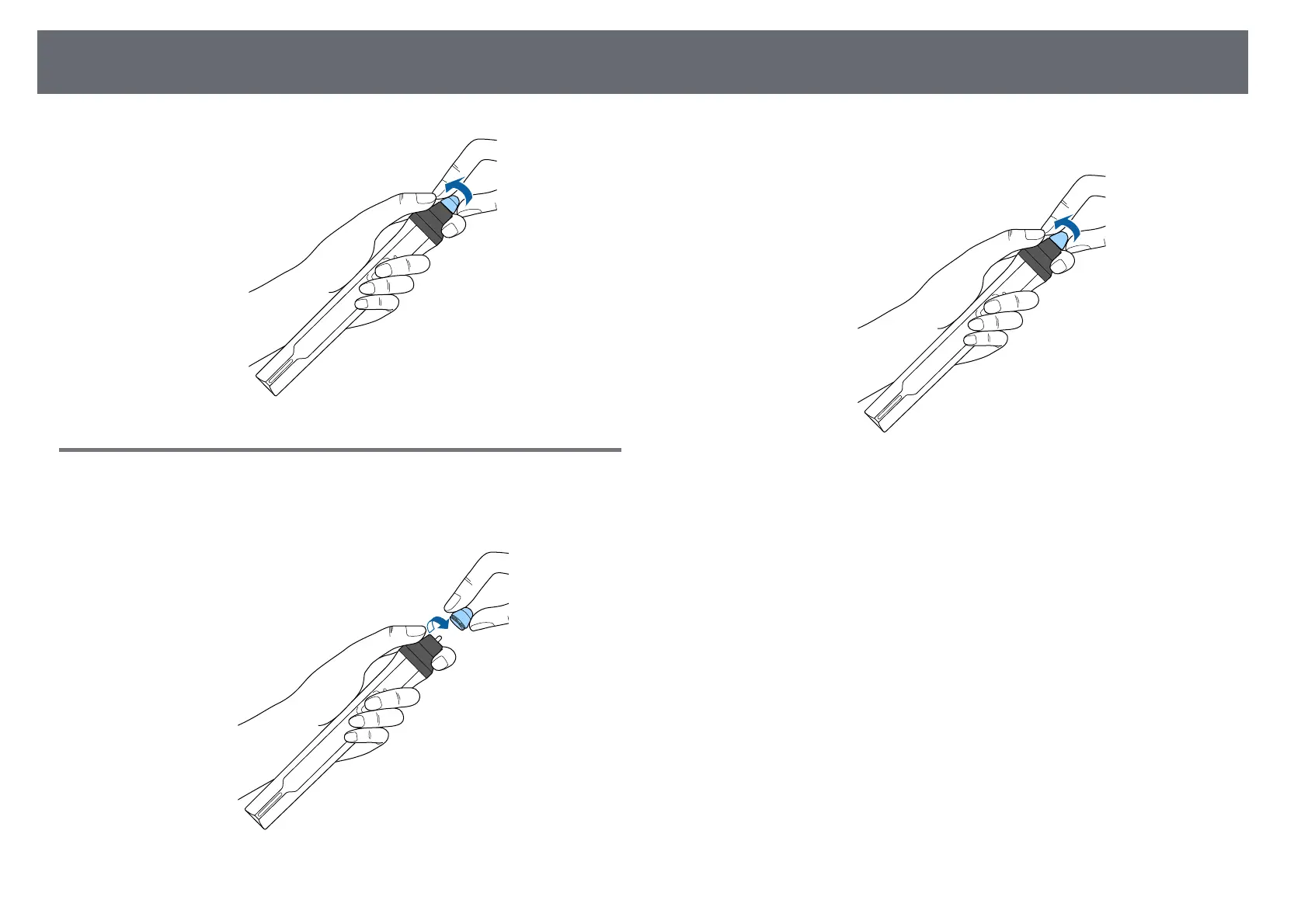

Twist off the tip of the interactive pen to remove it.

Twist on the hard pen tip.
