Lights and Buttons

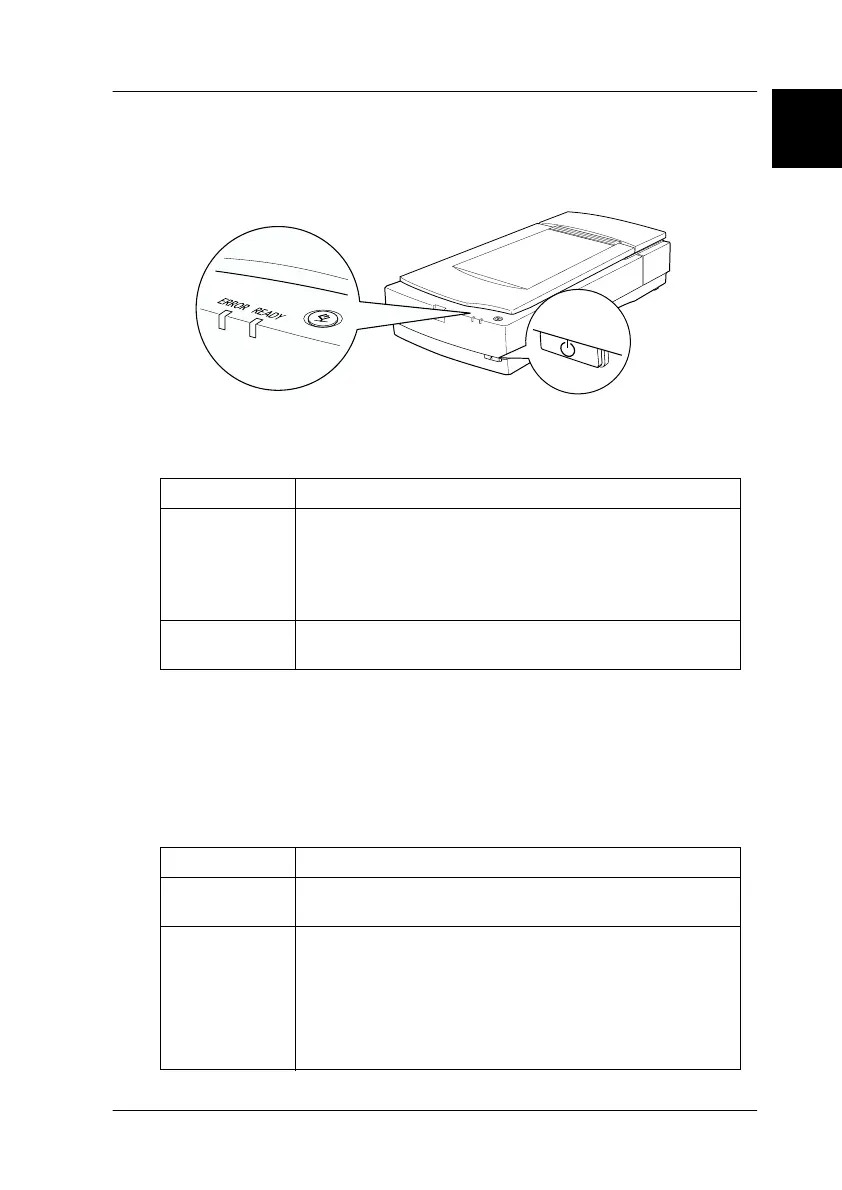

The scanner has two indicator lights and two buttons.
Lights
Note:
For details on the types of errors indicated by these lights, see “Error
Indicators” in the online Reference Guide.
Buttons
Light Functions
READY Turns on when the scanner is ready for scanning, and
flashes when the scanner is warming up and during
scanning.
In combination with the ERROR light, turns on, flashes,
or turns off to indicate a variety of error conditions.
ERROR In combination with the READY light, turns on, flashes,
or turns off to indicate a variety of error conditions.
Button Function
P
Operate
Turns the scanner on and off.
a
Start
When the scanner is connected directly to your
computer, can open an application of your choice, or
can scan and send the scanned image to a specified
application, depending on your operating system and
installed software. In a network environment, this
button starts the same operation as the Scan button in
EPSON TWAIN Pro Network.

Epson Expression 1680 Specifications

Scanning Specifications

optical resolution	1600 x 3200 dpi
maximum resolution	13, 600 x 18, 720 dpi with interpolation
effective pixels	13, 600 x 18, 720 pixels (1600 dpi)
color depth	48 bits per pixel internal/external
grayscale depth	16 bits per pixel internal/external
scanning speed (color, 1600 dpi, draft mode)	9.2 msec/line (approx.)
scanning speed (grayscale/monochrome, 1600 dpi, draft mode)	3.1 msec/line (approx.)

Operating Environment

temperature operating range	41ºF to 95ºF (5ºC to 35ºC)
humidity operating range	10% to 80% (no condensation)
humidity storage range	10% to 85% (no condensation)

Power

voltage	AC 100V-120V, 220V-240V
frequency	50-60Hz
power consumption (operating without optional unit)	60W
power consumption (operating with optional unit)	75W
power consumption (standby without optional unit)	10W

Weight and Dimensions

maximum read area	8.5" x 11.7" (216mm x 297mm)
width	13.1" (332mm)
depth	22.1" (562mm)
height	5.2" (133mm)
weight	18.7 lb (8.5 kg approx.)
