Connecting the scanner
Connect the scanner to your computer or to another SCSI device
as described below.
Note:
The types of connectors needed on the SCSI interface cable varies
depending on the maker of your SCSI device and SCSI interface board.
1. Make sure the scanner, computer, and all other SCSI devices
are turned off and unplugged from the power source.
c
Caution:
Do not connect the scanner to the computer or other devices
while they are turned on as damage may occur.

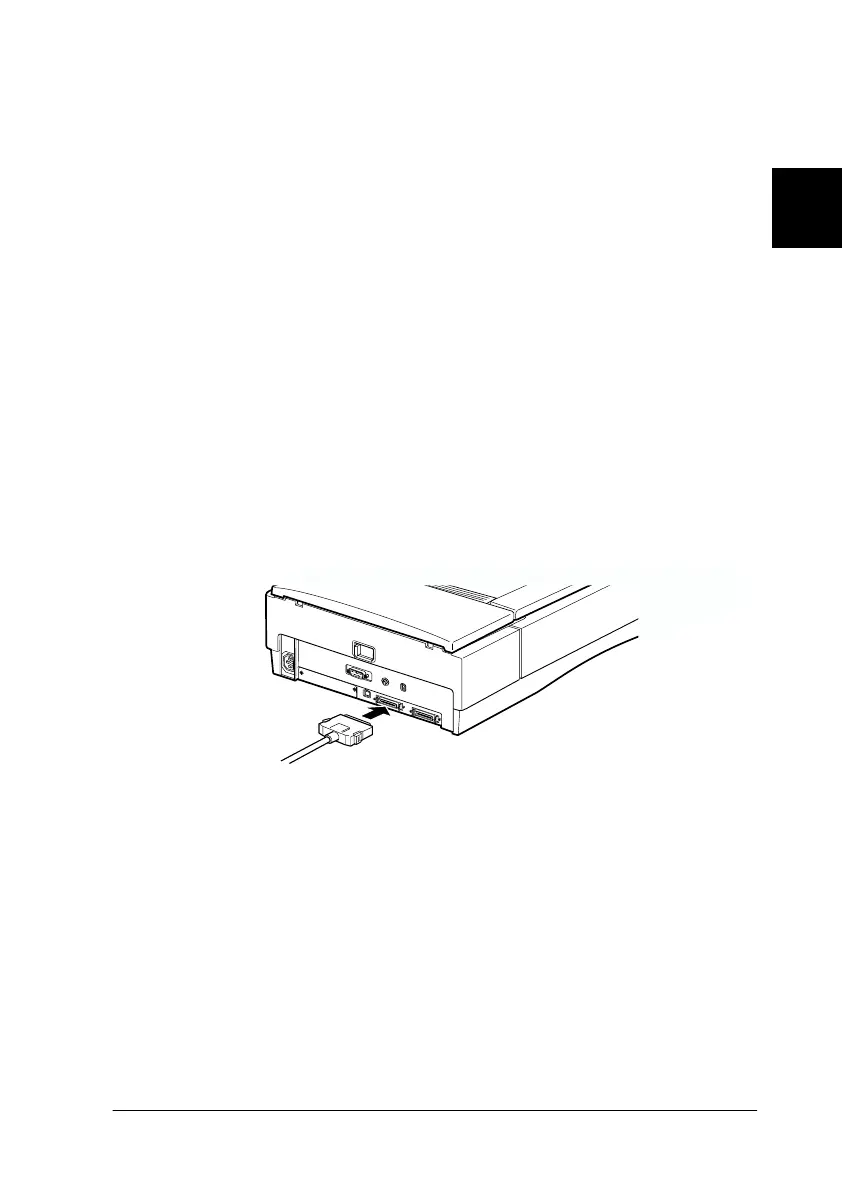

2. Connect one end of the interface cable to one of the scanner
SCSI connectors until the locks on both sides snap in.
Note:
❏ To connect the scanner to a SCSI device other than the
computer, the length of cable in the daisy chain must not exceed
6 meters; otherwise the system may not work properly.
❏ To connect the scanner to a PC using SCSI-2, the length of the
cable must not exceed 3 meters.
❏ Make sure no other interface is used.
