Setting Up the Scanner
2-11
R4C6740
Setup Guide Rev. C
SETUP.FM A5 size
10/26/00
R
Proof Sign-off:
K.Pipa
J.Miyakoshi
K.Norum
* Scanner will not work if selected.
c
Caution:
Do not set the SCSI ID to an ID number that is already assigned
to another device. Otherwise the computer, scanner, and other
devices will not operate properly.

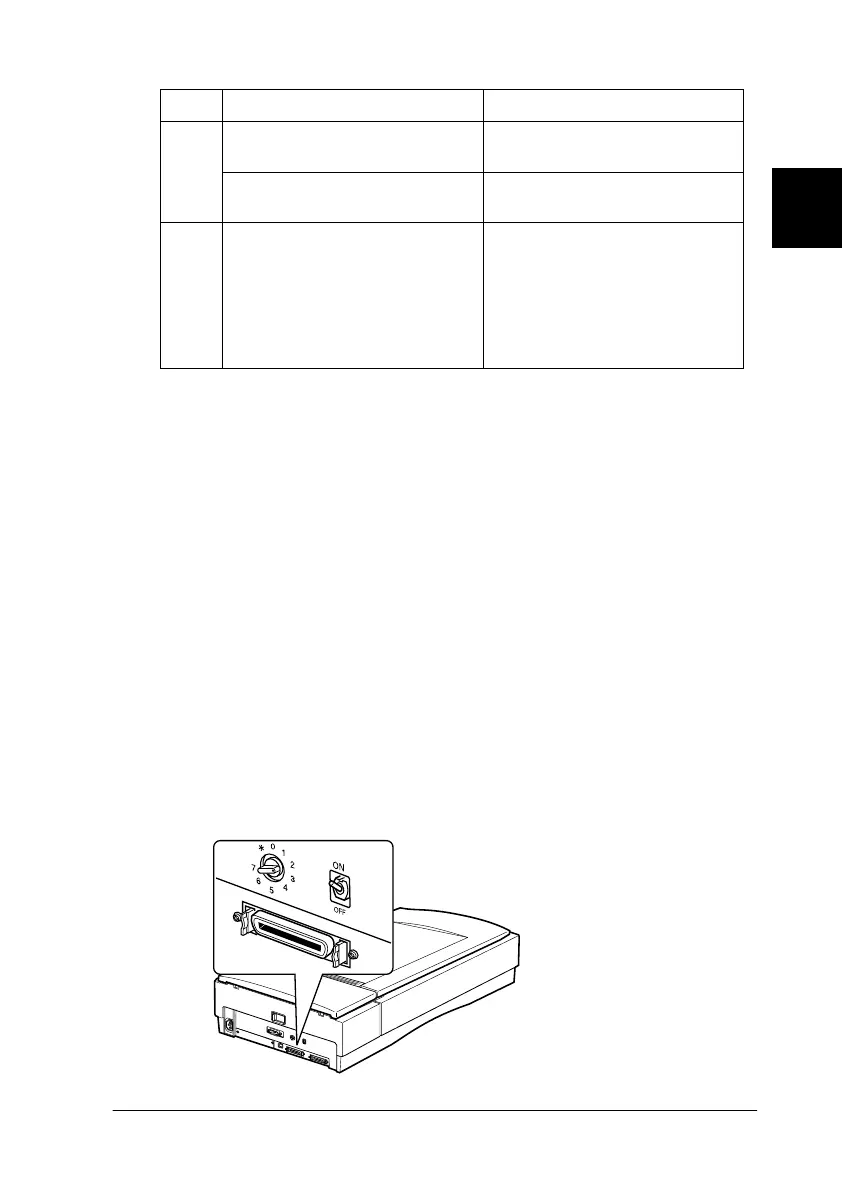

Setting the terminator switch
The scanner has a built-in terminator, which allows SCSI devices
to communicate properly with each other. Depending on your
computer system, you may need to change the terminator switch
setting.
Note:
Do not use an external terminator.
7 Not available for Macintosh Always used for the
Macintosh itself
May not be available for
PCs.
Usually used for the PC’s SCSI
board
✽
Not available For transportation purposes.*
See ”Transporting the
Scanner and the
Transparency Unit” in the
Maintenance and
Troubleshooting section of
the online
Reference Guide
.
ID Availability Description
The terminator switch is located
at the rear of the scanner.

Epson Expression 1680 Specifications

Scanning Specifications

optical resolution	1600 x 3200 dpi
maximum resolution	13, 600 x 18, 720 dpi with interpolation
effective pixels	13, 600 x 18, 720 pixels (1600 dpi)
color depth	48 bits per pixel internal/external
grayscale depth	16 bits per pixel internal/external
scanning speed (color, 1600 dpi, draft mode)	9.2 msec/line (approx.)
scanning speed (grayscale/monochrome, 1600 dpi, draft mode)	3.1 msec/line (approx.)

Operating Environment

temperature operating range	41ºF to 95ºF (5ºC to 35ºC)
humidity operating range	10% to 80% (no condensation)
humidity storage range	10% to 85% (no condensation)

Power

voltage	AC 100V-120V, 220V-240V
frequency	50-60Hz
power consumption (operating without optional unit)	60W
power consumption (operating with optional unit)	75W
power consumption (standby without optional unit)	10W

Weight and Dimensions

maximum read area	8.5" x 11.7" (216mm x 297mm)
width	13.1" (332mm)
depth	22.1" (562mm)
height	5.2" (133mm)
weight	18.7 lb (8.5 kg approx.)
