Epson Expression 1680 Setup Guide

2-20
Setting Up the Scanner
R4C6740
Setup Guide Rev. C
SETUP.FM A5 size
10/26/00
L
Proof Sign-off:
K.Pipa
J.Miyakoshi
K.Norum
Connecting the scanner
Follow these steps to connect the scanner to your computer or
USB hub.
Note for Windows 98 users:
If you want to connect the scanner to a different USB port on your
computer or hub after installing the scanner software, you must
uninstall the scanner software before switching ports, then reinstall the
software once the scanner is connected to the new port. Follow the
instructions in “When changing the USB port in Windows 98” on page
2-21.

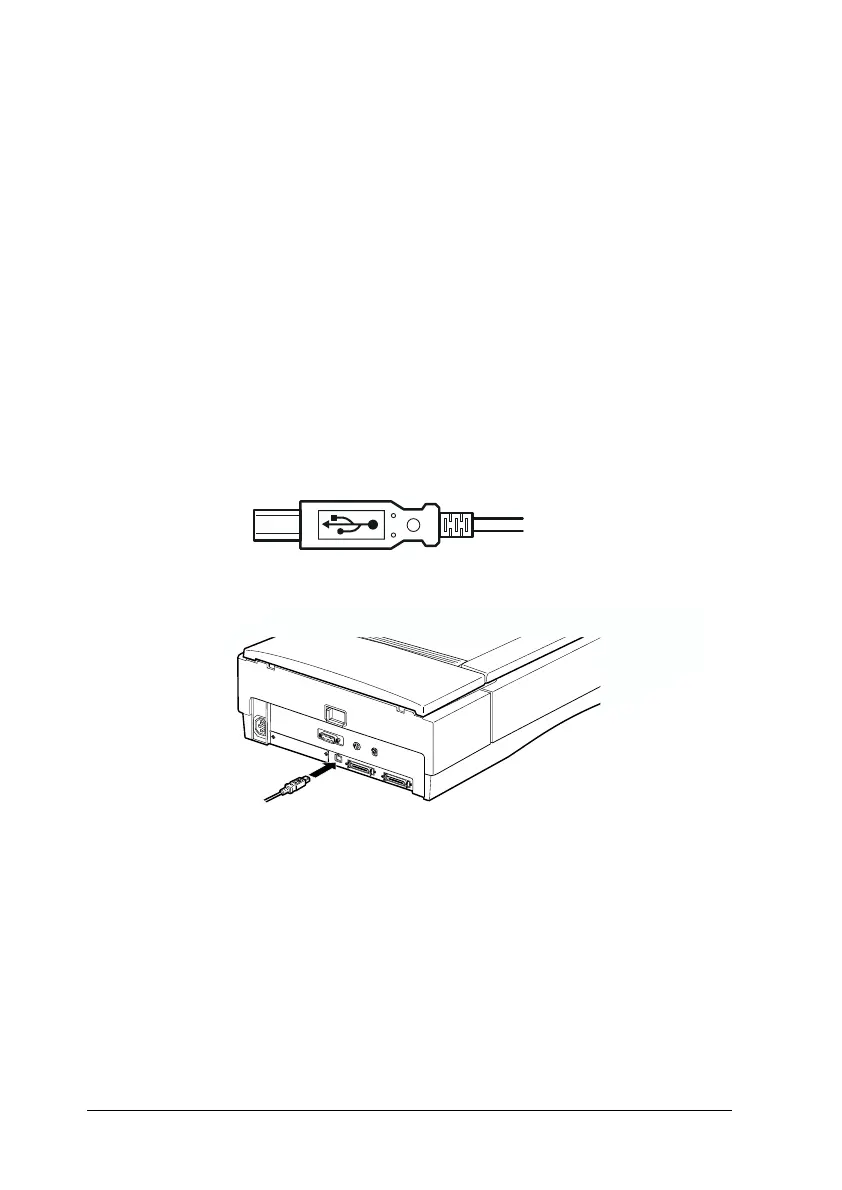

1. Connect the end of the cable shown below to the USB port on
the back of the scanner.

Epson Expression 1680 Specifications

Scanning Specifications

optical resolution	1600 x 3200 dpi
maximum resolution	13, 600 x 18, 720 dpi with interpolation
effective pixels	13, 600 x 18, 720 pixels (1600 dpi)
color depth	48 bits per pixel internal/external
grayscale depth	16 bits per pixel internal/external
scanning speed (color, 1600 dpi, draft mode)	9.2 msec/line (approx.)
scanning speed (grayscale/monochrome, 1600 dpi, draft mode)	3.1 msec/line (approx.)

Operating Environment

temperature operating range	41ºF to 95ºF (5ºC to 35ºC)
humidity operating range	10% to 80% (no condensation)
humidity storage range	10% to 85% (no condensation)

Power

voltage	AC 100V-120V, 220V-240V
frequency	50-60Hz
power consumption (operating without optional unit)	60W
power consumption (operating with optional unit)	75W
power consumption (standby without optional unit)	10W

Weight and Dimensions

maximum read area	8.5" x 11.7" (216mm x 297mm)
width	13.1" (332mm)
depth	22.1" (562mm)
height	5.2" (133mm)
weight	18.7 lb (8.5 kg approx.)
