Epson G3 Series User Manual

Maintenance 3. Covers
G3 Rev.14 91

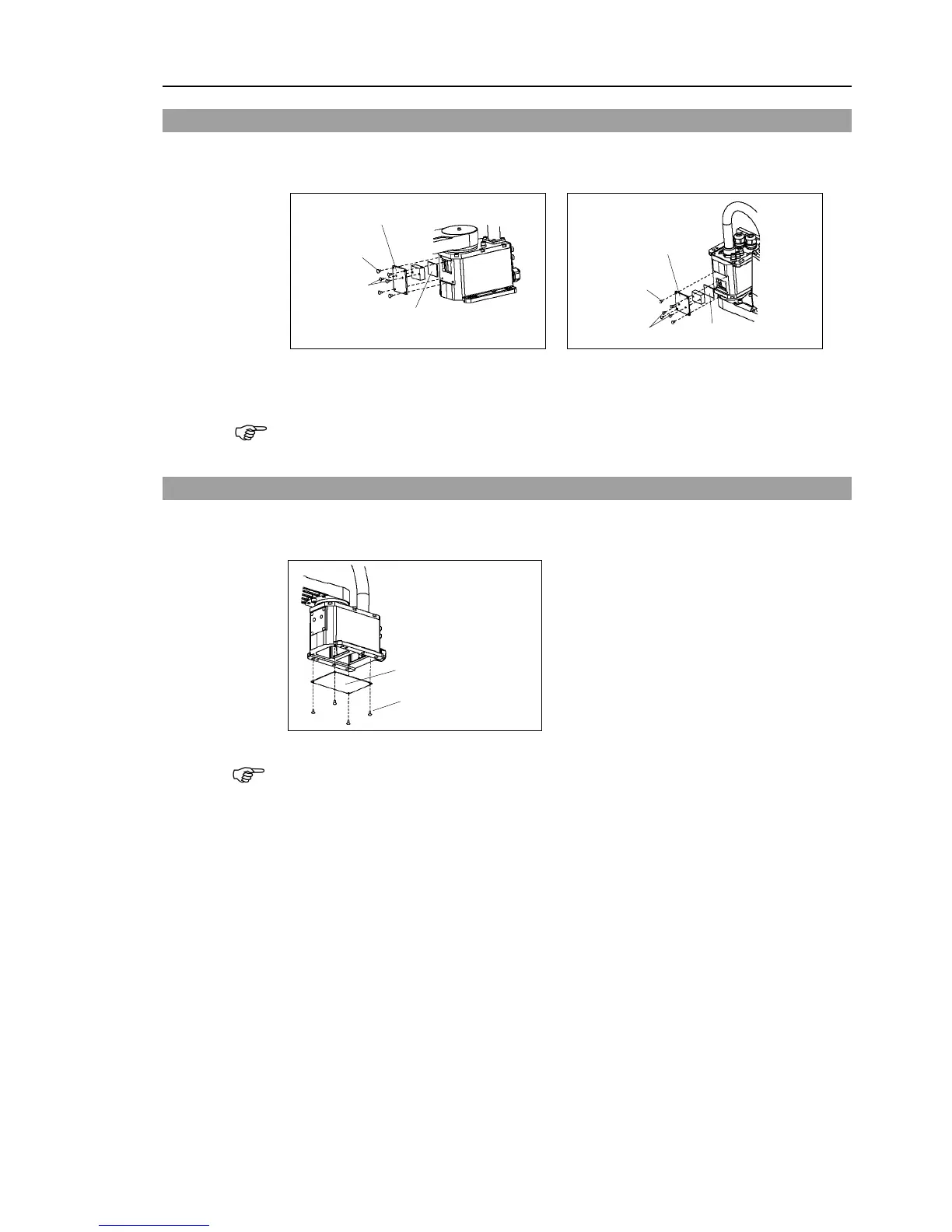

3.7 Heatsink Plate
Unscrew the heatsink plate mounting bolts to remove the plate.
G3
-**1* Table Top Mounting
G3
-**1*M Multiple Mounting
Truss:
4-M4×8
Heatsink plate
Truss:
2-M4×8
Heat release sheet
Truss:
4-M4×8
Heatsink plate
Truss:
2-M4×8
Heat release sheet
Be careful of the Heat release sheet at the side of the Motor, and be sure to keep it.
Be careful when you mount the Heatsink plate without the Heat release sheet, it may cause
the malfunction or break by the heat from the Motor.
3.8 Base Bottom Cover
Unscrew the base bottom cover mounting bolts and remove the cover.
G3
-**1C* Cleanroom-model
Truss:
4-M4×8
Base bottom cover
A base bottom cover is not installed to G3-**1S* (Standard-model).

NOTE

NOTE
