Epson G3 Series

Setup & Operation 4. Setting of End Effectors
G3 Rev.14 53
4.2 Attaching Cameras and Valves

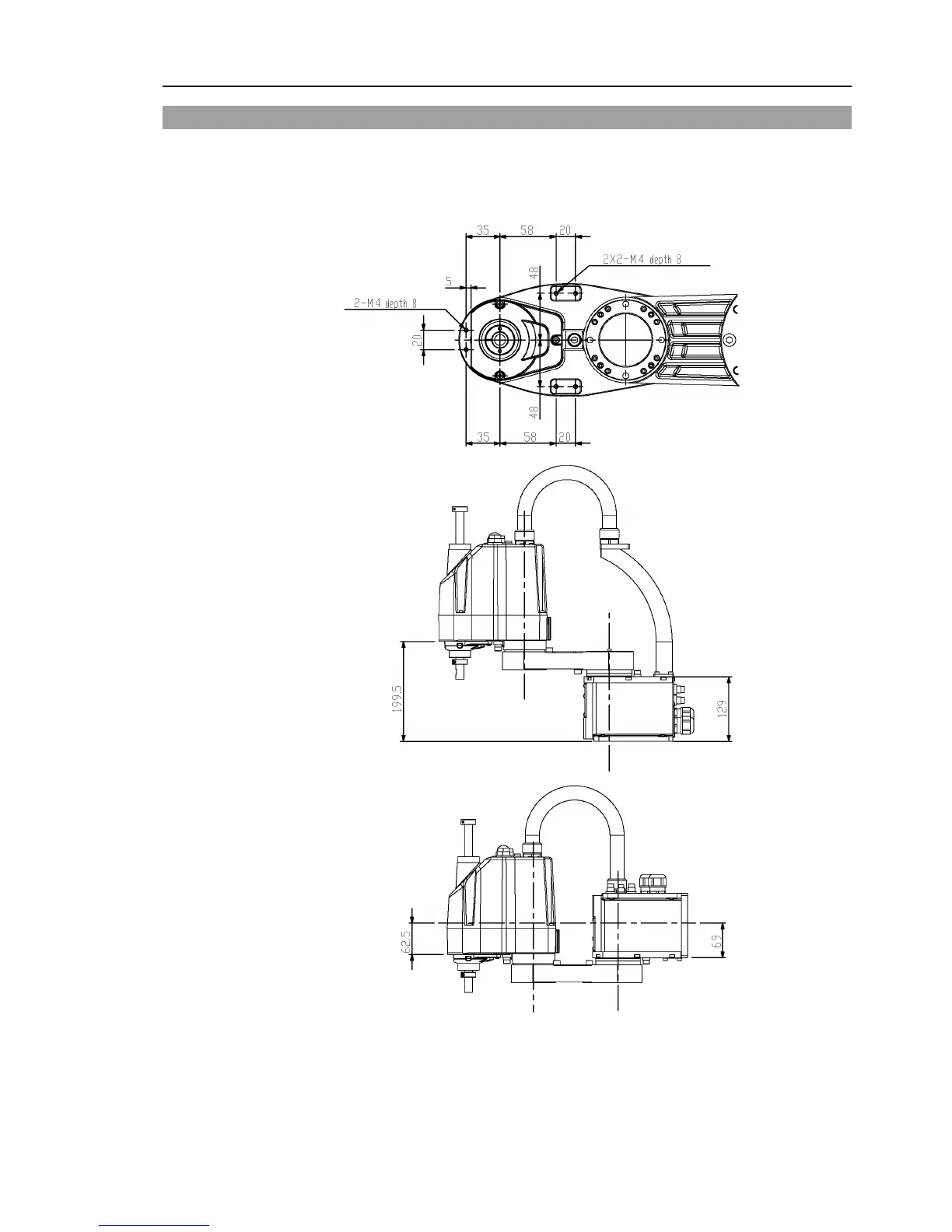

Arm #2 has threaded holes as shown in the figure below. Use these holes for attaching
cameras, valves, and other equipment. [Unit: mm]
Common Dimensions
Multiple Mounting
Table Top Mounting
From the base mounting face
From the reference hole
From the base mounting face
