Epson G3 Series - 15. Maintenance Parts List

Maintenance 14. Calibration
G3 Rev.14 173

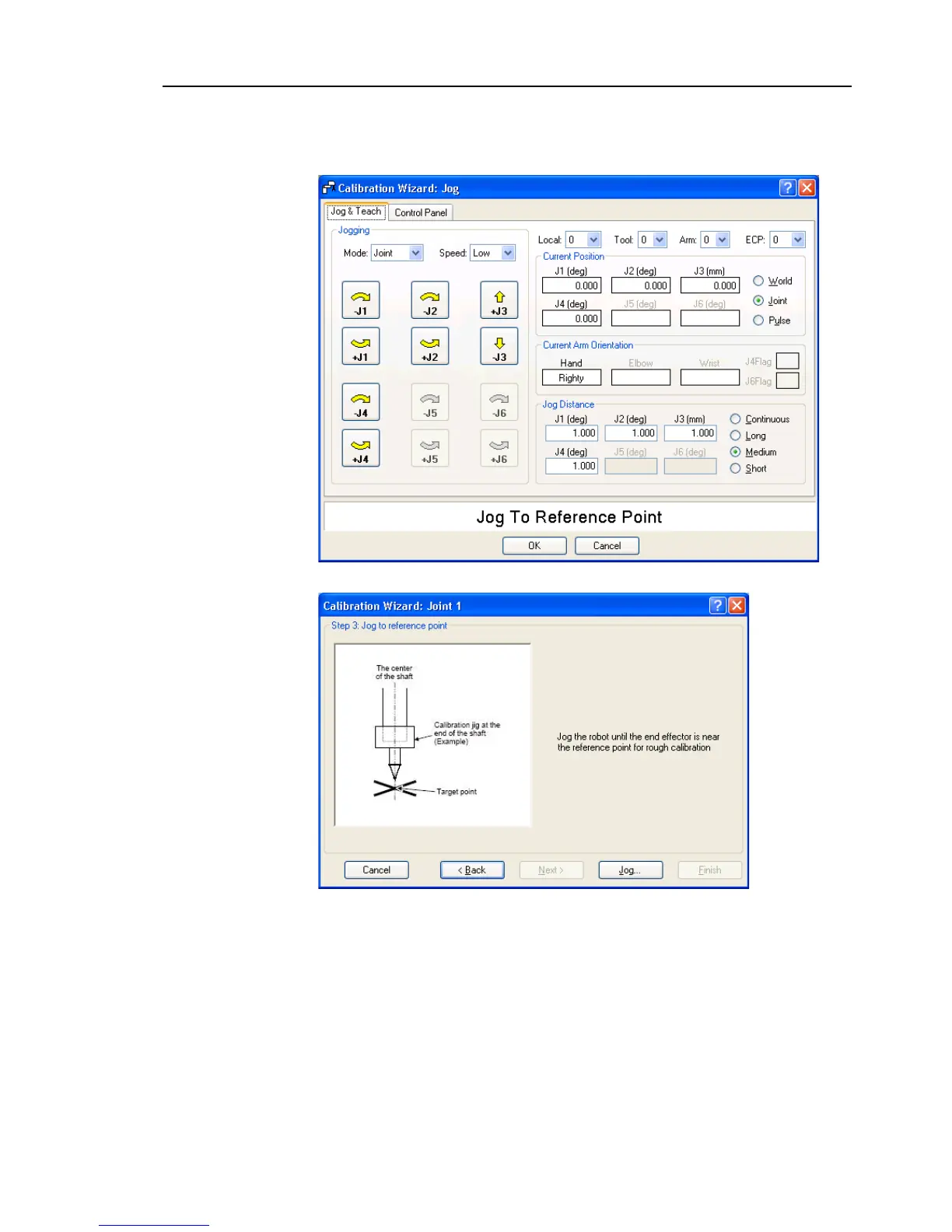

(8) Jog the end effector to approximate reference point in the [Jog & Teach] dialog for
rough calibration. Then click the <OK> button.
* Before operating the robot, open the [Jog & Teach] tab and execute <Motor ON>.
(9) Click the <Next> button.
