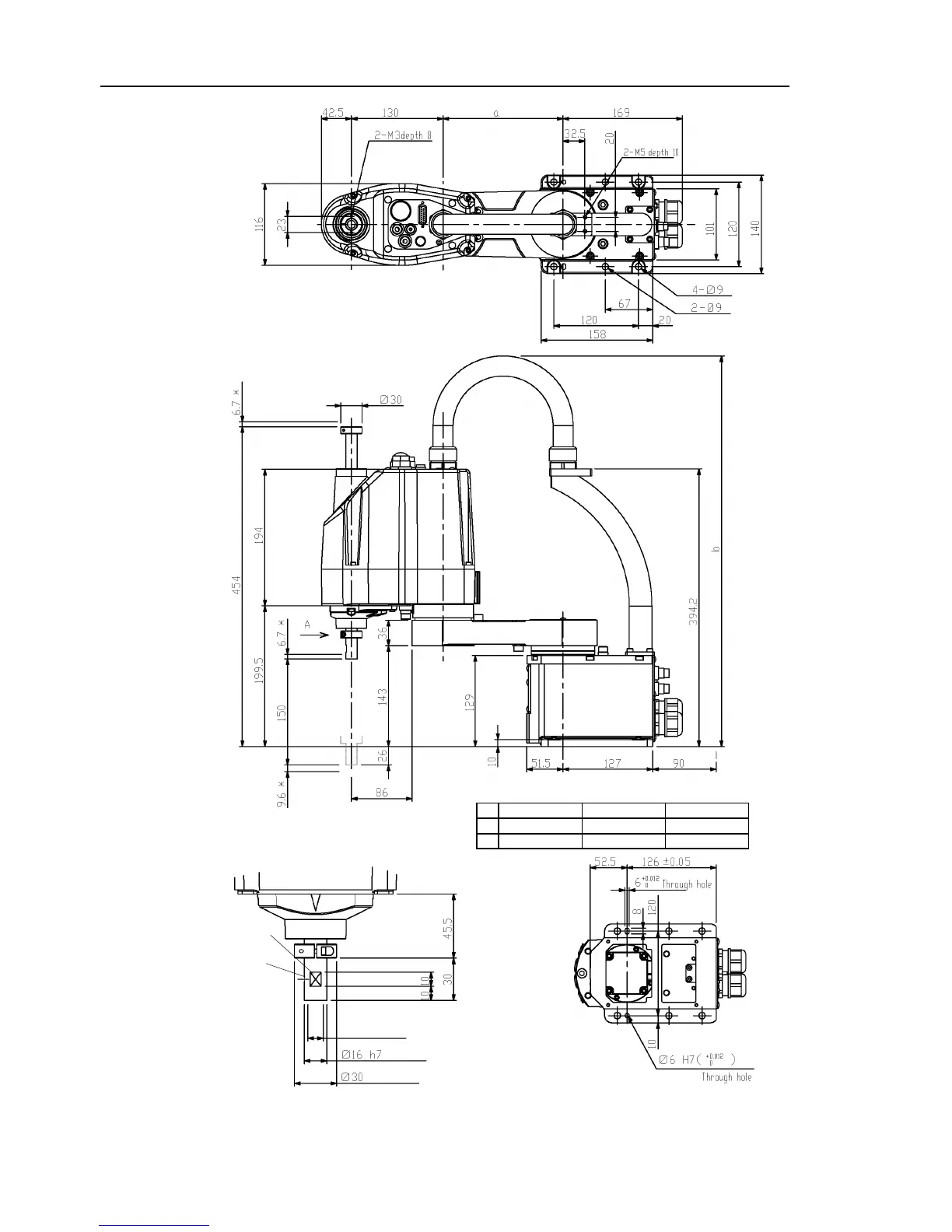

Setup & Operation 2. Specifications
20 G3 Rev.14
shaft diameter
G3-251S
G3-301S
G3-351S
a
120
170
220
b
Max.545
Max.575
Max.595
Max.ø11 through hole
mechanical stop diameter
Conical hole
Ø3,90°
1
mm flat cut
Detail of “A”
(Calibration point position of Joints #3 and #4)
or more
Space for cables
(*) indicates the stroke margin
by mechanical stop.
Reference through hole
(View from the bottom of the base)
