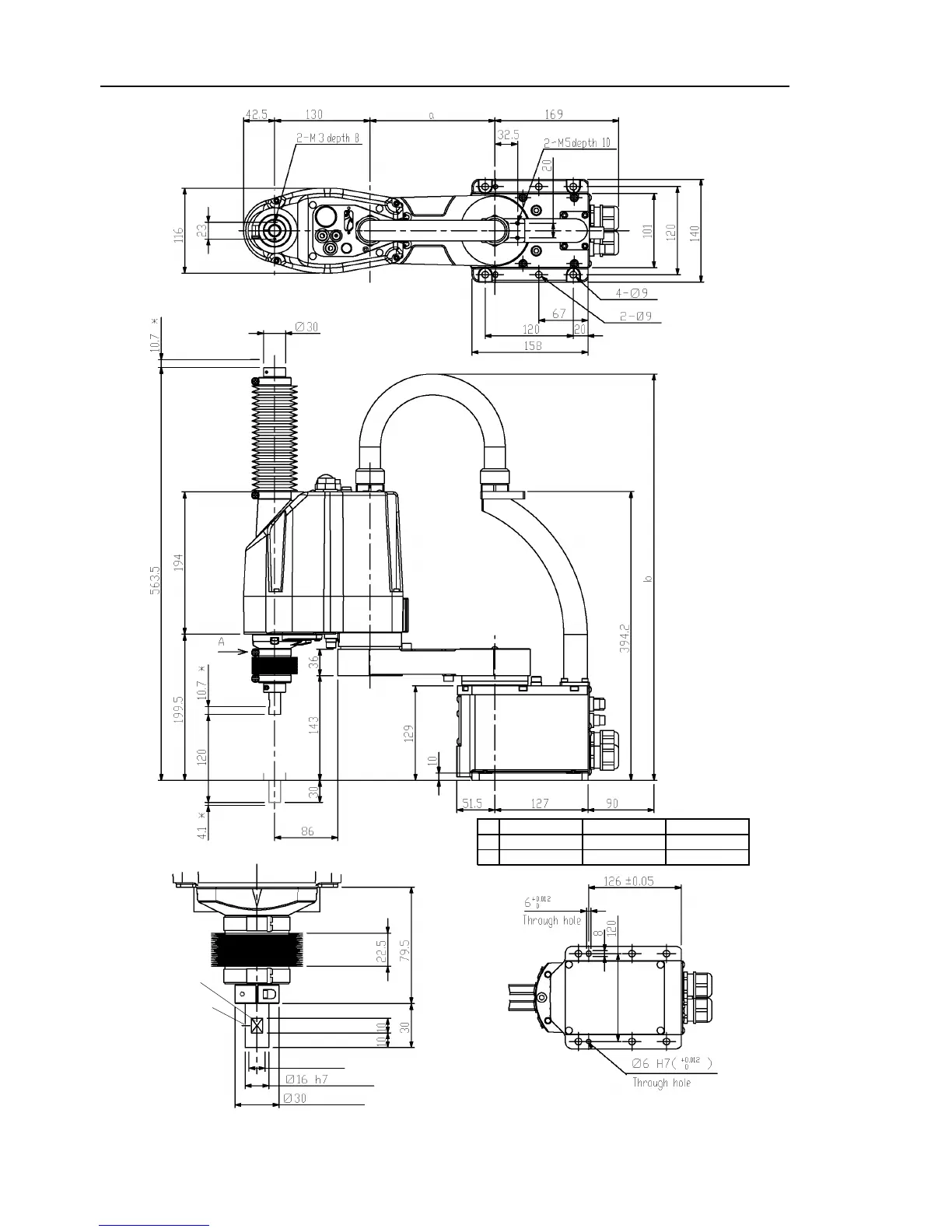

Setup & Operation 2. Specifications
22 G3 Rev.14
G3-251C
G3-301C
G3-351C
a
120
170
220
b
Max.545
Max.575
Max.595
shaft diameter
Max.ø11 through hole
mechanical stop diameter
Conical hole
Ø3,90°
1 mm flat cut
Detail of “A”
(Calibration point position of Joints #3 and #4)
Space for cables
(*) indicates the stroke margin by mechanical stop.
Reference through hole
(View from the bottom of the base)
or
more
