Setup & Operation 3. Environments and Installation
48 G3 Rev.14

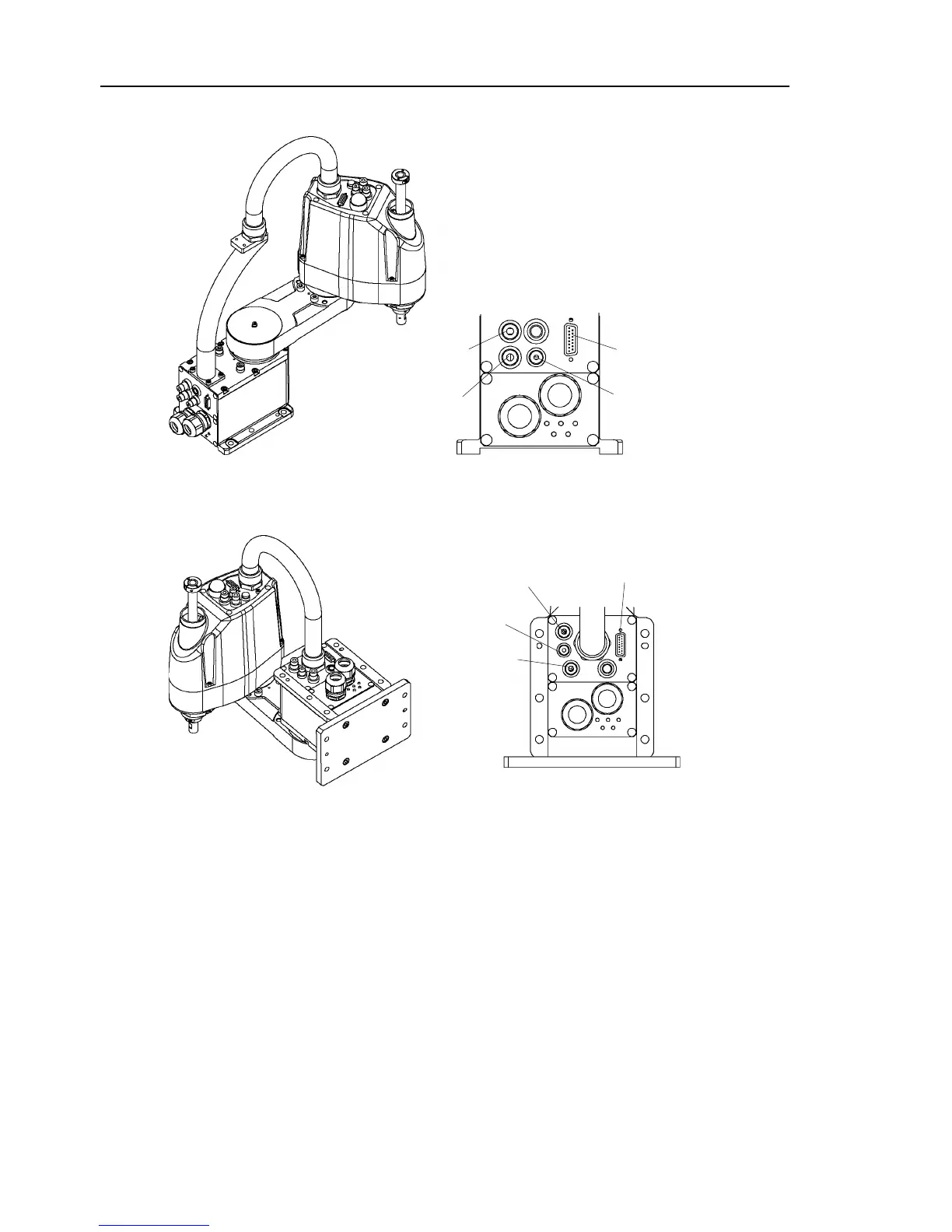

Table Top Mounting
Fitting (
black or blue)*
for ø4 mm pneumatic tube
Fitting (black or blue)* for
ø6 mm
pneumatic tube
Fitting (white) for
ø6 mm pneumatic tube
User connector
(15-pin D-sub connector)
Base back side
Multiple Mounting
Fitting (black or blue)* for
ø6 mm
pneumatic tube
User connector
(15-pin D-sub connector)
Fitting (white) for
ø6 mm pneumatic tube
Fitting (black or blue)* for
ø4 mm pneumatic tube
Base upper side
