Epson LS11000 - Page 146

146

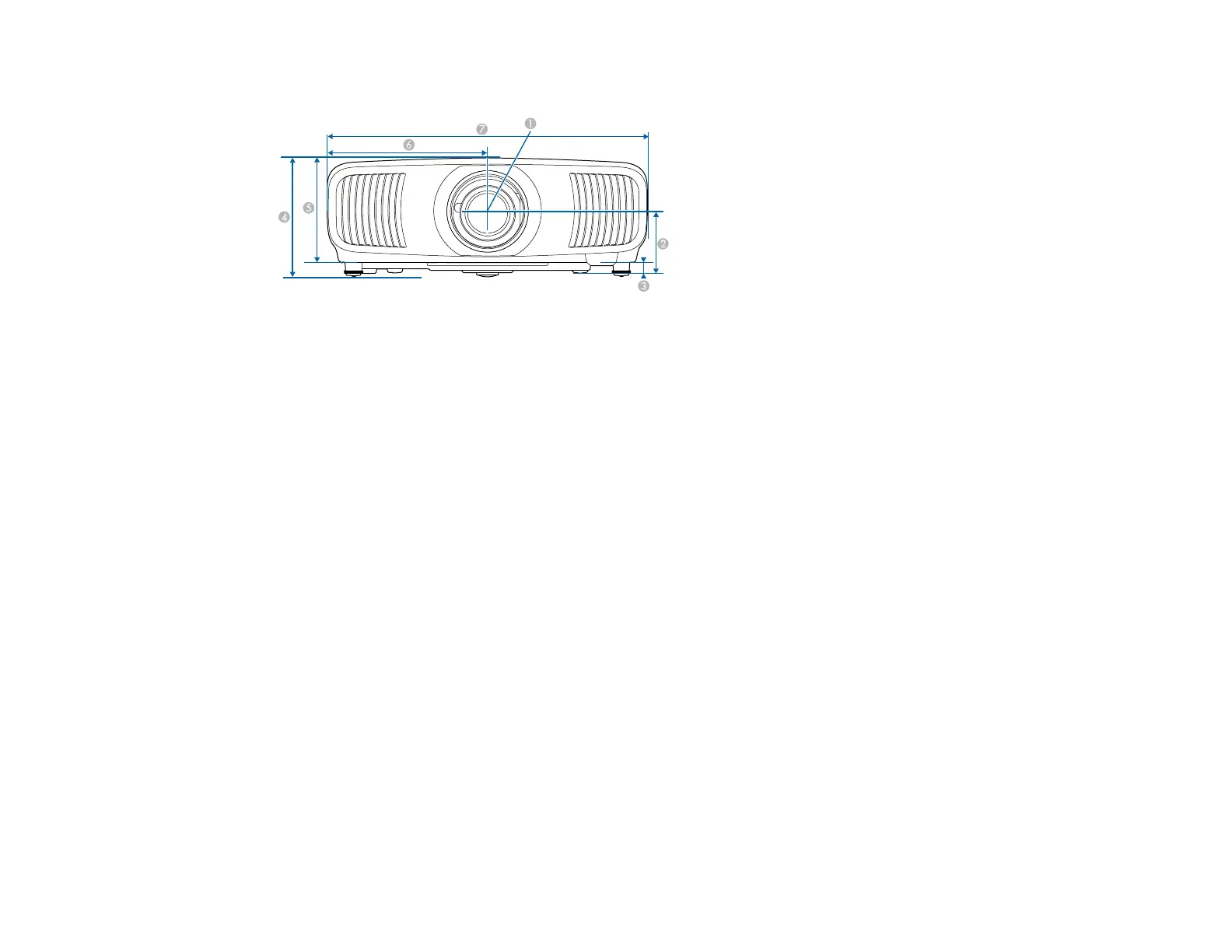

For mounting
1 Center of lens
2 Distance from center of lens to suspension bracket fixing point: 3.8 inches (96.1 mm)
3 0.7 inches (17.1 mm)
4 7.6 inches (192.7 mm)
5 6.7 inches (169 mm)
6 10.2 inches (260 mm)
