Epson LS11000 - Connecting to a Trigger out Port

31
Note: Make sure the HDMI Link setting is turned on in the projector's Signal I/O menu.

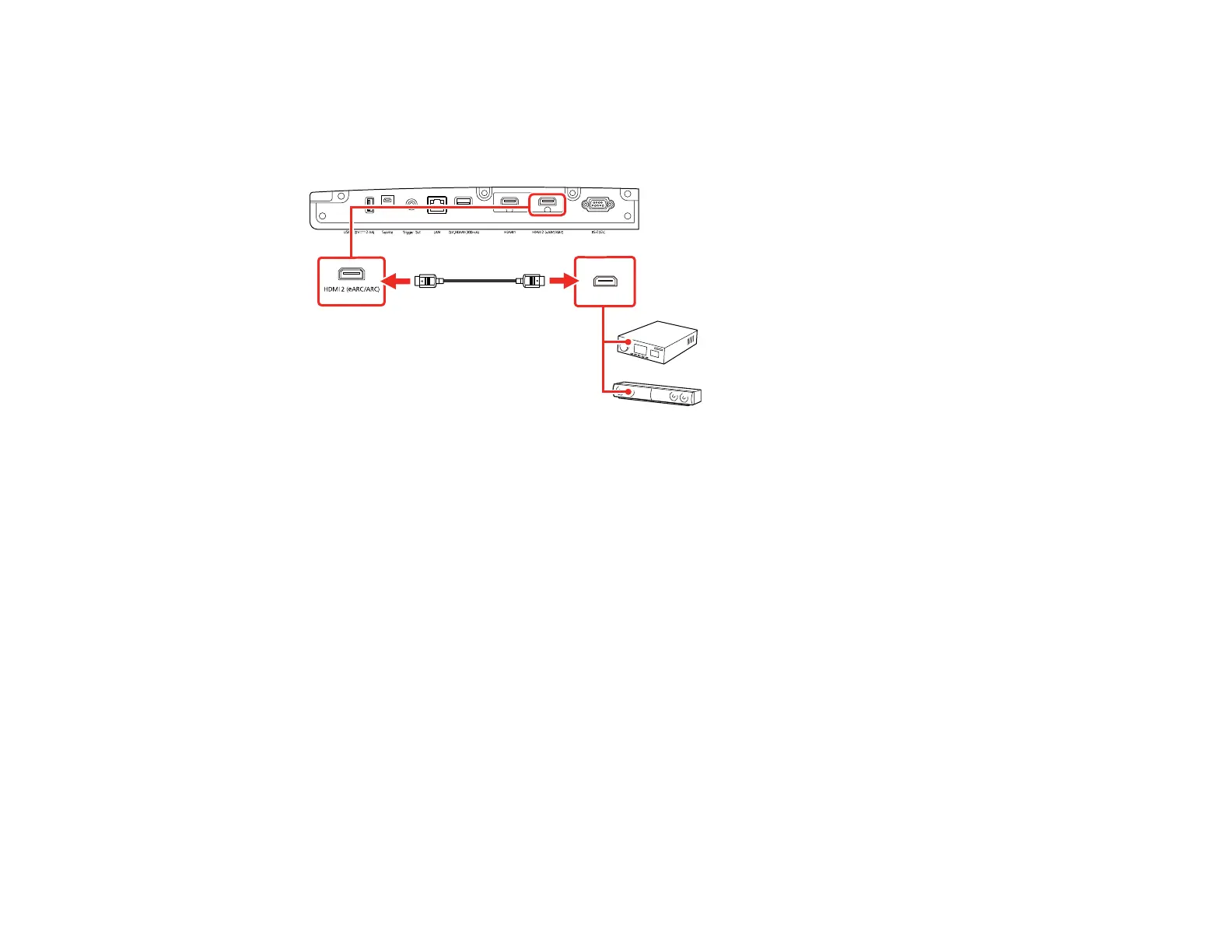

1. Connect the HDMI cable to the HDMI port on your A/V system or external speakers.
2. Connect the other end of the cable to the HDMI2 (eARC/ARC) port on the rear of the projector.
3. Adjust any necessary settings on the connected A/V system or external speakers. See your device's
documentation for more information.
Parent topic: Connecting External Output Devices
Connecting to a Trigger Out Port
You can connect your projector to external devices such as motorized screens that support a trigger
signal. When active, a 12V (200 mA maximum) signal is sent to the connected device while the projector
is powered on. See the link below for cable specifications.
1. Connect a 3.5 mm mono or stereo mini-jack cable to the external device's trigger port. See your
device's documentation for details.
