17
4 LAN port
5 Opt.HDMI (300mA) port (supports power connection for optical HDMI cables)
6 HDMI1 port (supports HDCP 2.3)
7 HDMI2 port (supports HDCP 2.3 and HDMI eARC/ARC)
8 RS-232C port

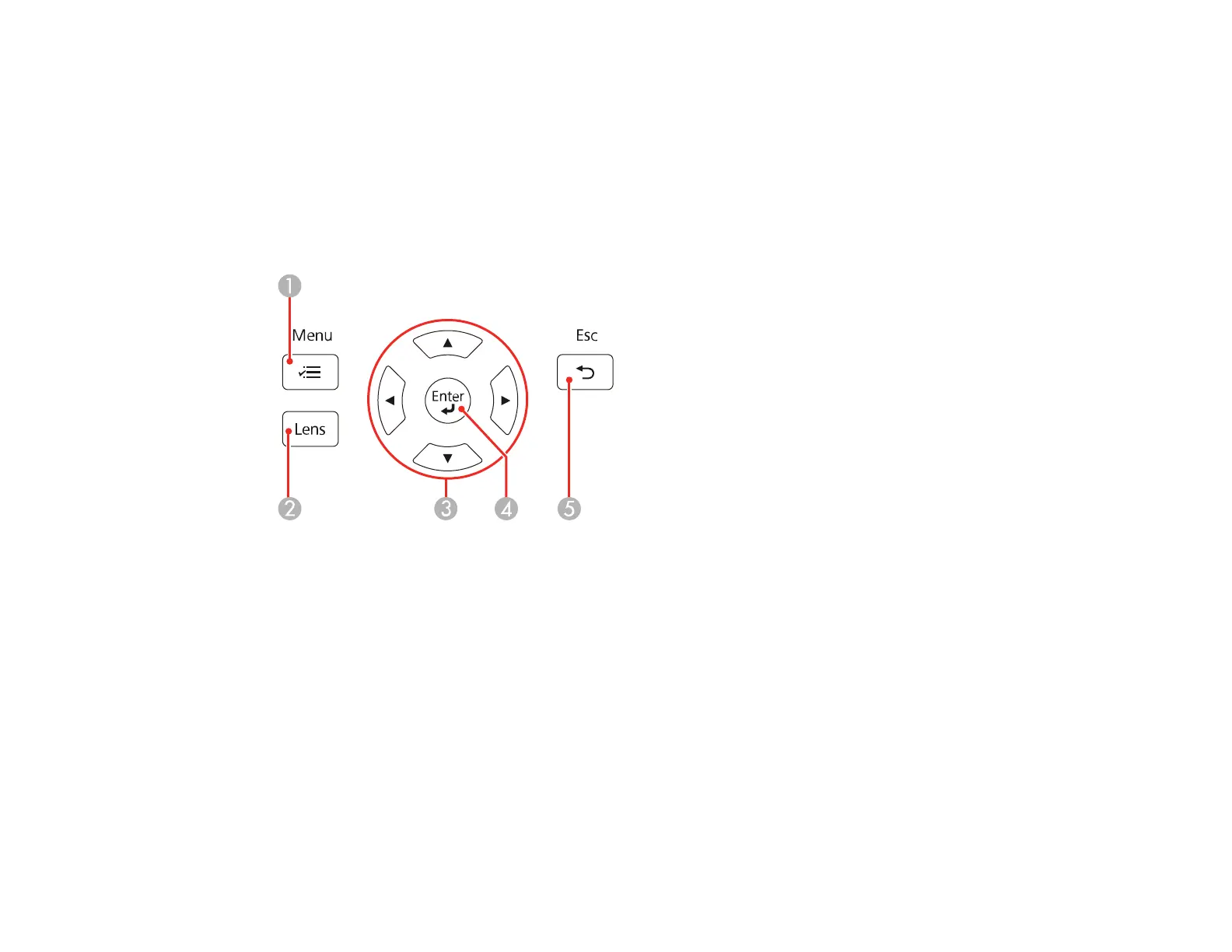

Control panel
1 Menu button (accesses projector menu system)
2 Lens button (cycles through lens adjustment options)
3 Arrow buttons (navigates on-screen options, displays H/V-Keystone screen)
4 Enter button (selects options)
5 Esc button (cancels/exits functions)
