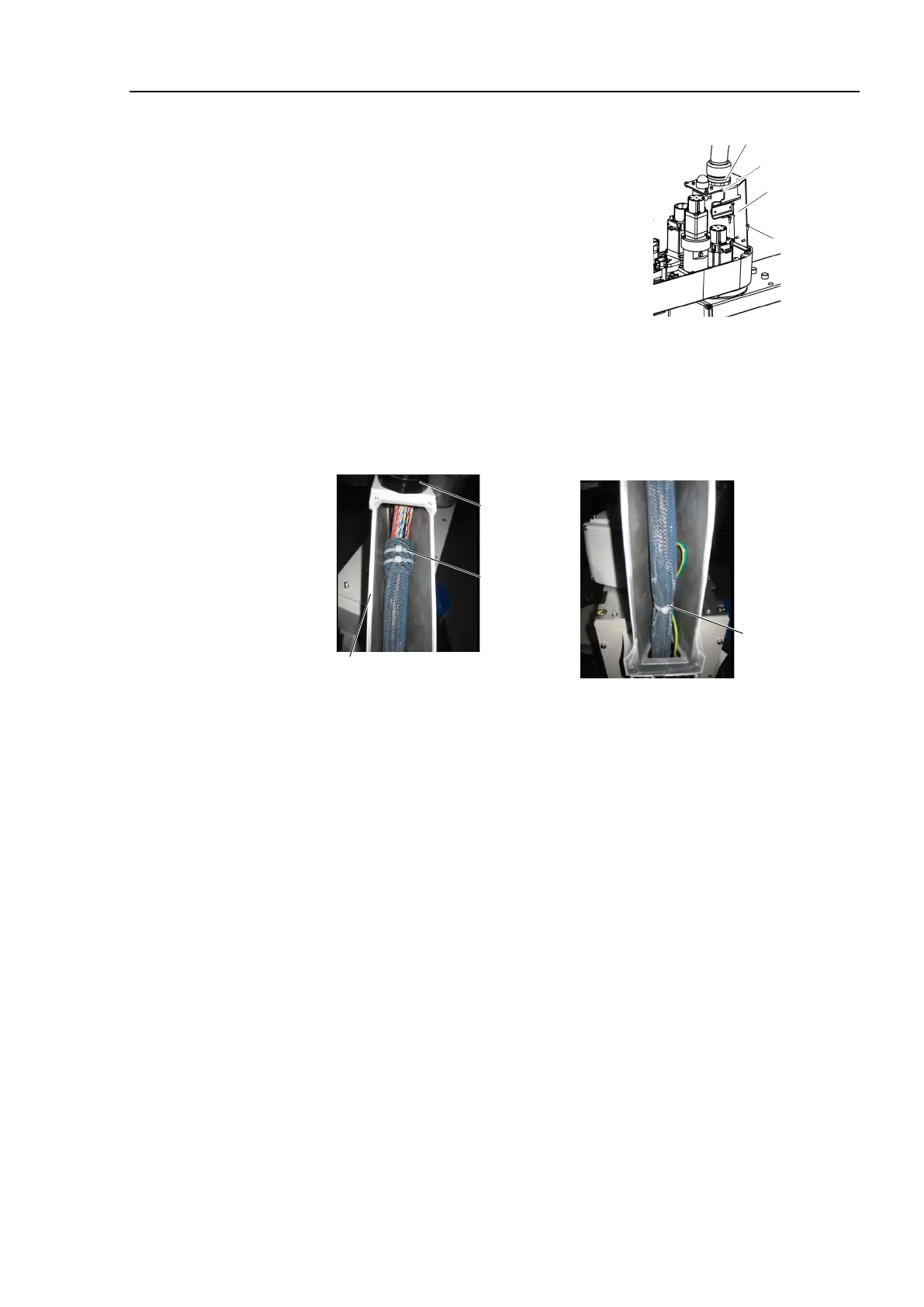

Maintenance 4. Cable
LS20-B Rev.4 79
(16)
Remove the nut of the rotary
fitting.
Remove the rotary
fitting from the Duct Plate.
Disconnect the cables from the
Duct Plate.
Nut
2-M4×10
Rotary Fittings
Duct Plate
(17)
Remove the rotary fitting from the metal duct.
The rotary fitting is directly screwed in the metal duct.
Loosen the screws to remove
the fitting.
Cut off the wire tie fixing the cables, and then disconnect the
cables from the metal
duct.
Metal duct
Rotary fitting
Wire tie
Wire tie
