Epson LX-300+ Reference Guide

Paper Handling 17
Printing with the pull tractor
To load continuous paper using the pull tractor, you must move
the tractor to the pull tractor position, as described below. If
your tractor is already installed in this position, make sure the
printer is turned off and skip to step 6.
1. Turn off the printer.

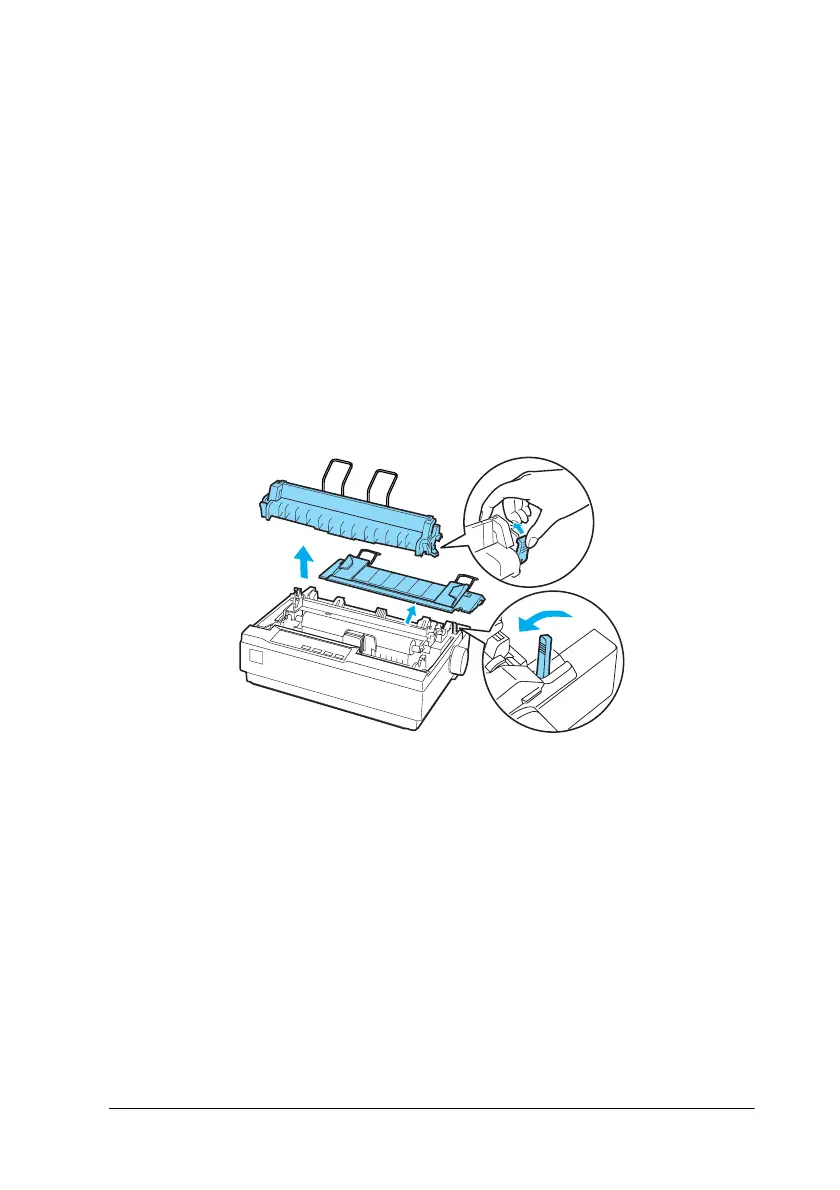

2. Remove the printer cover and the paper guide.
3. Remove the paper tension unit by gently squeezing the lock
tabs and pulling it out of the printer.
4. Pull the paper release lever forward to the continuous paper
position.

Epson LX-300+ Specifications

General

Emulation	Epson ESC/P, IBM PPDS
Print Method	9-pin, impact dot matrix
Interface	Parallel
Paper Handling	Friction feed
Dimensions	366 x 275 x 159 mm
Paper Width	4 - 10 inches
