Epson LX 300+II User Manual

126 Options and Consumables

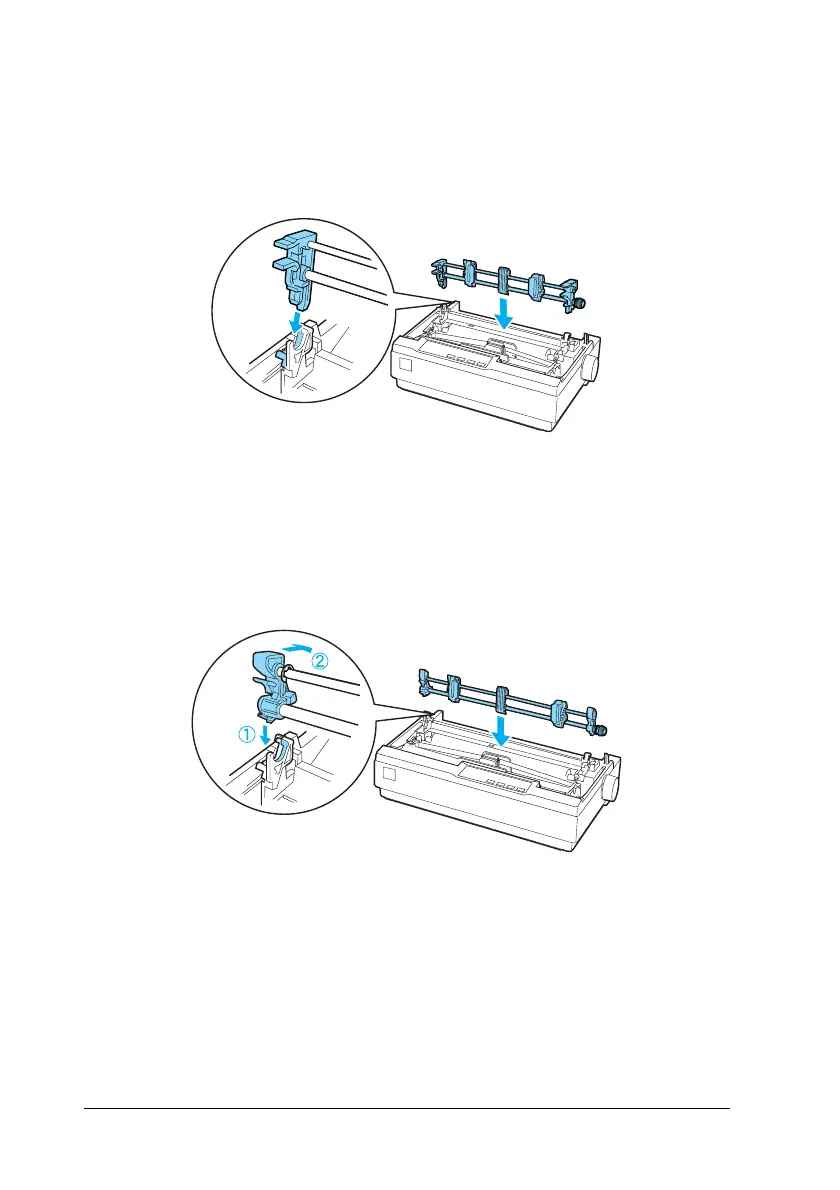

3. For LX-300+II users, grasp the pull tractor with both hands.
Move the tractor forward to the mounting slot at the top of
the printer until it fits in place as shown below. You should
feel the notches snap into place.
For LX-1170II users, grasp the pull tractor with both hands.
Push down the tractor onto the mounting slot at the top of the
printer and tilt it into place as shown below. When you push
the tractor onto the posts, you should feel the notches snap
into place.
4. Load continuous paper on the sprocket units of the
push-tractor. (See “Printing on Continuous Paper” on page
17.)
5. Turn on the printer. Hold down the LF/FF button to feed paper
in one page.

Epson LX 300+II Specifications

Power

rated voltage	120V AC
input voltage range	99 to 132V, 198 to 164V
rated frequency range	50 to 60 Hz
input frequency range	49.5 to 60.5 Hz
power consumption	Approx. 23W (ISO/IEC 10561 Letter Pattern)

Performance

print speed high speed draft	337 cps (12 cpi)
print speed draft	225 cps (10 cpi)
print speed near letter quality	56 cps (10 cpi)
sound level	49 dBA (ISO 7779 pattern)
mtbf	6, 000 POH (25% duty cycle)
print head life	400 million characters
ribbon life	3 million characters (draft, 10 cpi, 14 dots/character)

Weight and Dimensions

carton dimensions	14.5" x 17.6" x 8.6" (W x D x H)
carton weight	12.10 lb
height	6.26" (159 mm)
width	14.42" (366 mm)
depth	10.84" (275 mm)
weight	9.7 lb (4.4 kg)
