Epson LX 300+II User Manual

Paper Handling 29
2
2
2
2
2
2
2
2
2
2
2
2

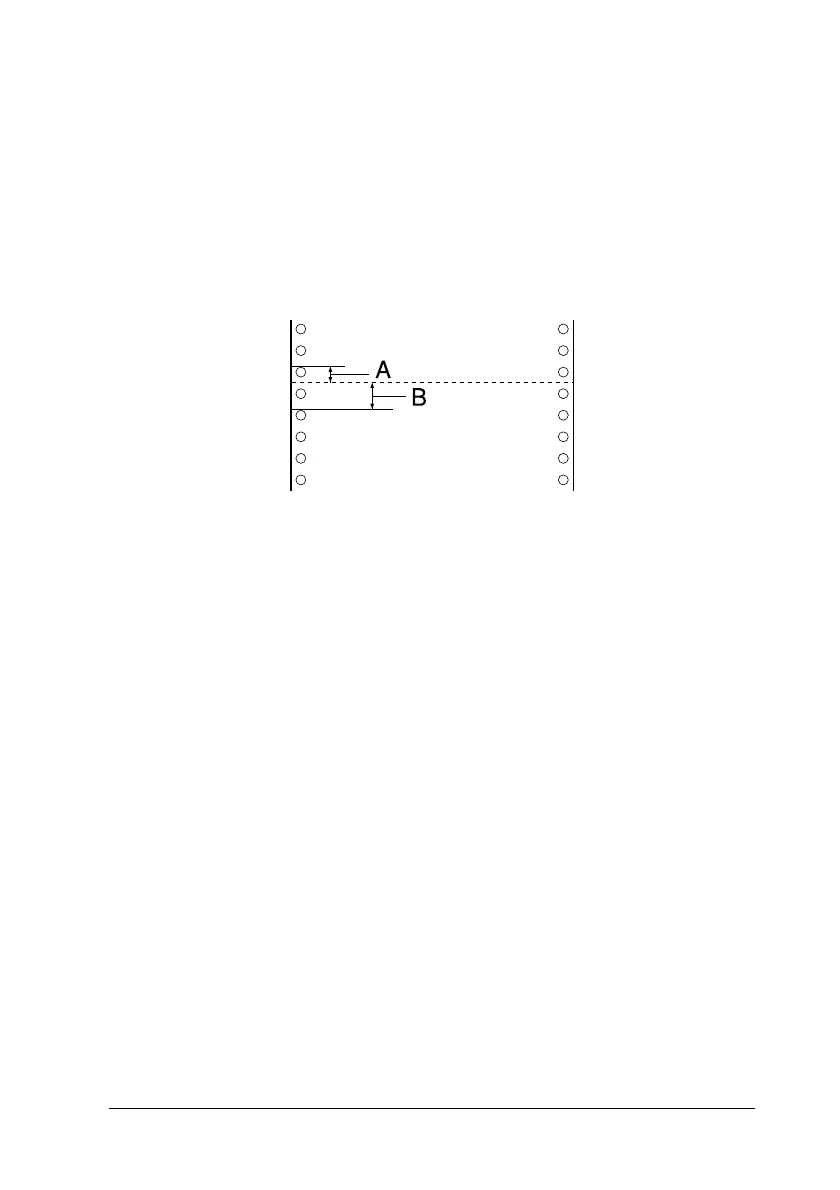

First mark a point 2.5 mm (0.1 inch) above the paper’s
perforation; then position the paper so that the mark is even
with the top edge of the plastic ribbon cover. This gives you
an 8.5 mm (0.33 inch) margin on the next page, meaning the
printer starts printing 8.5 mm (0.33 inch) below the
perforation. If you mark a point 2.5 mm (0.1 inch) above the
perforation, you get a 8.5 mm (0.33 inch) margin on the next
page.
6. After you set the top-of-form position, press the Pause button
to exit the Micro Adjust mode.
Advancing the paper to the tear-off edge
If you use the push tractor, you can use the tear-off feature to
advance your continuous paper to the printer’s tear-off edge
when you finish printing. You can then easily tear off the printed
document. When you resume printing, the printer automatically
feeds the paper back to the top-of-form position so that you can
save the paper normally lost between documents.
A 2.5 mm (0.1 inch)
B 8.5 mm (0.33 inch)

Epson LX 300+II Specifications

Power

rated voltage	120V AC
input voltage range	99 to 132V, 198 to 164V
rated frequency range	50 to 60 Hz
input frequency range	49.5 to 60.5 Hz
power consumption	Approx. 23W (ISO/IEC 10561 Letter Pattern)

Performance

print speed high speed draft	337 cps (12 cpi)
print speed draft	225 cps (10 cpi)
print speed near letter quality	56 cps (10 cpi)
sound level	49 dBA (ISO 7779 pattern)
mtbf	6, 000 POH (25% duty cycle)
print head life	400 million characters
ribbon life	3 million characters (draft, 10 cpi, 14 dots/character)

Weight and Dimensions

carton dimensions	14.5" x 17.6" x 8.6" (W x D x H)
carton weight	12.10 lb
height	6.26" (159 mm)
width	14.42" (366 mm)
depth	10.84" (275 mm)
weight	9.7 lb (4.4 kg)
