132 Options and Consumables

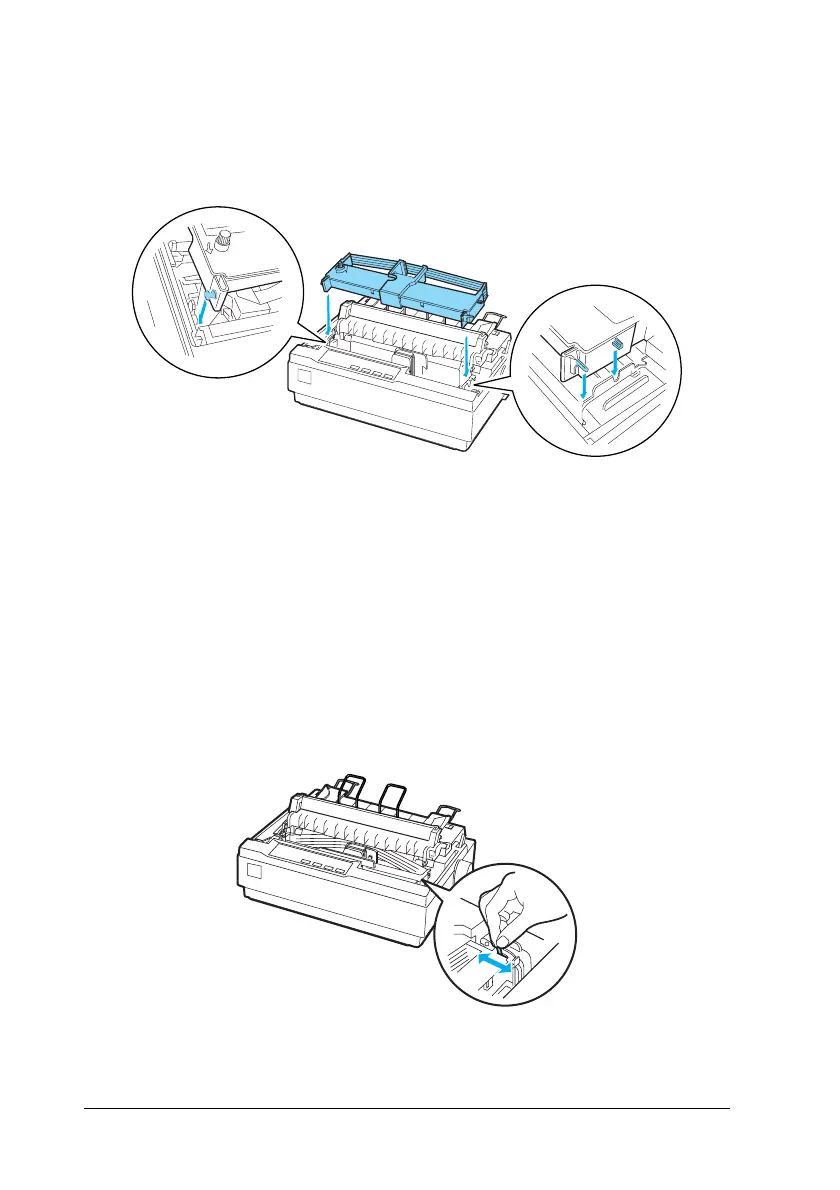

6. Insert the ribbon cartridge into the printer as shown; then
press both sides of the cartridge firmly to fit the plastic hooks
into the printer slots.
7. While holding down the Load/Eject and Pause buttons, turn
on the printer. The printer prints the instructions on how to
adjust the print position.
8. Follow the printed instructions to adjust the print position.
Note:
If you are instructed to move the color ribbon adjustment lever, move
the lever as shown below.

Epson LX 300+II Specifications

Power

rated voltage	120V AC
input voltage range	99 to 132V, 198 to 164V
rated frequency range	50 to 60 Hz
input frequency range	49.5 to 60.5 Hz
power consumption	Approx. 23W (ISO/IEC 10561 Letter Pattern)

Performance

print speed high speed draft	337 cps (12 cpi)
print speed draft	225 cps (10 cpi)
print speed near letter quality	56 cps (10 cpi)
sound level	49 dBA (ISO 7779 pattern)
mtbf	6, 000 POH (25% duty cycle)
print head life	400 million characters
ribbon life	3 million characters (draft, 10 cpi, 14 dots/character)

Weight and Dimensions

carton dimensions	14.5" x 17.6" x 8.6" (W x D x H)
carton weight	12.10 lb
height	6.26" (159 mm)
width	14.42" (366 mm)
depth	10.84" (275 mm)
weight	9.7 lb (4.4 kg)
