Paper Handling 23
2
2
2
2
2
2
2
2
2
2
2
2

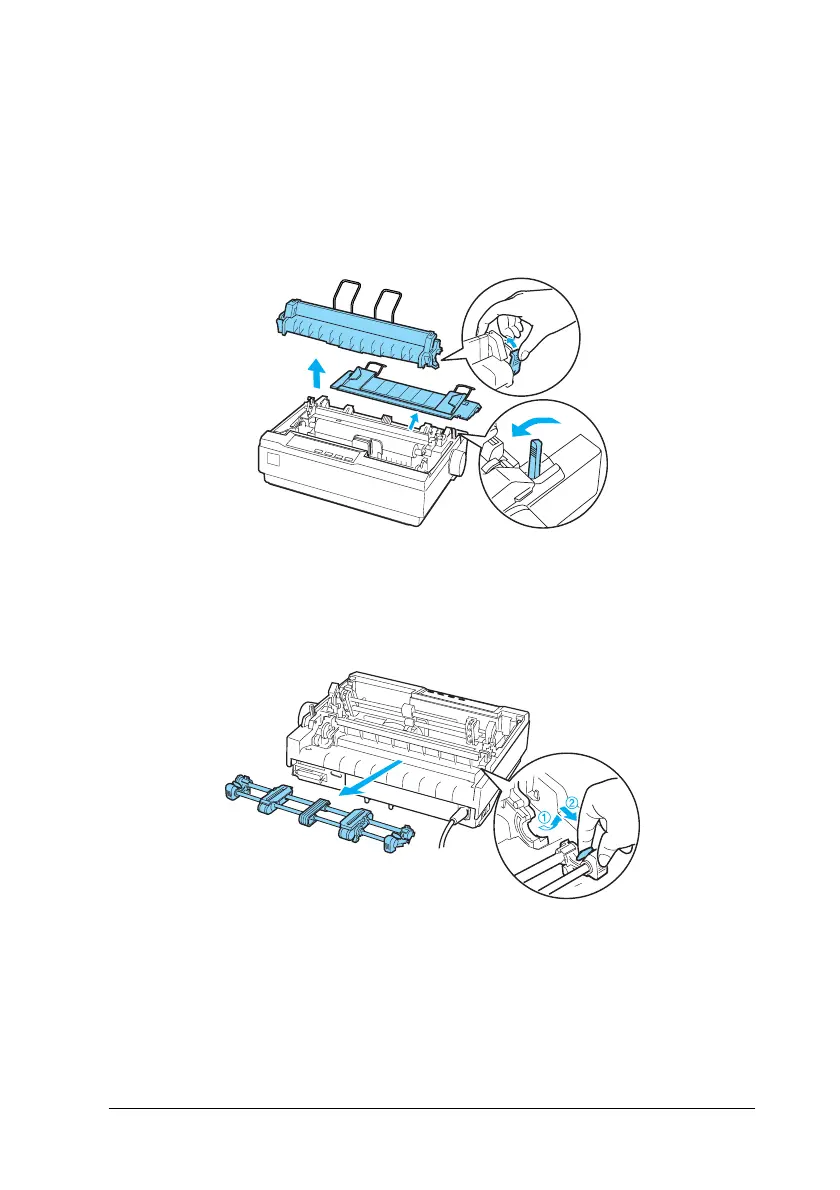

1. Turn the printer off; then remove the printer cover and the
paper guide. Next, remove the paper tension unit by
squeezing the paper tension unit’s lock tabs gently and
pulling the paper tension unit away from the printer. Finally,
pull the paper release lever forward to the continuous paper
position.
2. Squeeze the tractor’s lock tabs gently on both sides, and then
rotate the tractor up to pull it away from the printer.
