Epson LX 300+II User Manual

62 Printer Software
3. Click File and Print Sharing on the Configuration menu.
4. Select the I want to be able to allow others to print to my
printer(s). check box, then click OK.
5. Click OK to accept the settings.
Note:
❏ When “Insert the Disk” appears, insert the Windows Me or 98
CD-ROM in the computer. Click OK and then follow the
on-screen instructions.
❏ When the prompt to restart the computer appears, restart the
computer and continue with the settings.
6. Double-click the Printers icon on the control panel.

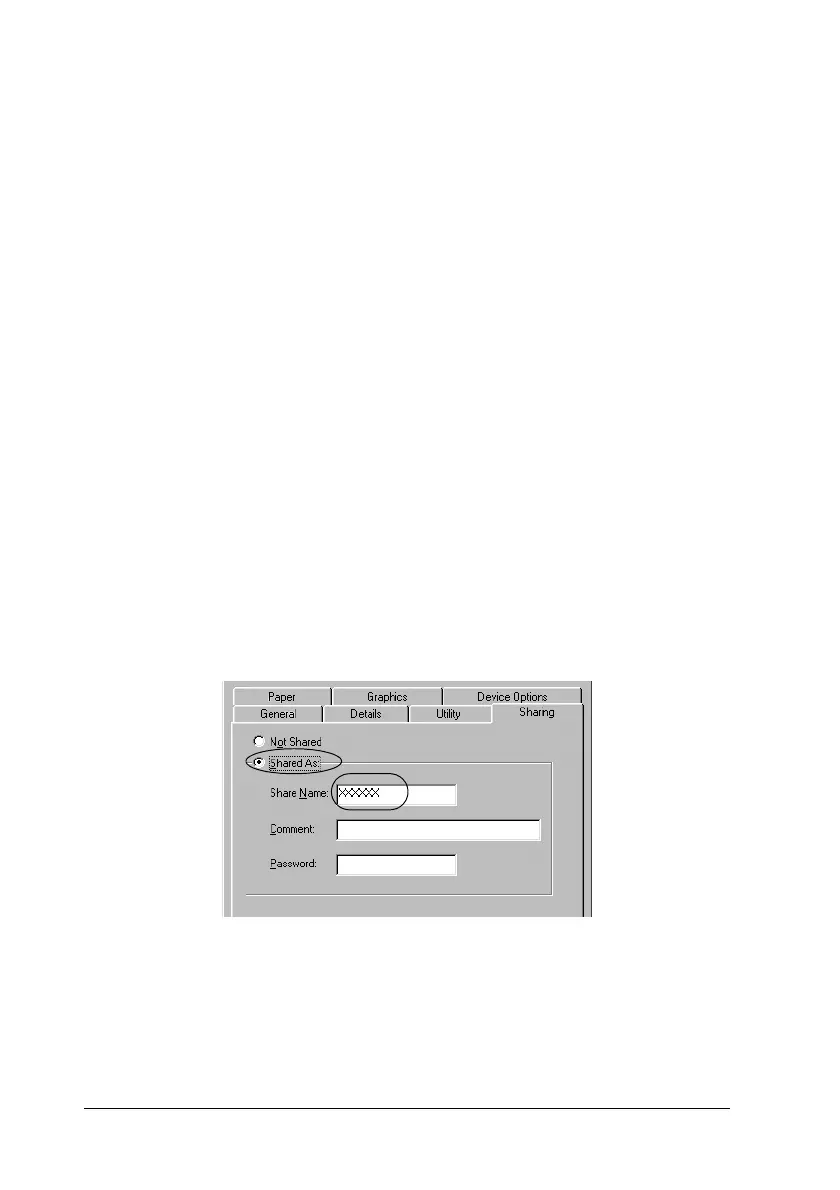

7. Right-click your printer icon, and click Sharing in the menu
that appears.
8. Select Shared As, type the name in the Share Name box, and
click OK. Type a Comment and Password if needed.
Note:
❏ Do not use spaces or hyphens for the share name, or an error
may occur.

Epson LX 300+II Specifications

Power

rated voltage	120V AC
input voltage range	99 to 132V, 198 to 164V
rated frequency range	50 to 60 Hz
input frequency range	49.5 to 60.5 Hz
power consumption	Approx. 23W (ISO/IEC 10561 Letter Pattern)

Performance

print speed high speed draft	337 cps (12 cpi)
print speed draft	225 cps (10 cpi)
print speed near letter quality	56 cps (10 cpi)
sound level	49 dBA (ISO 7779 pattern)
mtbf	6, 000 POH (25% duty cycle)
print head life	400 million characters
ribbon life	3 million characters (draft, 10 cpi, 14 dots/character)

Weight and Dimensions

carton dimensions	14.5" x 17.6" x 8.6" (W x D x H)
carton weight	12.10 lb
height	6.26" (159 mm)
width	14.42" (366 mm)
depth	10.84" (275 mm)
weight	9.7 lb (4.4 kg)
