Epson LX 300+II User Manual

70 Printer Software

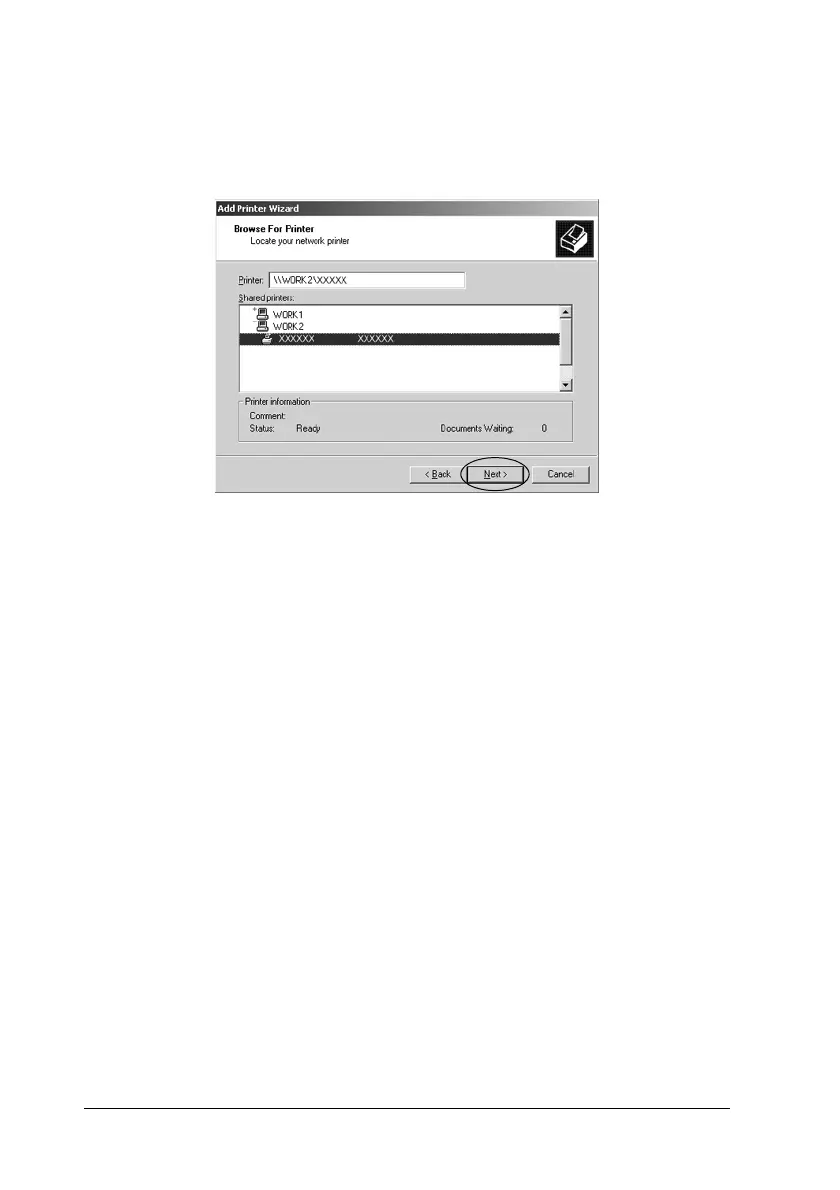

5. Click the icon of the computer or server that is connected to
the shared printer, and the name of the shared printer. Then
click Next.
Note:
❏ The name of the shared printer may be changed by the computer
or server that is connected to the shared printer. To make sure
of the name of the shared printer, ask the administrator of the
network.
❏ If the printer driver is installed in the client beforehand, you
need to select either the new printer driver or the current printer
driver. When the prompt to select the printer driver appears,
select the printer driver according to the message.
❏ Proceed to the next step if the printer server and client have the
same OS and the same architecture (x64/x86).
❏ If the printer server’s OS is not Windows XP or 2000, go to
“Installing the printer driver from the CD-ROM” on page 77.
6. For Windows 2000, select whether to use the printer as the
default printer or not, then click OK.

Epson LX 300+II Specifications

Power

rated voltage	120V AC
input voltage range	99 to 132V, 198 to 164V
rated frequency range	50 to 60 Hz
input frequency range	49.5 to 60.5 Hz
power consumption	Approx. 23W (ISO/IEC 10561 Letter Pattern)

Performance

print speed high speed draft	337 cps (12 cpi)
print speed draft	225 cps (10 cpi)
print speed near letter quality	56 cps (10 cpi)
sound level	49 dBA (ISO 7779 pattern)
mtbf	6, 000 POH (25% duty cycle)
print head life	400 million characters
ribbon life	3 million characters (draft, 10 cpi, 14 dots/character)

Weight and Dimensions

carton dimensions	14.5" x 17.6" x 8.6" (W x D x H)
carton weight	12.10 lb
height	6.26" (159 mm)
width	14.42" (366 mm)
depth	10.84" (275 mm)
weight	9.7 lb (4.4 kg)
