Epson Perfection4180 Photo - Page 49

EPSON Perfection4180 Photo Revision A
DISASSEMBLY/ASSEMBLY Disassembly Procedure 49
3. Remove the seven screws (five (CBP, M3x8), two (CBP, M3x10)) that are securing the
TPU Unit.
4. With a flat-blade screwdriver, release the eight hooks that are securing the TPU Unit,
and remove the TPU Inverter Unit.

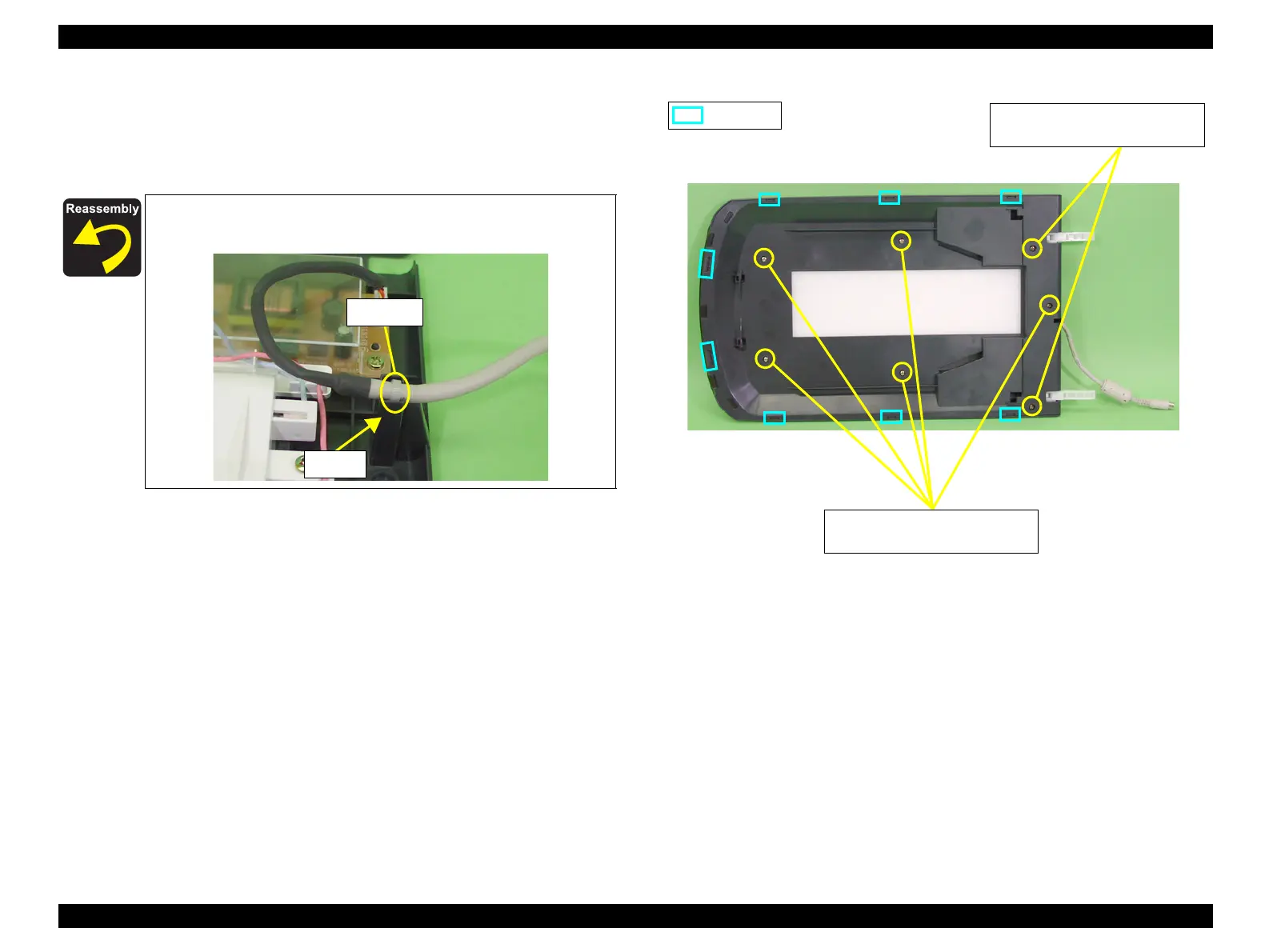

Figure 4-31. Removal of TPU Inverter Unit
When reinstalling the TPU Inverter Unit, insert the Stopper of the
TPU Unit Cable into the Socket.
Stopper
Socket
Hooks
M3x8
Tightening torque 6-8kgfcm
M3x10
Tightening torque 6-9kgfcm
