EPSON Stylus C50/C60/C61/C62 Revision C

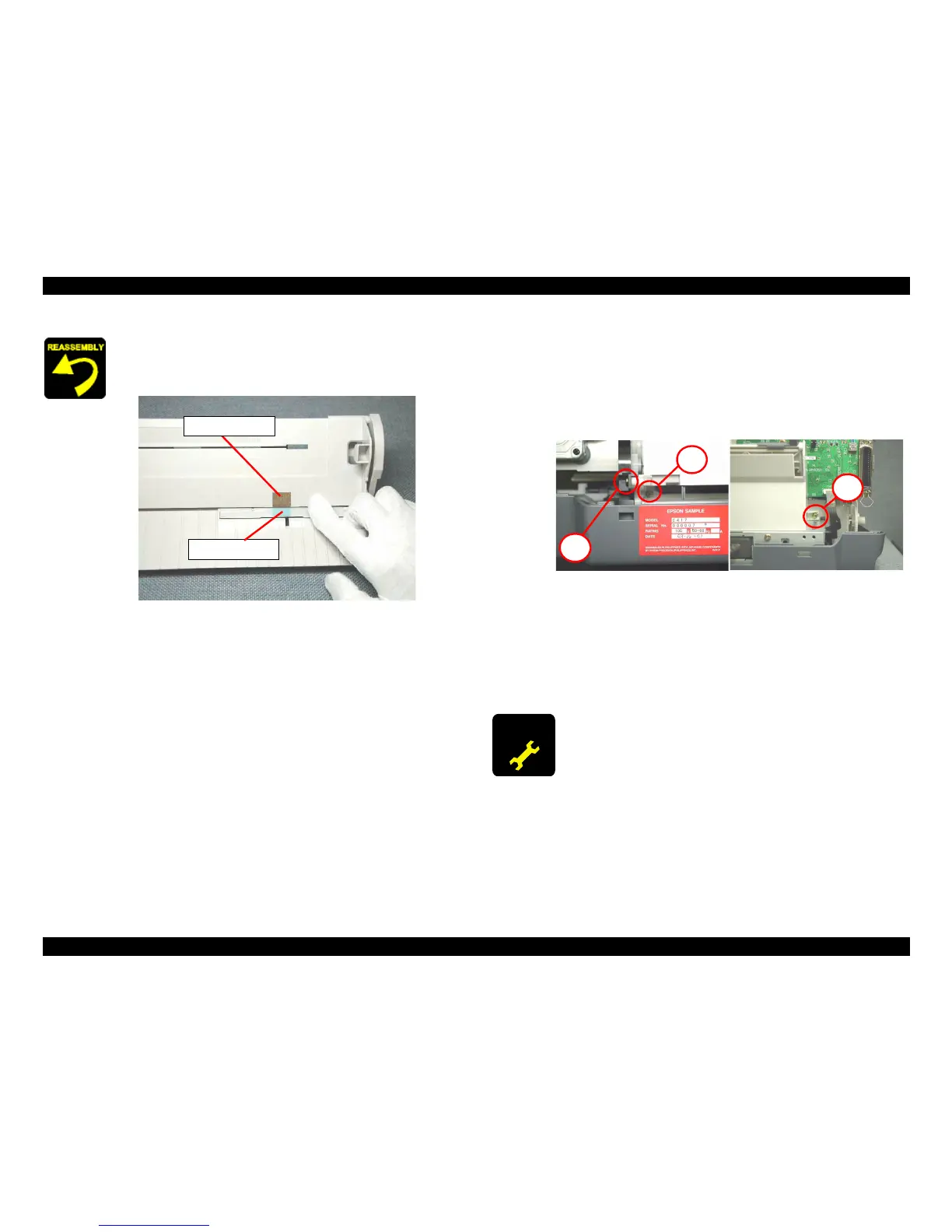

Disassembly and Assembly Disassembly 102

When assembling the LD pad on the Pad holder and the Hopper
pad on the Hopper,

Make sure to place it inside the square dent.
Figure 4-23. Hopper pad and LD pad setting position

Do not touch the surface of these pads.

Do not reuse the pad which you miss to stick.

When assembling the Pad holder to the ASF frame,

Make sure to install the tip of the Torsion spring 29.1 in the
holes of the Pad holder and the ASF frame.

Make sure that the Pad holder (Paper return plate) moves
smoothly.
Hopper pad
LD pad

When assembling the ASF unit to the printer,

Make sure that the LD roller is set to the ASF home position.

Fasten three screws (C.B.S. SCREW 3x6 F/Zn, C.B.S-TITE
(P4) 3x6 F/Zn, C.B.P-TITE 3x8 F/Zn) for securing the ASF
unit in the order indicated in the following figure.
Figure 4-24. ASF fixing screws fastening order
Tightening torque for each screw is as follows.
•
C.B.S. SCREW, 3x6, F/Zn (1 pcs) : 9 ± 1 kgf.cm
• C.B.S-TITE (P4), 3x6, F/Zn (1 pcs) : 9 ± 1 kgf.cm
• C.B.P-TITE, 3x8, F/Zn (1 pcs) : 6 ± 1 kgf.cm
ADJUSTM ENT
REQUIRED

When the CR motor is removed or replaced with new one, the
following adjustment must be performed in the order below.
1) Top margin adjustment
2) 1st dot position adjustment
3
1
2

Epson Stylus C62 Specifications

Printing

printing method	4-color (CMYK) drop-on-demand Micro Piezo ink jet technology
resolution (dots per inch)	Up to 5760 x 720 optimized dpi
print speed (black text memo)	14 ppm

Paper Handling

maximum paper size	up to 8.5" x 44"
input paper tray capacity	100 sheets/10 envelopes
envelope types	No. 10, DL, C6

Dimensions and Weight

dimensions (L x W x H)	18.8" x 10.2" x 7.1"
weight	7.5 lb
maximum printable area	8.26" x 10.76"
