Epson Stylus C58/C59/ME 2/C79/D78/C90/C91/C92/D92/T20/T20E/T23/T26/S20/T10/T11/ME 30/T21/T24/T27/S21 Revision E
MAINTENANCE Overview 83
Confidential

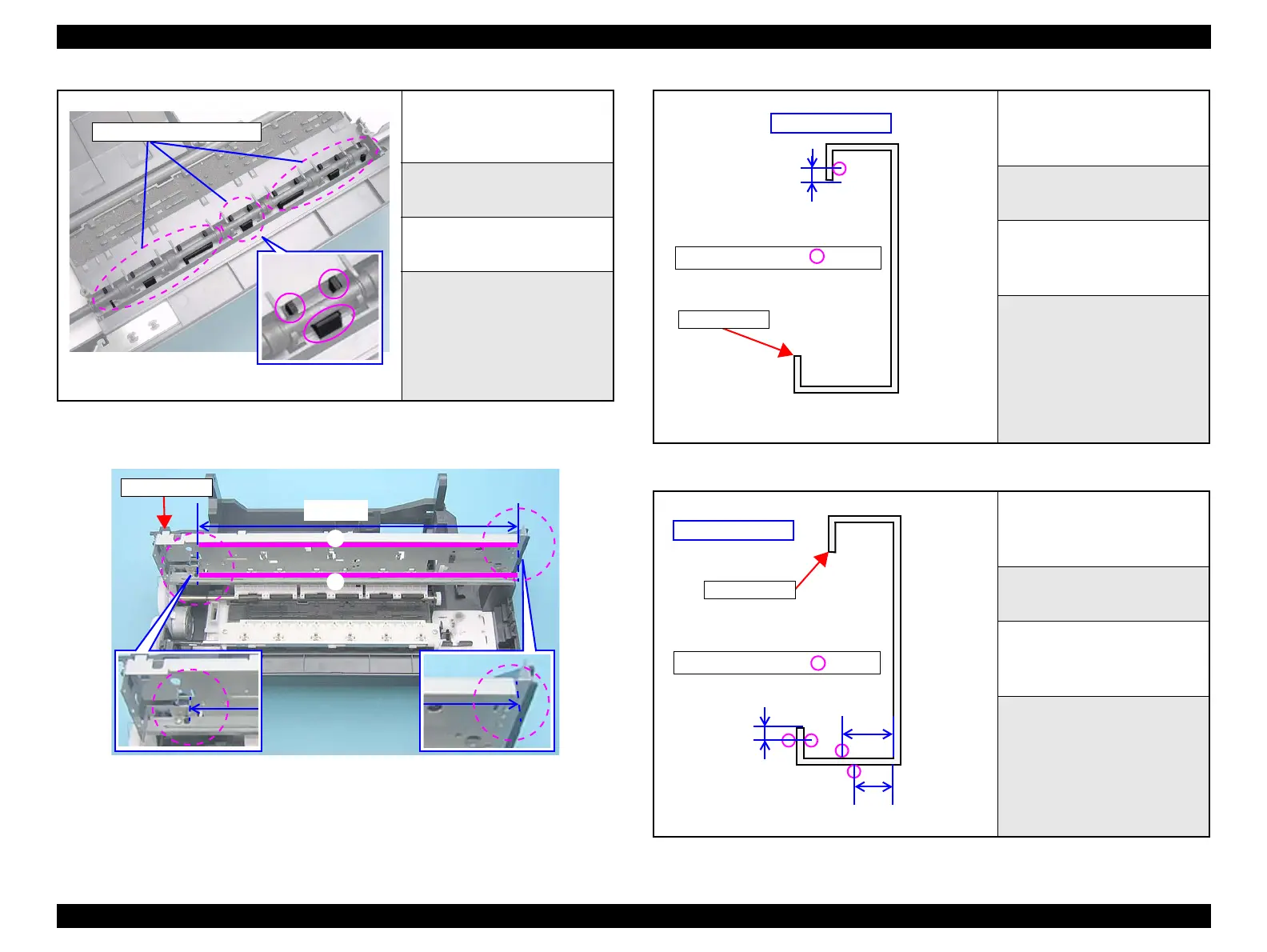

Figure 6-10. Lubrication on EJ Roller (2)
Figure 6-11. Lubrication on Main Frame
There is one lubrication point in the area indicated with 1. See Figure 6-12
There are four lubrication point in the area indicated with 2. See Figure 6-13
Figure 6-12. Lubrication on Main Frame (1)
Figure 6-13. Lubrication on Main Frame (2)
<Lubrication Point>
Bearings (x19) below the hooks of
Lower Housing (for EJ Roller)
<Lubrication Type>
G-74
<Lubrication Point>
0.04g/position
<Remarks>
Use a flux dispenser to apply G-74
G-74 must not be adhered to
other parts.
Rotate EJ Roller when lubricate
it with G-74.
Lubrication Points (x 19)
355 mm
2
1
Main Frame
<Lubrication Point>
Upper rib (x 1)
Area 1 in Figure 6-11
<Lubrication Point>
G-71
<Lubrication Amount>
φ 1 mm x 355 mm along upper rib
(See Figure 6-11)
<Remarks>
Use an injector to apply G-71.
G-71 must not be adhered to
other parts.
Rub off excess G-71 with a
cotton bud if necessary.
<Lubrication Point>
Lower rib (x 4: Point A - Point D)
Area 2 in Figure 6-11
<Lubrication Point>
G-71
<Lubrication Amount>
φ 1 mm x 355 mm along lower rib
(See Figure 6-11)
<Remarks>
Use an injector to apply G-71.
G-71 must not be adhered to
other parts.
Rub off excess G-71 with a
cotton bud if necessary.
1.5 mm
Main Frame
Right Side View
Lubrication Point ( : x 1)
1
1.5 mm
4 mm
A
D
Lubrication Points ( : x 4)
Right Side View
Main Frame
6 mm
B
C
2
