5.4 Coordinate System
The origin point is where the Manipulator’s installation face intersects with the rotation
axis of Joint #1.
For details on the coordinate system, refer to the EPSON RC+ User’s Guide manual.

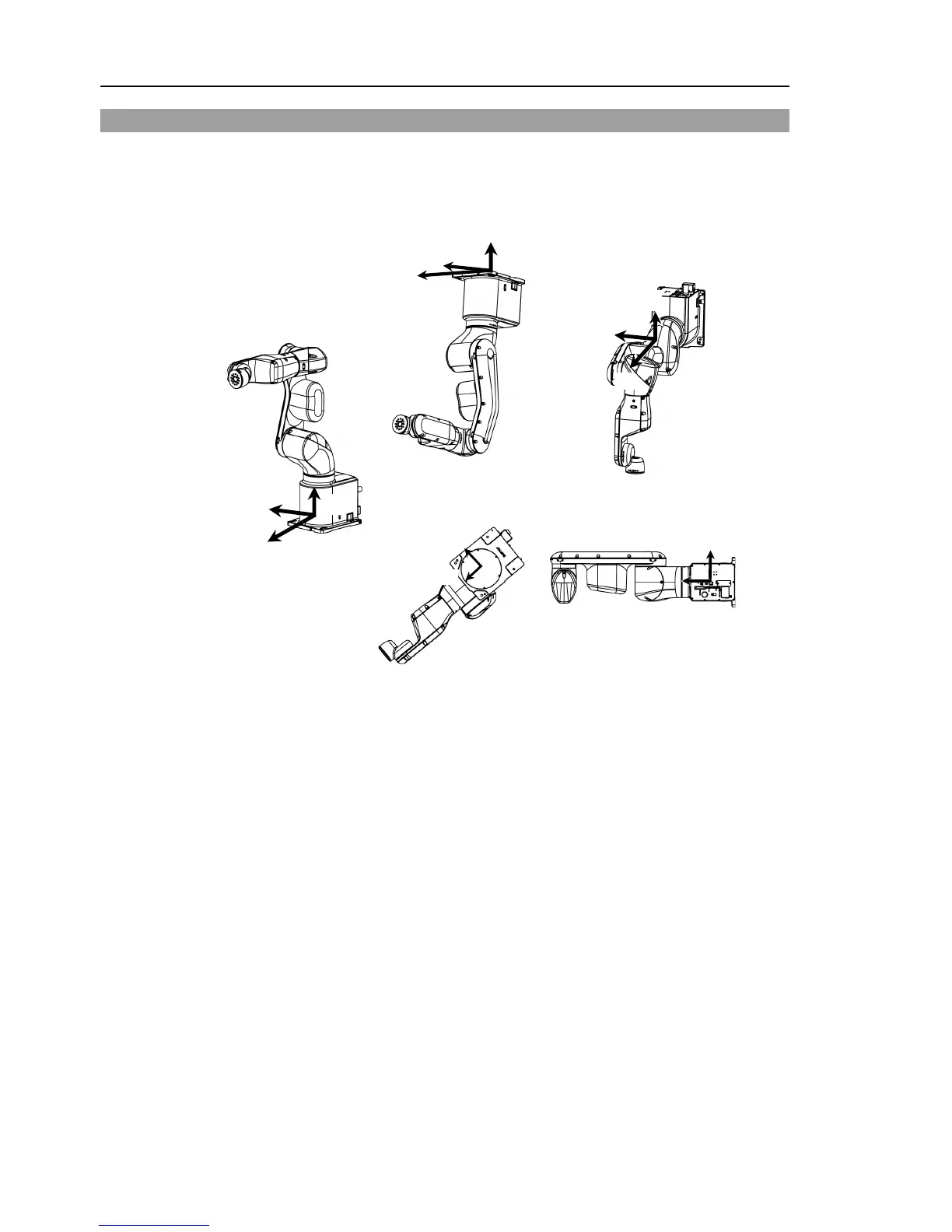

Table Top mounting
Ceiling mounting
Wall mounting
