2.3 Mechanical characteristics
Table 2 : Mechanical characteristics
Dimensions
73 x 54.5 x 25.5 mm (connectors excluded)
Complete dimensions
104 x 92 x 40 mm
Weight
≈ 90 grams (modem only)
< 190 grams (modem + brackets + cables)
Volume
101.5 cm³
Casing
Aluminium profile
Waterproof level
IP31

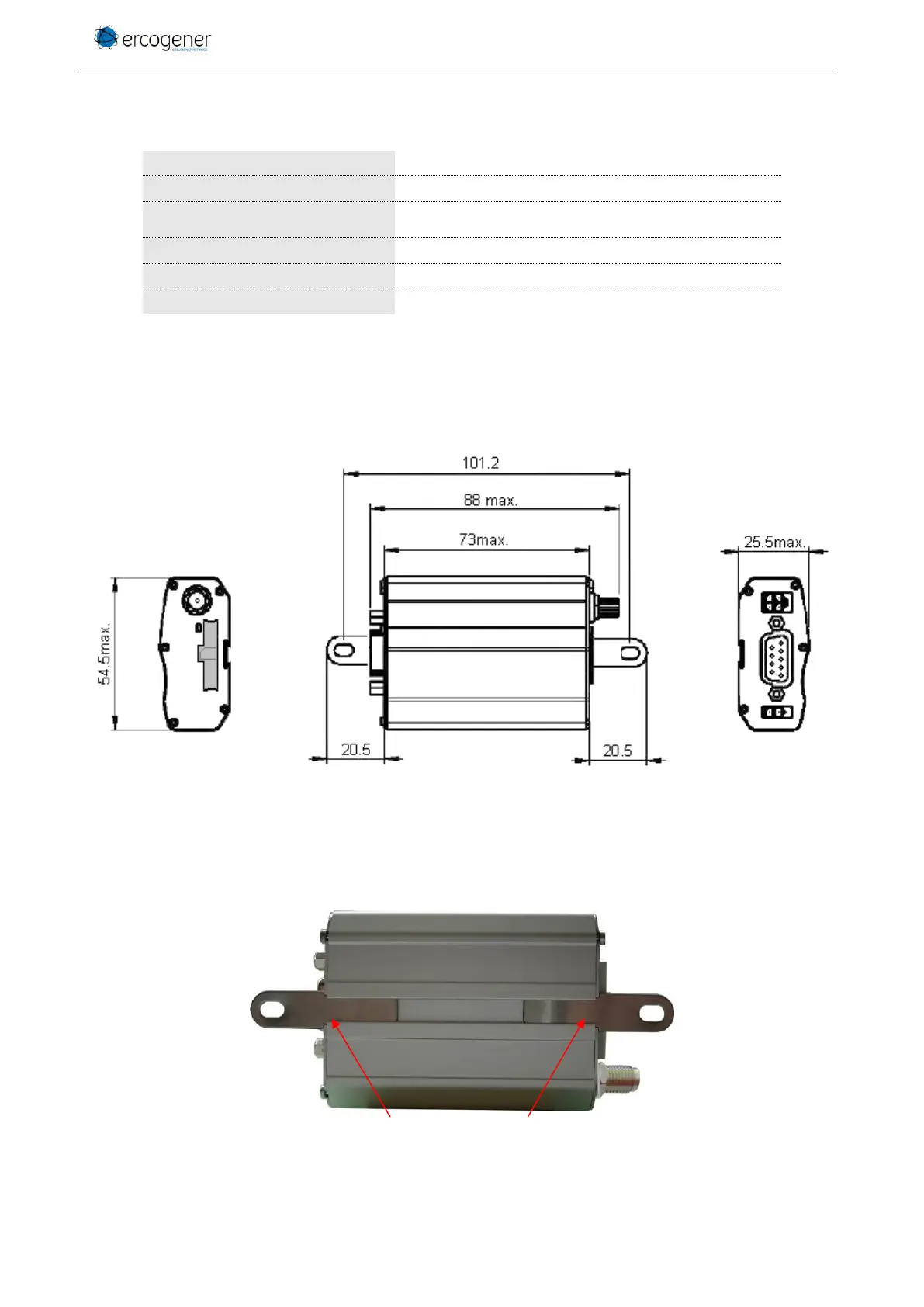

The illustration below shows the dimensions of the modem including the clearances necessary for the
installation of the modem.
Figure 2 : Dimensions
2.3.1 Fixing brackets
2 brackets to fix the modem on a support.
Figure 3 : Back side
Fixing brackets
