3 Interfaces
3.1 Front side

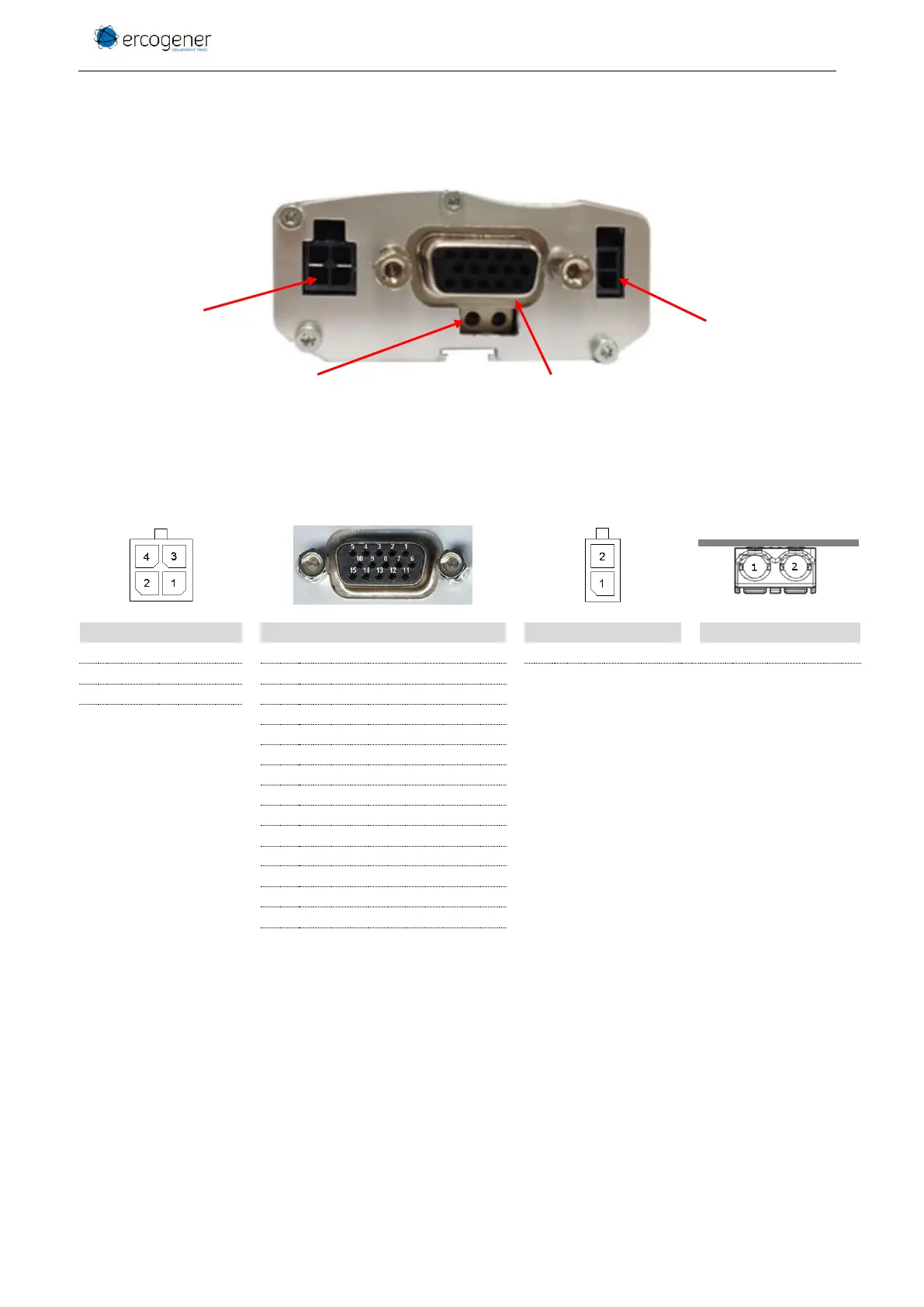

Figure 4 : Front side
Table 6 : Front side connection
Micro Fit 4 pins
Sub-HD 15 pins
Micro Fit 2 pins
Spring cage
1
OUTPUT 1 [S1]
1
109 - DS/DCD [S]
1
INPUT 3 [E3]
1
RS485 A+
2
INPUT 1 [E1]
2
103 - ED/TXD [E]
2
INPUT 2 [E2]
2
RS485 B-
3
GND
3
Boot [E]
4
+V
DC
4
NC
5
NC
6
104 - RD/RXD [S]
7
107 - PDP/DSR [E]
8
108/2 - TDP/DTR [E]
9
102 - TS/GND
10
NC
11
106 - PAE/CTS [S]
12
105 - DPE/RTS [E]
13
125 – IA/RI [S]
14
Reset [E]
15
Analog input 0-10V
Connector
Micro-Fit 4pts/M
Connector
Sub HD 15pts/F
Connector
Micro-Fit 2pts/M
Connector
Spring cage
A+ B-
