3.9.2 Analog input 0-10V by default
This input allows having an analog input able to measure a voltage between 0 and 10V.
Table 27 : Description of analog input 0-10V
Signal
Sub-HD 15 pins
Pin number
I/O
Description
ANA 2
GND
15
9
I
Analog input 0 – 10 V
Table 28 : Characteristics of analog input 0-10V
Characteristics
Symbols
Conditions
Min.
Typ.
Max.
Unité
Analog input
ANA 2
-0.3
11
V
DC
Conversion range
0
10.20
V
DC
Polarization current
De 0 à 10.20 V
0
345
µA
DC
Resolution
10
bits
The integrator has the responsibility to protect the input from electrical perturbations and to
respect the functioning parameters values.

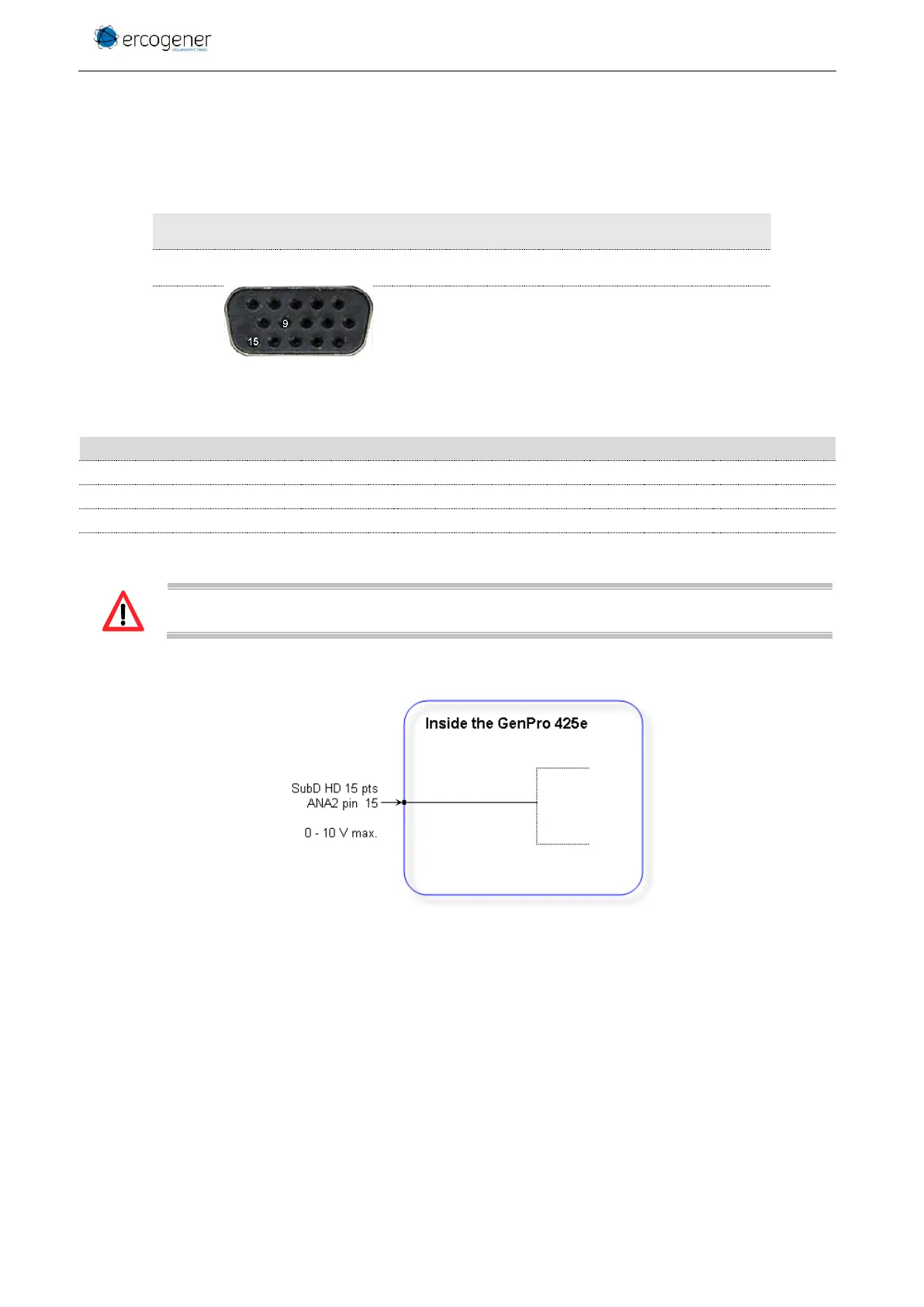

Figure 16 : Internal electric scheme of analog input 0-10V
