ANNEX 2 - 2-pin Micro-FIT cable
(ercogener :reference: 4402000108)

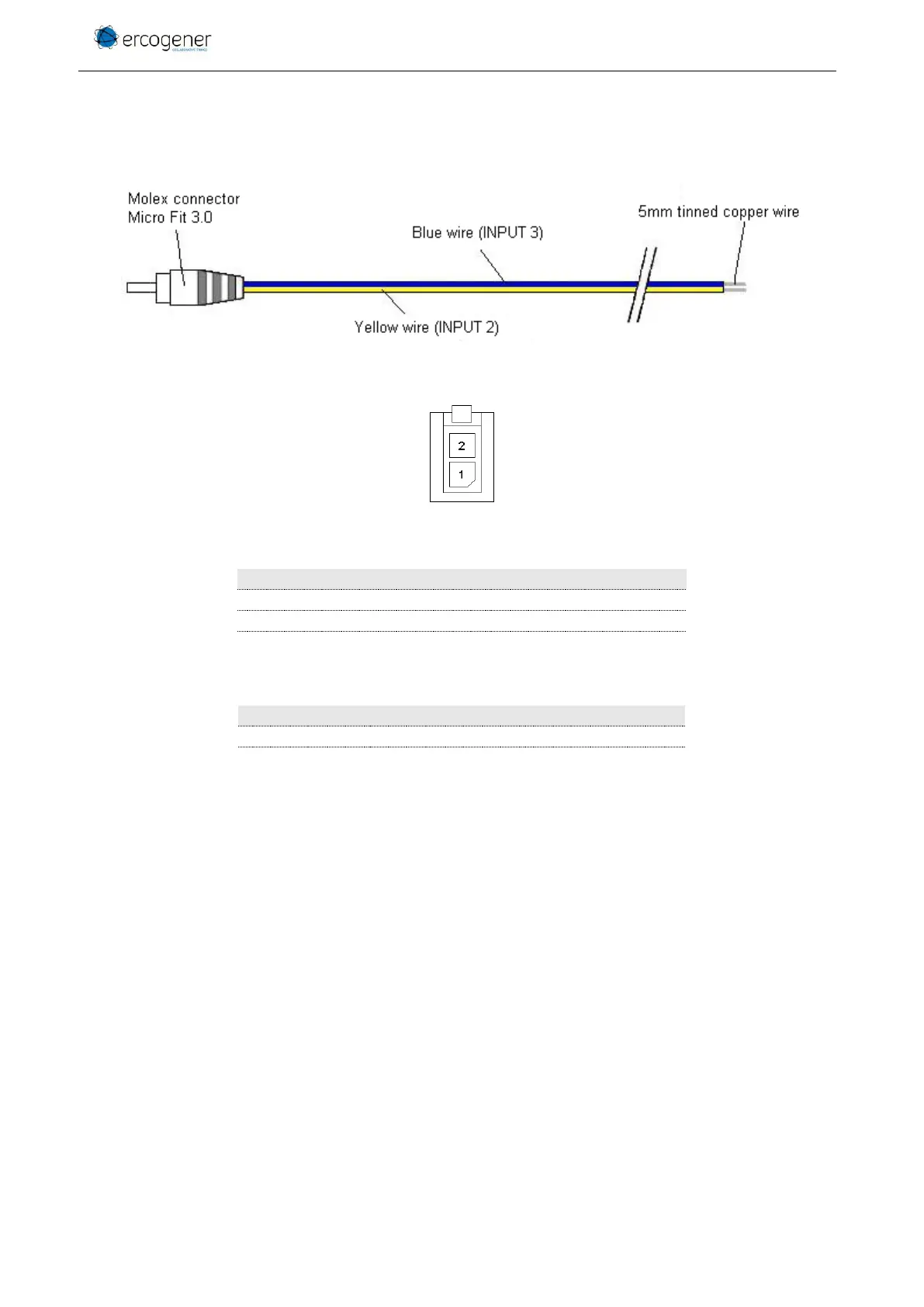

Figure 27 : 2-pin Micro-FIT cable (Inputs)
Table 45 : Characteristics of 2-wire inputs cable
Component
Characteristics
2-pin connector
Cable
Length ≈ 1.5m
Wire
Section : 0.5 mm²
Table 46 : Wiring of 2-wire inputs cable
Pin N°
Signal
Color
1
Input (E2)
Yellow
2
Input (E3)
Blue
