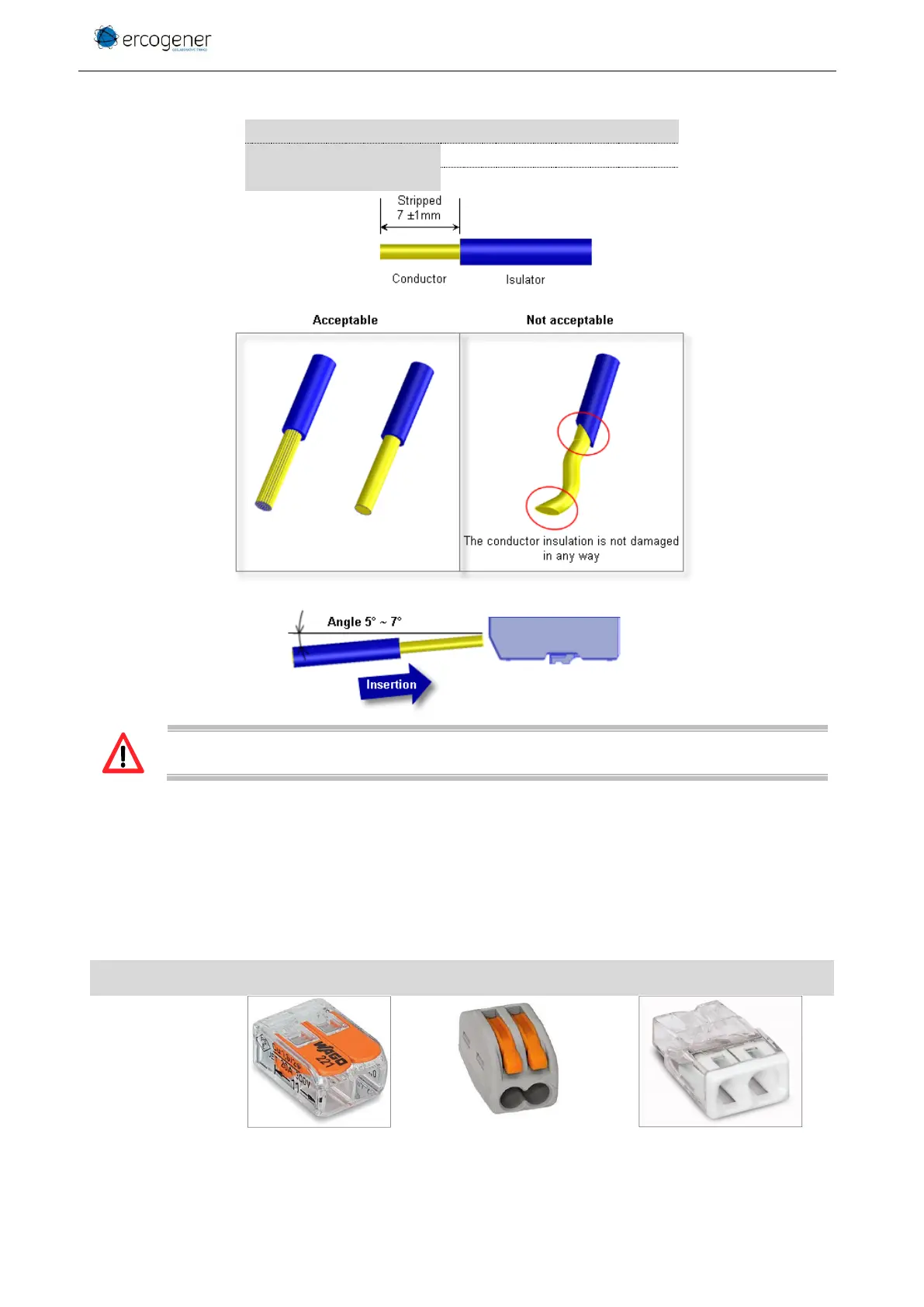

Table 20 : Preparation of wire
The wires extraction is strongly NOT recommended; in case of absolute necessity, they have
to be pulled gently.
3.6.1.1 Connection with intermediate connector
Using rigid wires of 0.75mm² diameter and 5 cm length between the GenPro 425e and the connector allows
an easy connection and minimizes the risks of interference.
The outgoing wires can have a diameter less important.
Example of possible references:
0.2 à 4 mm² / 24 à 12 AWG
0.1 à 2.5 mm² / 28 à 12 AWG
0.5 à 2.5 mm² / 18 à 14 AWG
