ergoline ergoselect 100 - SETUP AND MAINS CONNECTION; Controls and Indicators Overview

- 11 -
setuP anD mains ConneCtion

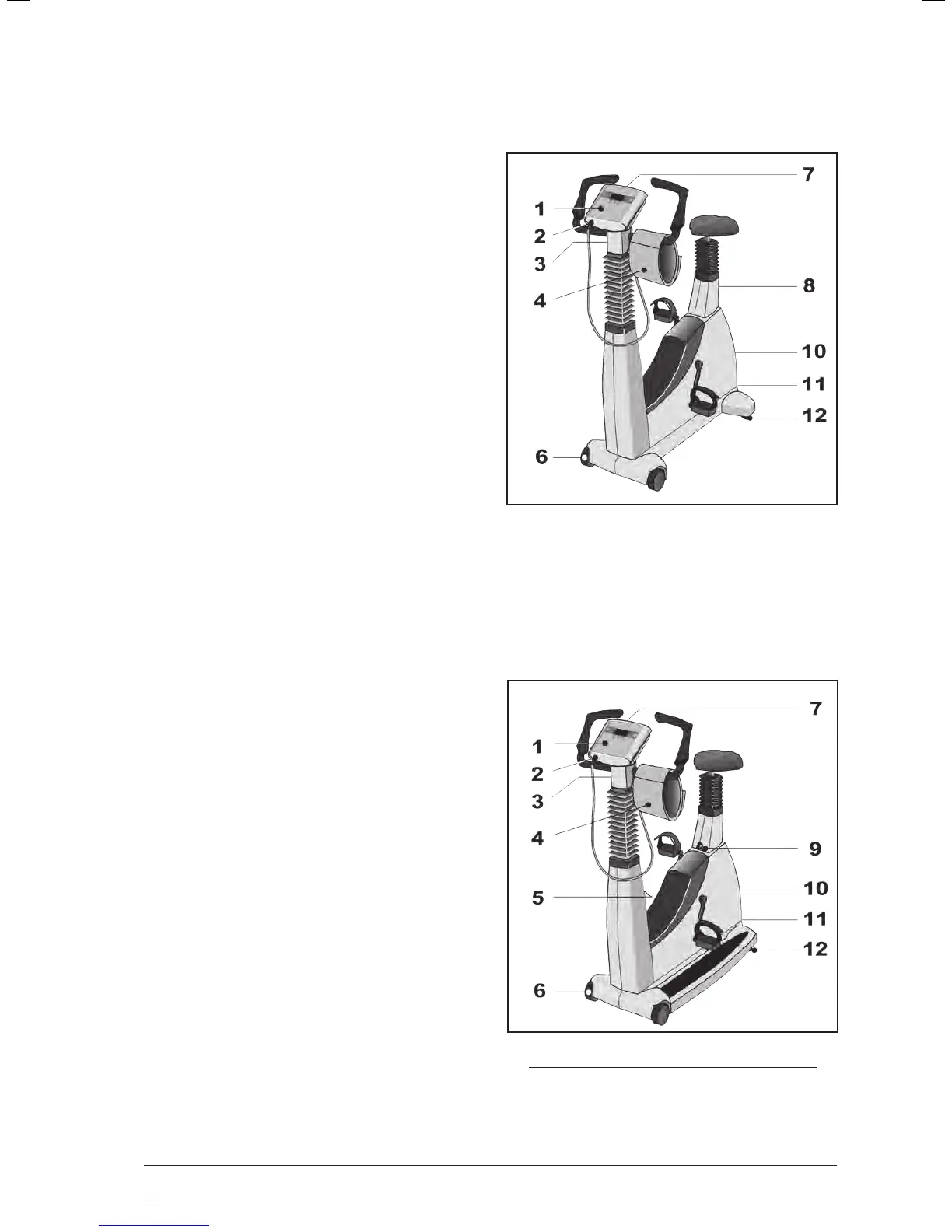

Controls anD inDiCators
1 Control terminal (model P or model K)
2 Blood pressure cu connection (option)
3 Adjustment of the handlebar angle
4 Blood pressure cu
5 Adjustment of the handlebar height
(ergoselect 200 only)
6 Castors
7 Speed display (RPM) for patient
8 Adjustment of the saddle height (ergoselect 100 only)
9 Digital saddle height indication
(ergoselect 200 only)
10 Power switch (green button)
11 Sockets for power cord and connection cables
(underside of ergometer)
12 Levelling devices to adjust the ergometer to uneven
oors
ergoselect 100 - controls, connections and indicators
ergoselect 200 - controls, connections and indicators
