PreParinG the Patient
aDjustinG the saDDle anD the hanDleBar
On the ergoselect 100, you adjust the saddle height manu‑
ally with a clamping lever. On the ergoselect 200, the
saddle height is electrically adjusted with the correspond‑
ing keys on the control terminal (the display below the
saddle indicates the saddle height).
With the pedal in the bottom position, the angle between
the axis formed by the upper body and the thigh should be
approximately 10°.
Set the handlebar to a position where the patient sitting
upright on the saddle can reach it easily.
To do so, open clamping lever 1 and set the handlebar to a
suitable angle.
On the ergoselect 200, the height of the handlebar can ad‑
ditionally be adjusted with clamping lever 2 ‑ the horizon‑
tal bar should be approximately at the samel level as the
saddle.

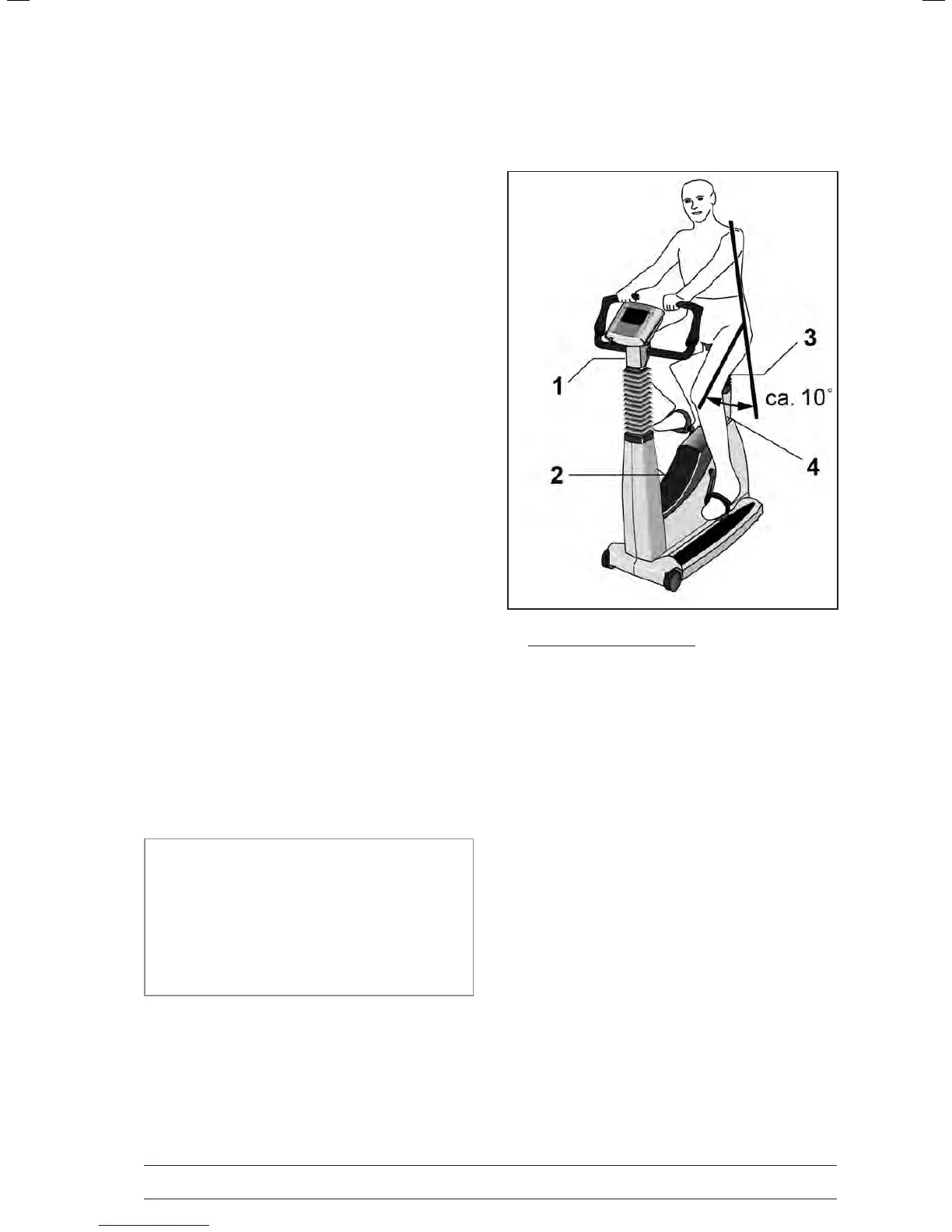

adjusting saddle and handlebar
1 Adjustment of the handlebar angle
2 Adjustment of the handlebar height
(ergoselect 200 only)
3 Adjustment of the saddle height (ergoselect 100 only)
4 Saddle height display (ergoselect 200 only)
Note
• Tighten the clamping levers only as far as necessary, NOT
with maximum force.
• Lubricate the clamping lever threads quarterly at minimum,
using a suitable lubricant (e.g. OKS470).
