erGometry
The ergometer is controlled by an internally stored proto‑
col.
Pressing the "Ergometry" key will display the test protocol
used last.
Press the "Start" key to re‑start the protocol, or press the
"Select" key to display the protocol parameters or to switch
to another test protocol.
There are ve xed protocols (protocols 1 ‑ 5, see
Appendix), whereas protocols 6 ‑ 15 are user‑program‑
mable.
With the arrow keys you can display the test protocol.
With "Select" you conrm the selection.
The selected exercise test is started with the "Start" key, a
blood pressure measurement at rest may precede the test
(see "Settings").
The display changes to the exercise test screen, where load
and heart rate are represented both by numeric values and
waveforms.
When the basic load appears on the display (after approx.
15 seconds or upon termination of the blood pressure
measurement) and the patient's RPM indicator blinks, the
patient should start pedalling.
The internal protocol will now control the entire exercise
test ‑ the display always indicates the current values.
initial screen of an exercise test
ErgometryWHO
Saddle
Saddle
Start Select
Makesettings
ProtocolWHO
Basic Load 25 Watt
Stage Time 2 min
Load Stage 25 Watt
Recovery Load 25 Watt
Recovery Time 10 min
NIBP Lead Time 60 sec
Select
Selectprotocol

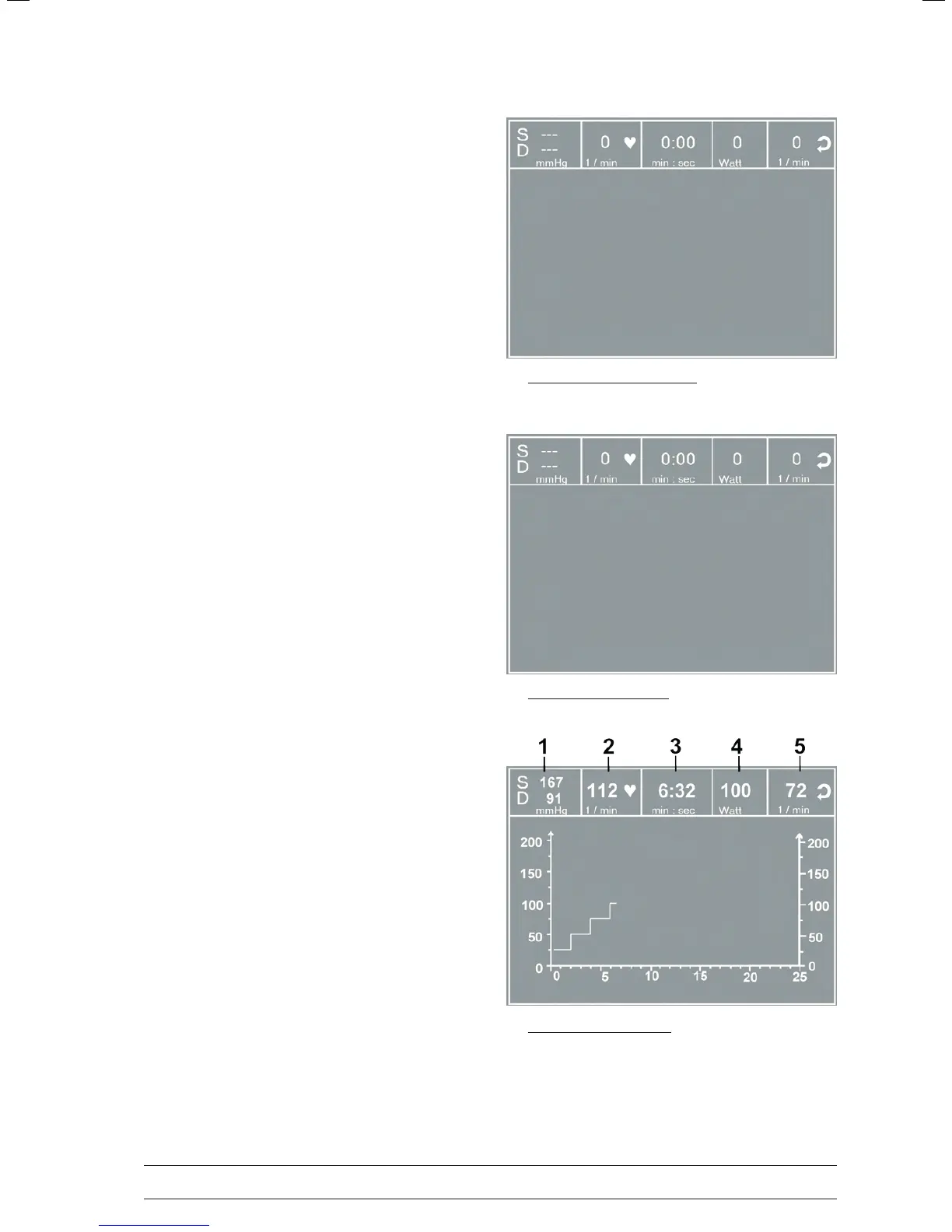

Exercise test running
display during exercise test
1 most recent BP value (systolic/diastolic pressures) or cu
pressure during ination
2 heart rate (BPM)
3 duration of exercise test (minutes:seconds)
4 current load in watts
5 pedal speed (RPM)
selecting the test protocol
