ERVOR G06 - Internal Component View

Page 13
Manual G06
Edition: 10/2015 - rev A
ERVOR (SCA) - 6, Rue Désiré Granet - Z.I. du Val d'Argent - 95100 ARGENTEUIL FRANCE
 (33) 01 34 11 50 00  (33) 01 34 11 50 10
Web : www.ervor.com - Email : info@ervor.com

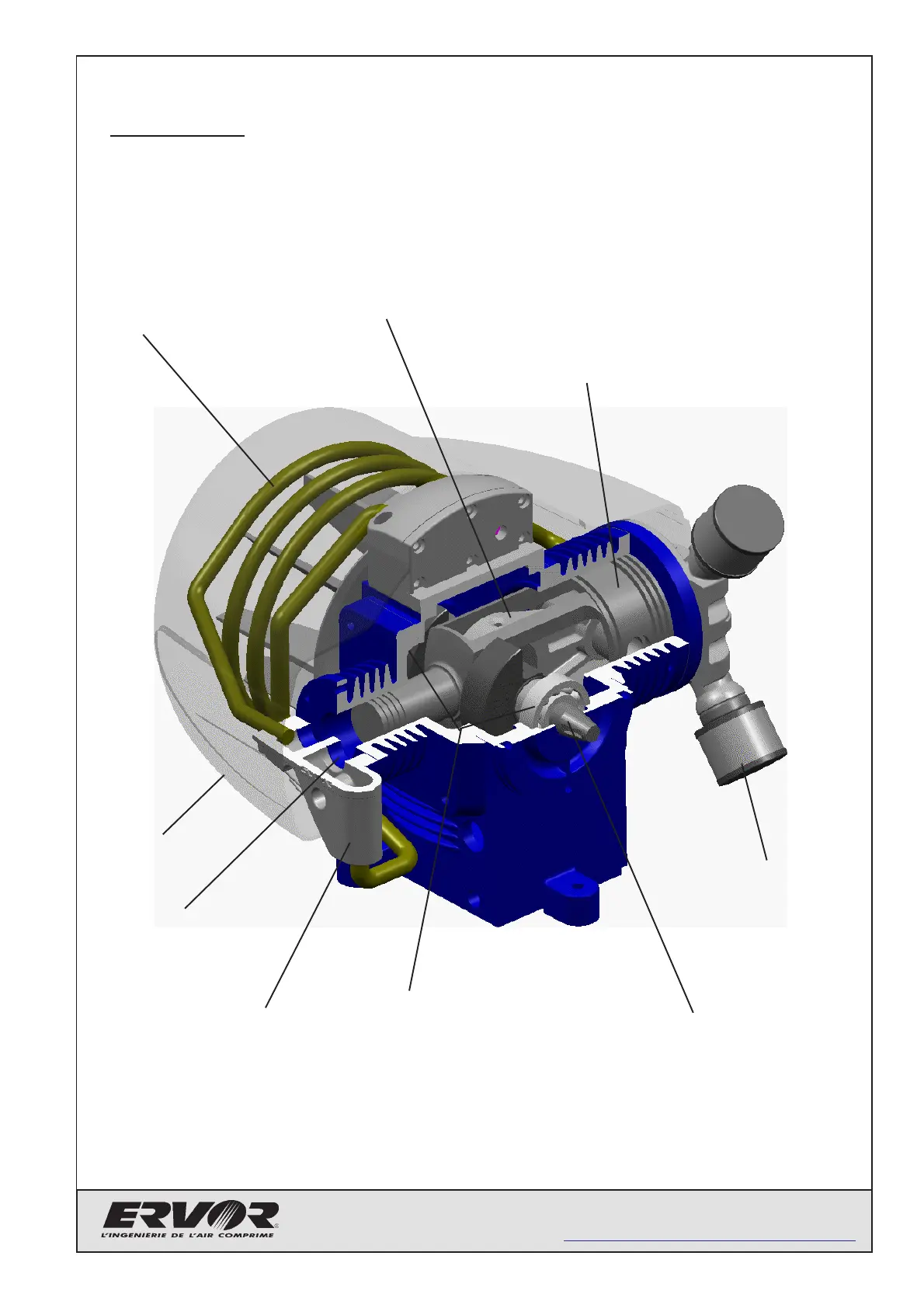

Internal view :
Crank shaft
Double
bearing
Monobloc piston
Connecting rod
with bronze bushing
Copper coil
between stages
Fan cowling
Valves
Pulsation damper
Air filter
