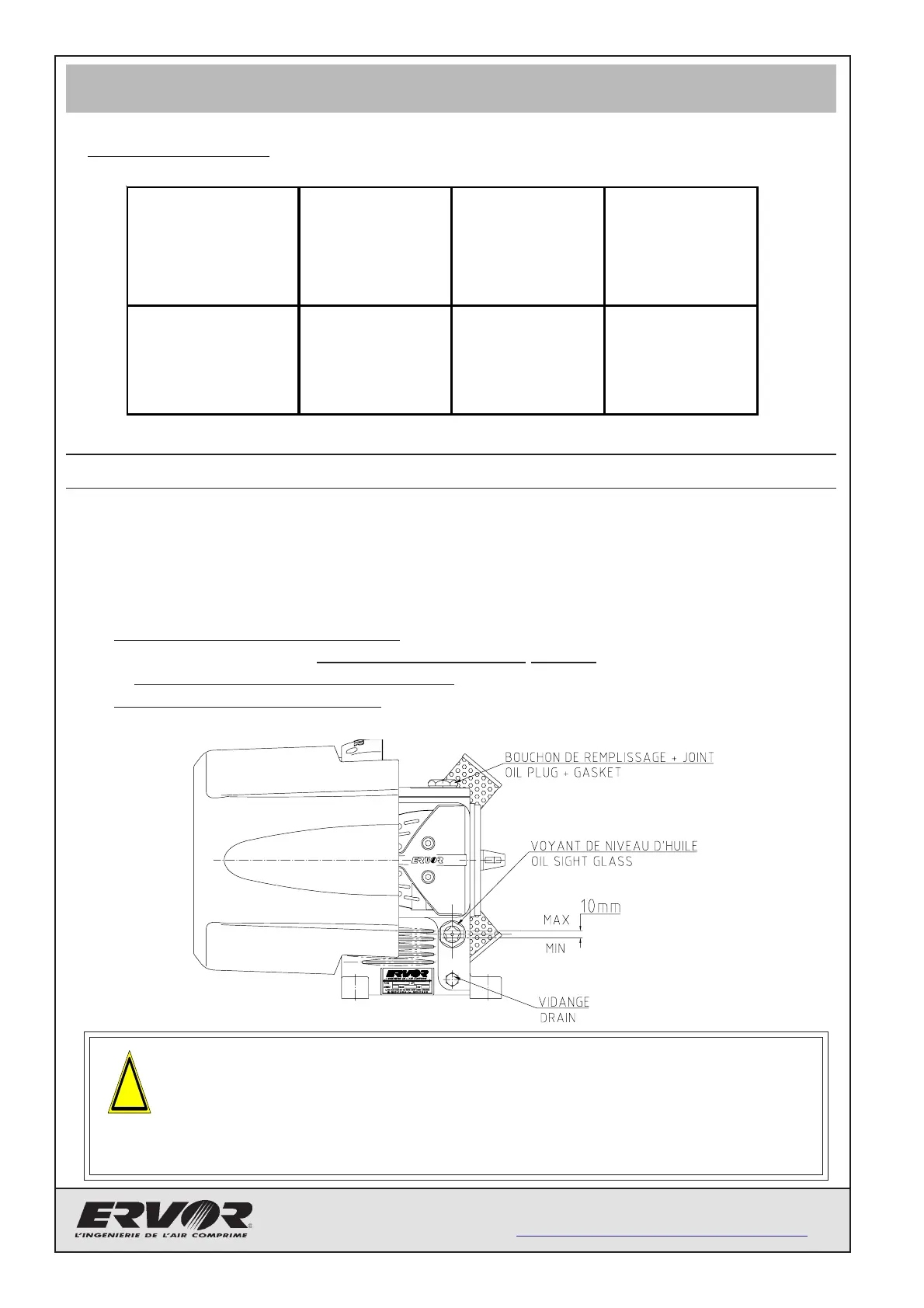

10 - MAINTENANCE
Tightening torque :
10 - A - COMPRESSOR LUBRICATION
The G06 compressor has oil splash lubrication which gives the following advantages.
- Dispersion of oil throughout the entire compressor and avoidance of damage due to leaks
or clogging of the oil pipe.
However, it is imperative :
- to maintain the oil level in the casing above the minimum level
- that the compressor runs over its minimum speed of 600 rpm.
- to respect the indicated direction of rotation (see chapter "Direction of Rotation")
- to respect a max inclination of 30° on the two axis.
WASTE OIL DISPOSAL MUST BE IN ACCORDANCE WITH COUNTRY
LEGISLATION.
M6 M8 M10
Thread diameter
(
mm)
Fixing lugs
Cooling coil
Fan
Manifold LP/HP
Bearing
Casing cover
Projector
Fan Coupling
Cylinder LP/HP
Tightening torque
(Nm)
For normal quality 8.8
Tensile strength
800 N/mm
2
mini
