6 - INSTALLATION
Compressor room : The location must be clean, with good ventilation.
The air intake of the compressor must be placed at a minimum distance of 200 mm from any wall or
any other machine for efficient cooling of the compressor. Install the compressor on a mounting
plate or on a solid floor.
IF THE COMPRESSOR ROOM IS TOO SMALL, TEMPERATURE
REGULATION SHOULD BE INSTALLED. THE TEMPERATURE OF THE
COMPRESSOR ROOM SHOULD NOT EXCEED 40°C AT ANY TIME.

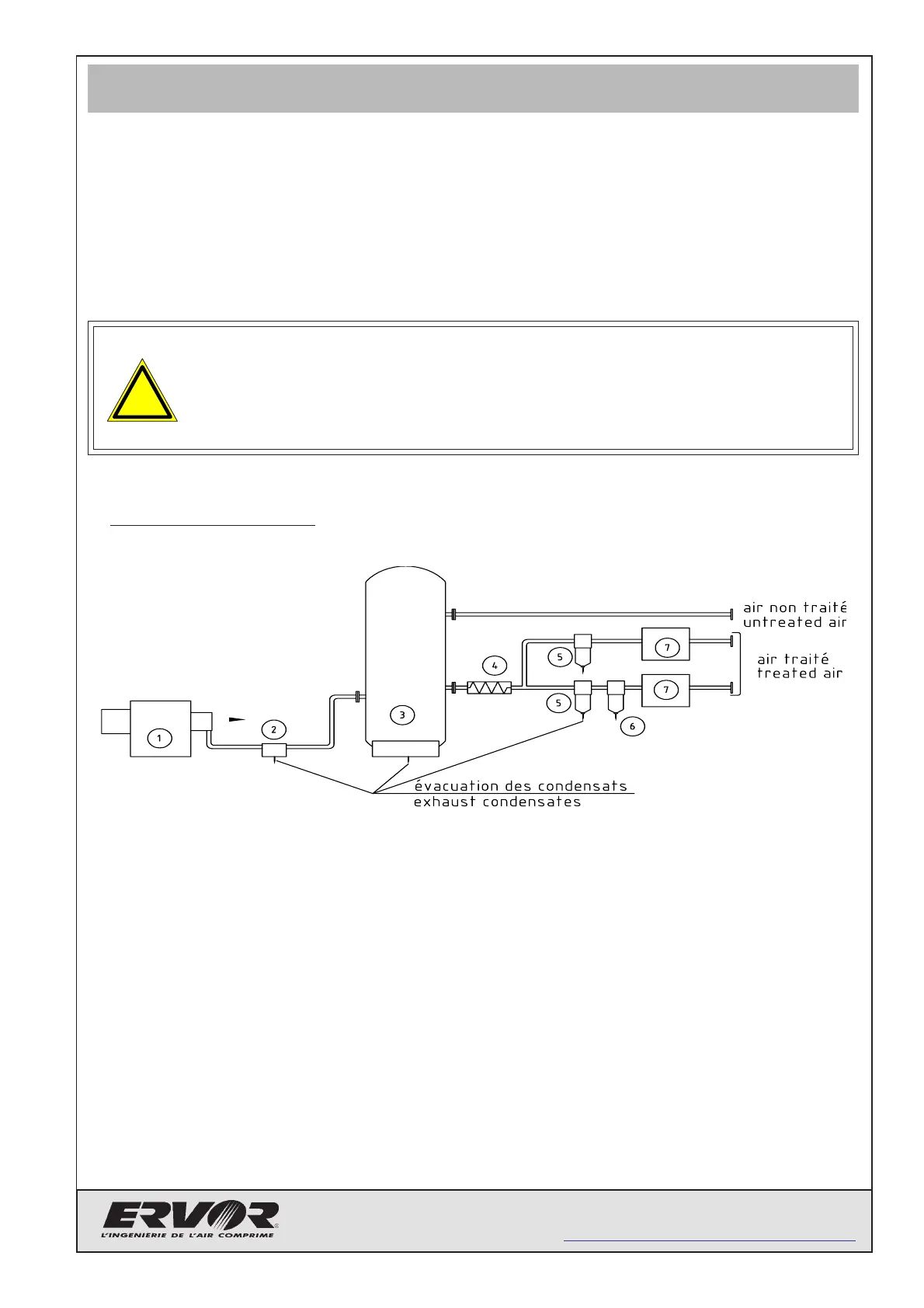

Installation example :
-1 Compressor
-2 Check valve / separator
-3 Air receiver
-4 Cooling
-5 Microfilter
-6 De-oiler filter
-7 Refrigeration drier
!
