7 - C - 3 - DIRECTION OF ROTATION
The G06 compressor has oil splash lubrication. To limit the oil consumption you must
respect the direction of rotation indicated by the arrow on the compressor.

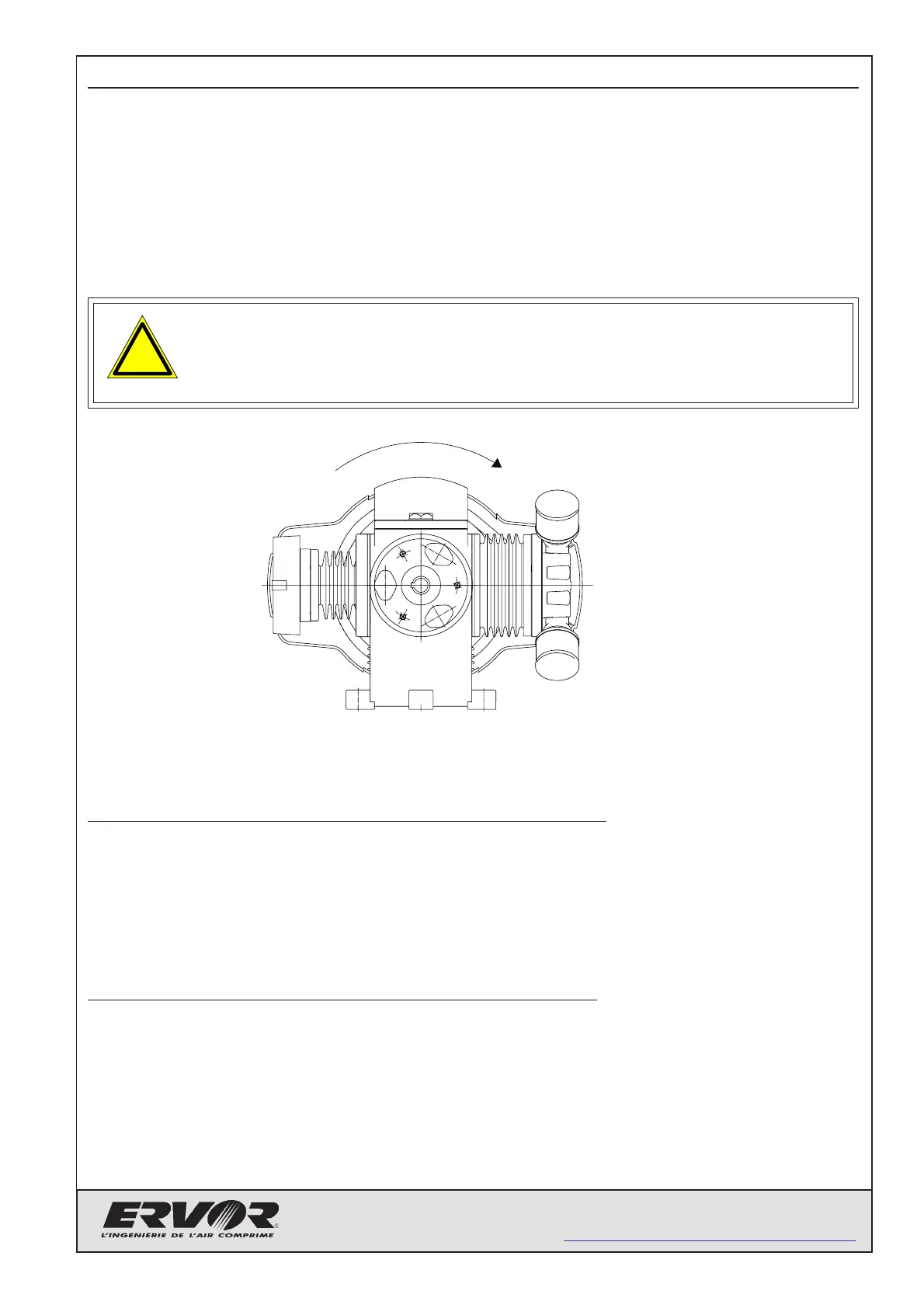

It is preferable to generate the oil mist on the high pressure side. The observer in front of
the exposed compressor drive shaft will see the rotation of the coupling according to the figure
below.
THE OBSERVER IN FRONT OF THE EXPOSED COMPRESSOR DRIVE
SHAFT.
DRIVING BY AN ELECTRIC MOTOR - THREE-PHASE SUPPLY
When the power supply of the motor is connected, check the direction of rotation.
The direction of rotation of an electric motor can be reversed by inverting two of the supply
wires to the terminal box of electric motor.
DRIVING BY A COMBUSTION ENGINE - PETROL OR DIESEL
The combustion engines used for driving compressors are not reversible.
Contact us for any problem
!
