0-5574 2T-1 INTRODUCTION
CutSkill 60
OPERATING MANUAL
SECTION 2 TORCH:
INTRODUCTION
2T.01 Scope of Manual
This manual contains descriptions, operating instruc-
tions and maintenance procedures for the CutSkill 60A
Plasma Cutting Torch. Service of this equipment is
restricted to properly trained personnel; unqualified per-
sonnel are strictly cautioned against attempting repairs
or adjustments not covered in this manual, at the risk
of voiding the Warranty. Read this manual thoroughly.
A complete understanding of the characteristics and
capabilities of this equipment will assure the dependable
operation for which it was designed.
2T.02 Specifications
A. Torch Configurations
1. Hand Torch, Model CutSkill 60A
The hand torch head is at 75° to the torch handle.
The hand torch includes a torch handle and torch
trigger assembly.
A-13670
232.55mm
82.7mm
24.89
mm

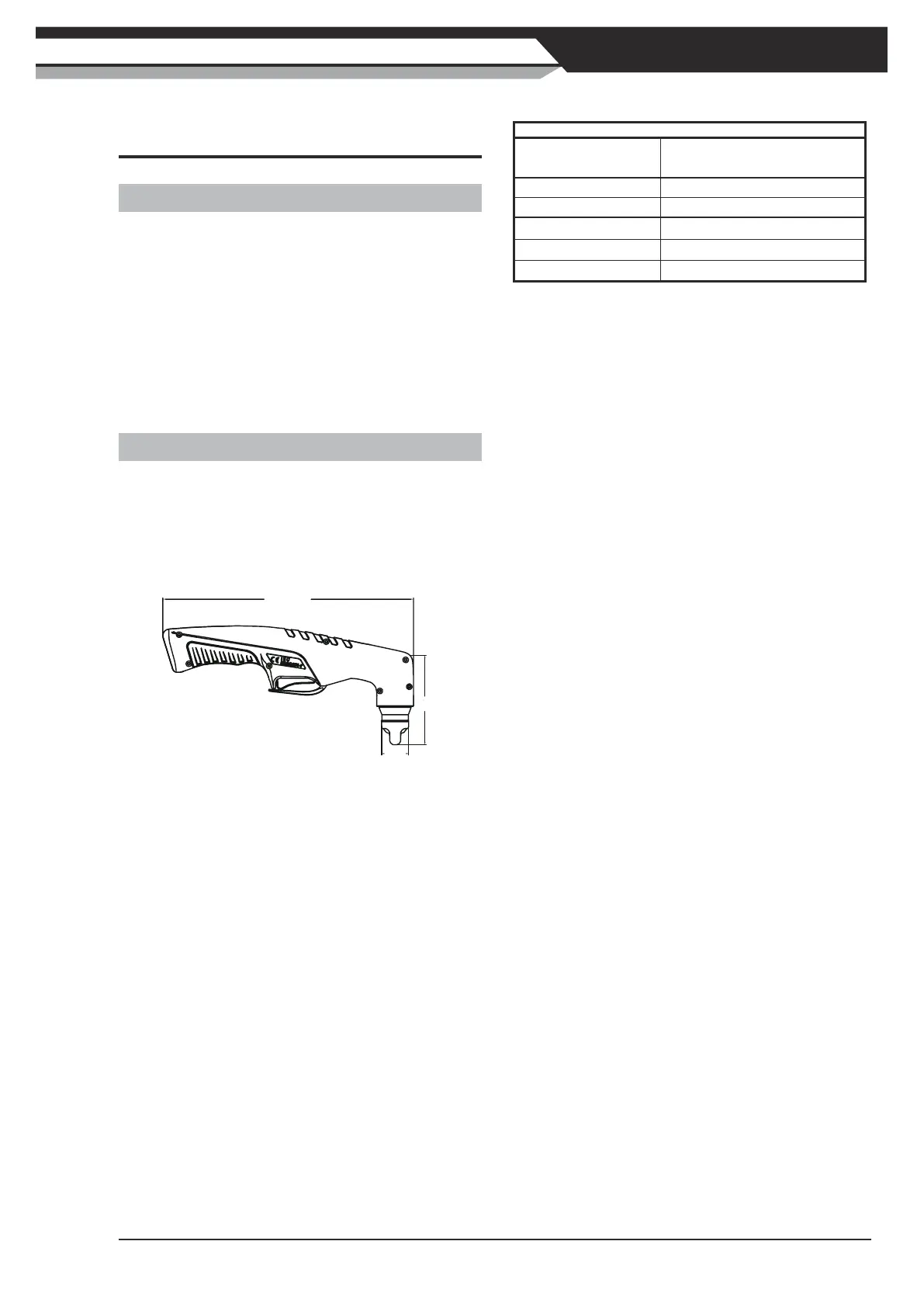

Figure 2T-1: CutSkill 60A Torch
B. Torch Leads Lengths
CutSkill 60A Plasma torch length is 5m.
C. Torch Parts
Electrode, Tip, Shield Cup, Gas Diffuser, Standoff
Guide
Torch for CutSkill 60 system is fitted with 1.1mm tip.
D. Parts - In - Place (PIP)
Torch Head has built - in switch
12 vdc circuit rating
E. Type Cooling
Combination of ambient air and gas stream through
torch.
F. Torch Ratings
CutSkill 60A Torch Ratings
Ambient
Temperature
40 °C
Rated Current 60 Amps
Duty Cycle 60%
Rated Voltage 500 V
Operating Pressure 400-600 kPa
Gas Flow 110 - 150 LPM
Table 2T-1: CutSkill 60A Torch Ratings
