0-5574 4-3 OPERATION
4.02 Sequence of Operation
The following is a typical sequence of operation for this power supply. Refer to Appendix 1 for block diagram.
1. Plug the input power cord into an active circuit.
2. Switch the ON / OFF switch on the rear panel of the power source to ON position. Ensure the LCD illumi-
nates.
3. Select trigger mode between 2T and 4T. Refer to 2.05.3 for details.

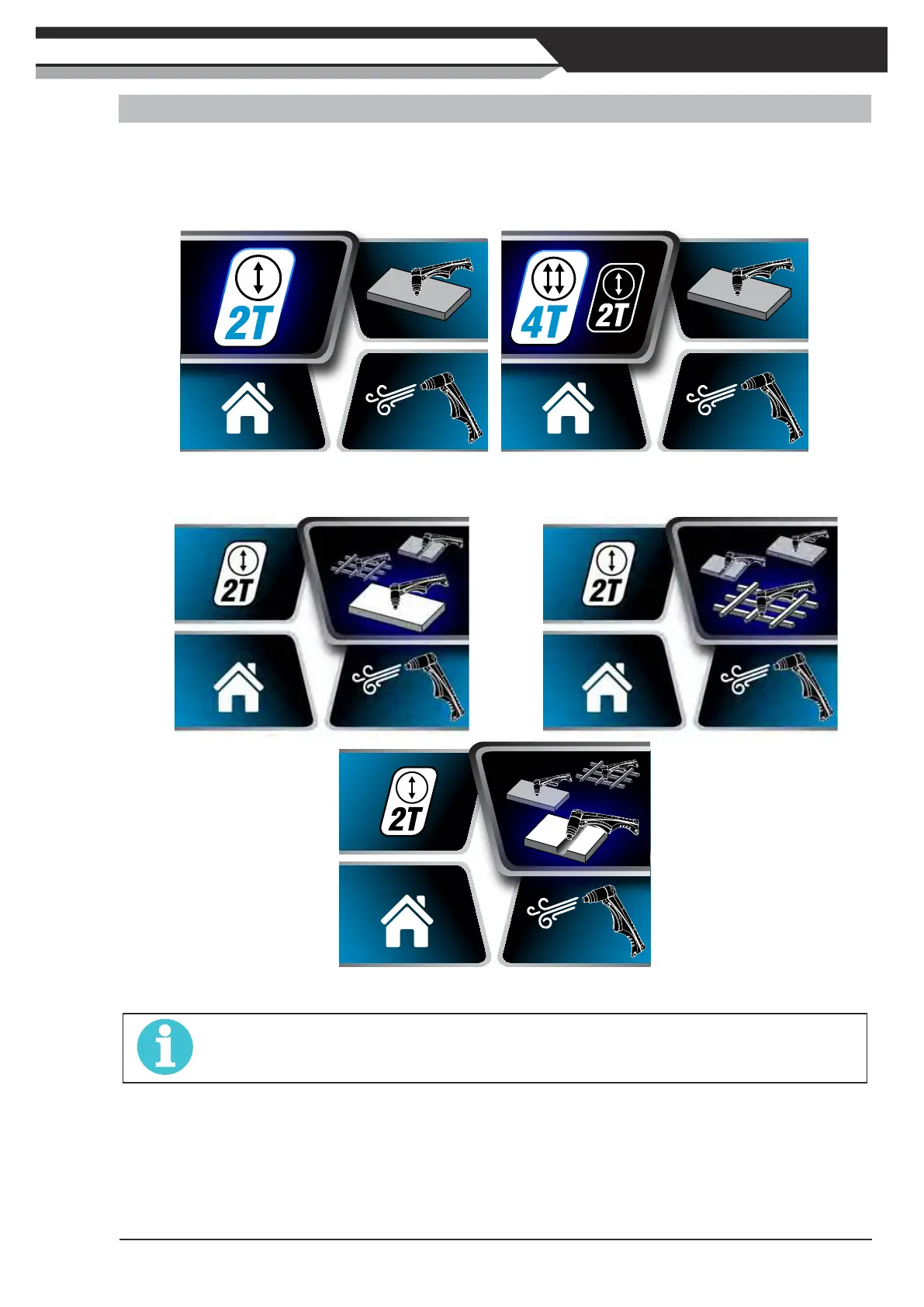

Figure 4-4: Selecting Trigger Mode
4. Select cutting mode among Plate Mode, Gouging Mode and Grid Mode. Refer to 2.05.3 for details.
Figure 4-5: Selecting Cutting Mode
NOTE
Please note that when trigger mode is set at 4T, both gouging mode and grid cutting mode are unavailable.
5.Checkairpressure.PresstheControlKnobandentergaspurgemenu(refertoSection2.05.3)toturn
on gas purge function. The gas flows and the screen displays air pressure. Make sure the pressure is in
the correct range from 410 kPa to 550 kPa. Please note the power source has set gas pressure to 460
kPaasdefaultvalue.PresstheControlKnobagaintostopgasow.
6.SelectHomeiconandpresstheControlKnobtoexitthemenuscreen.
7. Adjust output current value via control knob on the front control panel (refer to Section 2.04.2).
8. Wear protective clothing, including welding gloves and appropriate eye protection (see Table 1-1).
