ESAB CIGWELD CutSkill 60 - Work Lead Connection

CutSkill 60
OPERATING MANUAL
0-5574 3-5 INSTALLATION
3.05 Work Lead Connection
Connect the Work Lead to the power supply and the work piece.
1. Attach the male dinse plug of the work lead to the dinse socket on the front panel (refer to 2.04.4) as shown
in Figure 3-4. Push in and turn clockwise for a secure and sound electrical connection.
!
CAUTION
Loose terminal connections can cause overheating and result in the male plug being fused in the Dinse terminal.
2. Connect the work clamp to the work piece or cutting table. The working area must be free from oil, paint and
rust. Connect only to the main part of the work piece. Do Not connect to the part to be cut off.
!
CAUTION
Before connecting the work clamp to the work piece make sure the mains power supply is switched o.
Work Cable and Clamp
A-13685
Work Piece
Dinse Plug

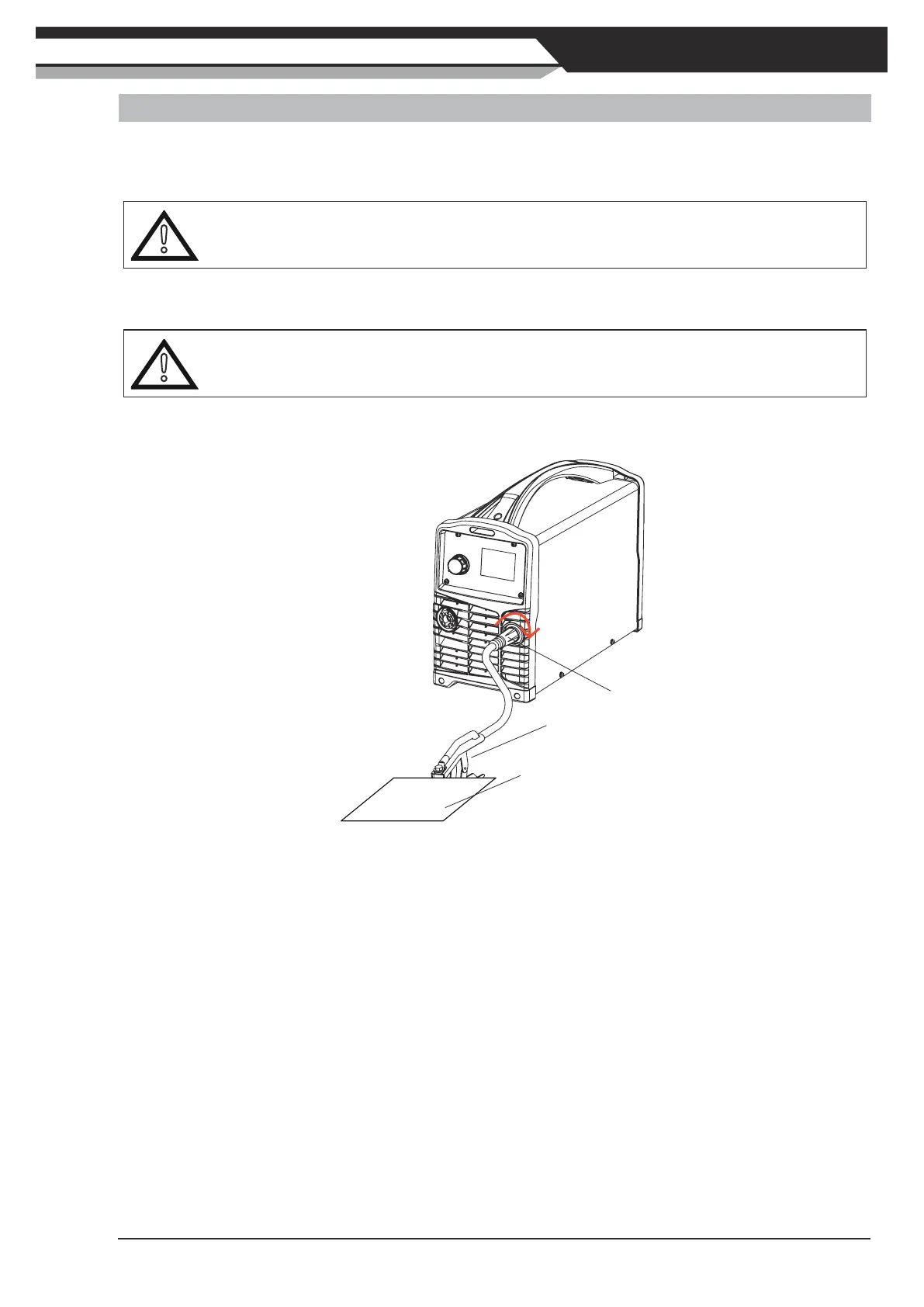

Figure 3-4: Connecting Work Lead
