CutSkill 60
OPERATING MANUAL
INSTALLATION 3-2 0-5574
3.03 Primary Input Power Connections
!
CAUTION
Check your power source for correct voltage before plugging in or connecting the unit. The primary power source, fuse, and
any extension cords used must conform to local electrical code and the recommended circuit protection and wiring require-
ments as specied in Section 2.
Power Cord and Plug
This power supply includes an input power cord and plug suitable for 240 VAC, 15 Amp.
240V AC Power Source
A-13886
Note: For maximum duty cycle to be achieved,
Supply Plug and Lead must be upgraed to
4mm Supply Lead & 20A Supply Plug.
Refer to Specification Table on Page 2-1.
2

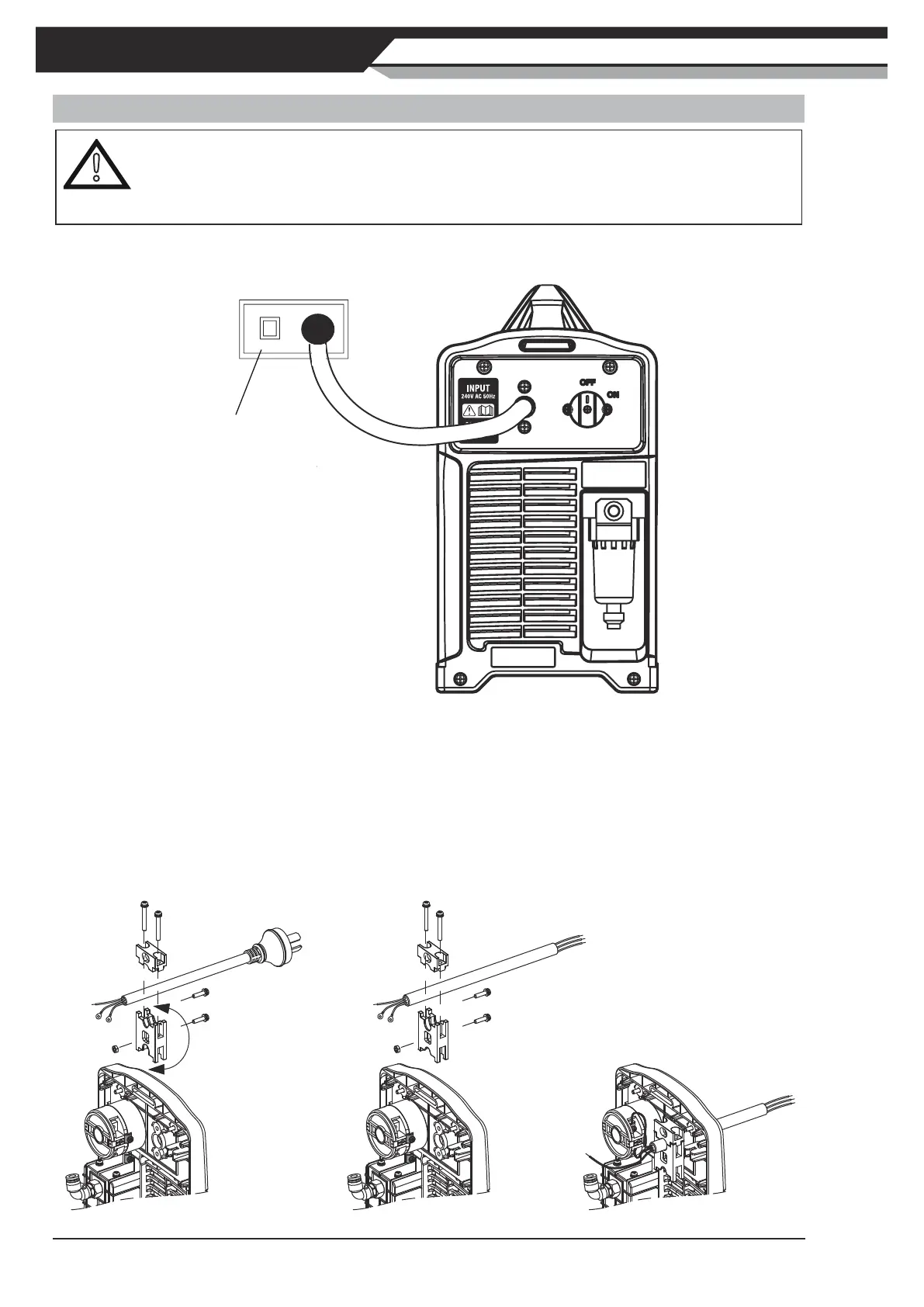

Figure 3-1: 240V AC Power Source
When the power source input voltage is over or under the safe operating range, the Voltage Error Screens will
be displayed, at the same time the current output will be cut off.
If the power supply voltage continually goes beyond the safe work voltage range it will shorten the power
source life-span.
Replacement of Power Cord on Rear Panel
A-13892
To Next Page
