CutSkill 60
OPERATING MANUAL
0-5574 2-5 INTRODUCTION
NOTE
For a secure seal, apply thread sealant to the tting threads, according to manufacturer's instructions. Do Not use Teon tape
as a thread sealer, as small particles of the tape may break o and block the small gas passages in the torch.
7. Water Catchment
A water catchment is installed to collect water in the compressed air.
8. Water Release Valve
Press the water release valve upward to release water from the water catchment. Use the spanner supplied in
system package to detach the water catchment from the unit for cleaning.

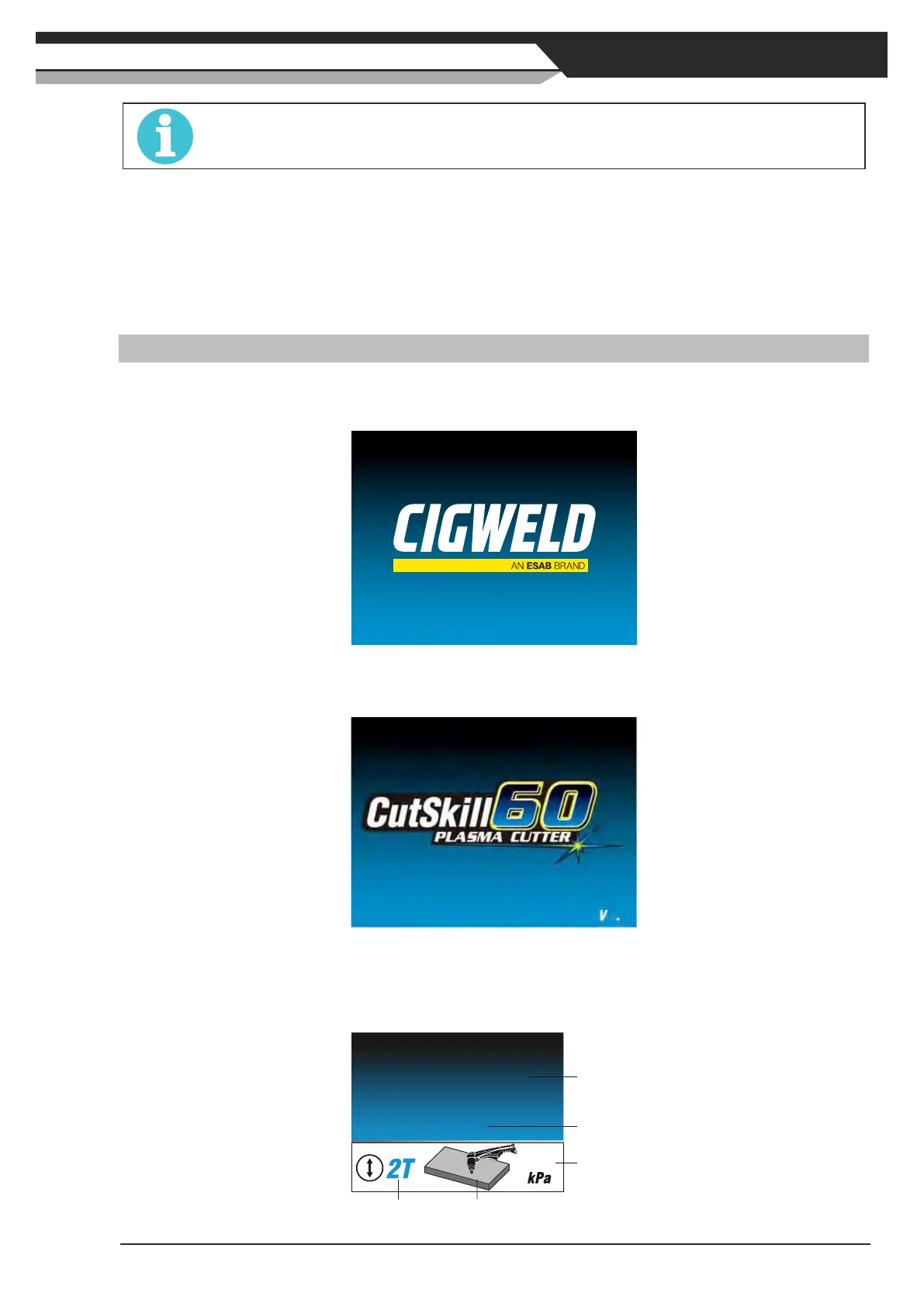

2.06 LCD Screen Operation
1. Welcome Screen
Welcome Screen will display for 3 seconds when the power source is turned on.
Figure 2-5: Welcome Screen
Then Model Name Screen displays for 3 seconds.
Figure 2-6: Model Name Screen
2. Main Screen
Main Screen displays setting of cutting current,voltage, trigger mode, cutting mode and output air pressure.
460
60A
120V
Current
Voltage
Output Air Pressure
Trigger Mode
Cutting Mode
Figure 2-7: Main Screen
